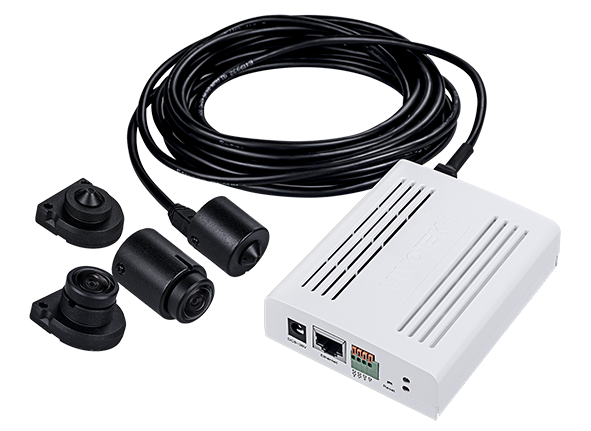

Vivotek VC9101 5MP Split-type Camera System, H.265, 30fps, Face Check, 3DNR, SNV
Quantity:
It requires CU9171-H, CU9171-HF, CU9183-H or CU9183-HF as lens options.
- Discreet, Recessed-Mount Camera Units
- Supports 1 Camera Unit
- 4 Camera Options: 4MP WDR Pinhole, 4MP WDR Pinhole Flat, 5MP WDR Fisheye, 5MP WDR Fisheye Flat
- Two-Way Audio on Video Core
- WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
- Face Check - Smart Motion Detection
- Video Rotation for Corridor View
- Trend Micro IoT Security
VIVOTEK’s VC9101 is a high-performance split-type camera system. Its discreet design, rich functionality and ability to be flexibly integrated into even the tightest spaces, make this camera ideal for indoor or covert surveillance of ATMs, banks, stores and offices.
The VC9101 features a separate camera unit (CU series) and video core design, enabling the tiny camera unit (with 5-meter long cable) to be easily and flexibly installed into any decoration or interior design, thus preserving stylish appearances while dramatically saving on installation time and cost.
VC9101 video core has a powerful processor which can stream a 5MP 360 degree fisheye image or a 4MP 16:9 image. Furthermore, the VC9101 is equipped with CNN (Convolutional Neural Network) hardware accelerator which allows the deep learning VCA be more efficient and powerful. VC9101 also provides deep learning based face detection suitable for most installation scenarios.
The VC9101 camera core can support one camera unit and is designed to work in perfect harmony with a choice of 4 different types of camera units, CU9171-H, CU9171-HF, CU9183-H and CU9183-HF. The whole system incorporates a number of advanced features found in VIVOTEK cameras, including WDR Pro, SNV, Smart Stream III technology, 3DNR, and security features like secure boot, signed firmware, and Trend Micro cybersecurity.
The VC9101 features a separate camera unit (CU series) and video core design, enabling the tiny camera unit (with 5-meter long cable) to be easily and flexibly installed into any decoration or interior design, thus preserving stylish appearances while dramatically saving on installation time and cost.
VC9101 video core has a powerful processor which can stream a 5MP 360 degree fisheye image or a 4MP 16:9 image. Furthermore, the VC9101 is equipped with CNN (Convolutional Neural Network) hardware accelerator which allows the deep learning VCA be more efficient and powerful. VC9101 also provides deep learning based face detection suitable for most installation scenarios.
The VC9101 camera core can support one camera unit and is designed to work in perfect harmony with a choice of 4 different types of camera units, CU9171-H, CU9171-HF, CU9183-H and CU9183-HF. The whole system incorporates a number of advanced features found in VIVOTEK cameras, including WDR Pro, SNV, Smart Stream III technology, 3DNR, and security features like secure boot, signed firmware, and Trend Micro cybersecurity.
Benefits
Discreet Appearance
The smaller camera form factor enabled by the split core/camera design also allows a less obtrusive appearance where there are aesthetic concerns or to reduce the risk of opportunistic tampering or vandalism.
Flexible Selection for Different Scenarios
With a choice of four WDR camera units: the CU9171-H(F) pinhole type, and the CU9183-H(F) fisheye type for 180° Panoramic View, the VC9101 provides unprecedented flexibility. The split-type camera system can be used to monitor spaces such as ATM's, elevators, a single large space, or to provide different types of views, among other possible usage scenarios.
Greater Coverage with Simplified Installation
The camera unit that can be connected to the core unit can be positioned up to 5 meters away, enabling the tiny camera unit to be easily and flexibly installed into any decoration or interior design.
Easier Maintenance and Upgrades
The modular design of the VC9101 makes removing individual camera units for maintenance or replacement extremely easy. Moreover, upgrades can also be easily accomplished, since they need only involve swapping out of a camera unit and not replacement of the entire system.
Specifications - Video Core
- Model
- VC9101
System Information
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 8 GB
- RAM
- 2 GB
- On-board Storage
- Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Video
- Compression
- H.265, H.264, MJPEG
- Video Source
- 1 VIVOTEK camera unit
- Maximum Streams
- 3 video streams (Up to 8 configurable profiles)
- Video Streaming
- Adjustable resolution, quality and constant bit rate control, Smart Stream III
- Image Settings
- General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation (CU9171-H(F) only)); Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve (CU9171-H(F) only)), defog, 3DNR, HLM, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control) AE speed adjustment, WDR; Privacy mask; Pixel calculator
- Display Mode
- Client dewarping (CU9183-H(F) only)
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramic, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions
Local dewarping (CU9183-H(F) only)
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramic, 1R One Region, 4R Four Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
Audio
- Audio Capability
- Two-Way Audio (full duplex)
- Compression
- G.711, G.726
- Interface
- External microphone input
External line output
Network
- Users
- Live viewing for up to 10 clients
- Security
- Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, CSRF protection
- Protocols
- 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
- Smart Motion Detection
- Five-window video motion detection, face detection, time filter
Alarm and Event
- Alarm Triggers
- Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
- Alarm Events
- Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mbps Network/PoE connection
Audio line input
Audio line output
DC 12V power input
Digital input *1
Digital output *1 (12V, 50mA)
- LED Indicator
- System power and status indicator
- Power Input
- DC 12V, IEEE 802.3af PoE Class 0
Simultaneous Power Redundancy Supported
- Power Consumption
- Max. 8.5 W
- Dimensions
- 105 (W) x 84 (D) x 30 (H) mm
- Weight
- 190 g
- Safety Certifications
- EMC:
CE (EN55032, EN55024 Class B), FCC (FCC Part 15 Subpart B Class B),
RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B);
Safety:
UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471);
Environment:
IA:
BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
- Operating Temperature
- Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Humidity
- 90% RH (non-condensing)
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Included Accessories
- Packing Contents
- Quick installation guide, installation kit
Specifications - Camera Unit
- Model
- CU9171-H(F): Pinhole
- Image Sensor
- 1/2.7" Progressive CMOS
- Maximum Resolution
- 30 fps @ 2688x1520
- Focal Length
- f = 3.7 mm
- Aperture
- F2.5
- Field of View
- 93° (Horizontal)
48° (Vertical)
117° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Minimum Illumination
- 0.045 lux @ F2.5 (Color)
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- S/N Ratio
- 55.9 dB
- Dynamic Range
- 120 dB
- Dimensions
- CU9171-H: Ø 24 x 30 mm (Without cable)
CU9171-HF: 33 x 32 x 20 mm (Without cable)
- Weight
- CU9171-H: 19g
CU9171-HF: 43g
- Operating Temperature
- Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Humidity
- 90% RH (non-condensing)
Specifications - Camera Unit
- Model
- CU9183-H(F): Fisheye Camera
- Image Sensor
- 1/2.7" Progressive CMOS
- Maximum Resolution
- 30 fps @ 1920x1920
- Focal Length
- f = 1.22 mm
- Aperture
- F2.0
- Field of View
- 180° (Horizontal)
180° (Vertical)
180° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Minimum Illumination
- 0.035 lux @ F2.0 (Color)
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
- S/N Ratio
- 56.3 dB
- Dynamic Range
- 120 dB
- Dimensions
- CU9183-H: Ø 24 x 37 mm (Without cable)
CU9183-HF: 33 x 32 x 28 mm (Without cable)
- Weight
- CU9183-H: 28g
CU9183-HF: 52g
- Operating Temperature
- Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Humidity
- 90% RH (non-condensing)
DORI (EN 62676-4 Standard)
- Detect (25PPM/ 8PPF)
- CU9171-H(F): 77 m (252.6 ft)
CU9183-H(F): 24.3 m (79.7 ft)
- Observe (63PPM/ 19PPF)
- CU9171-H(F): 30.5 m (100.1 ft)
CU9183-H(F): 9.6 m (31.5 ft)
- Recognize (125PPM/ 38PPF)
- CU9171-H(F): 15.4 m (50.5 ft)
CU9183-H(F): 4.8 m (15.7 ft)
- Identify (250PPM/ 76PPF)
- CU9171-H(F): 7.7 m (25.3 ft)
CU9183-H(F): 2.4 m (7.9 ft)
