Vivotek ND8322P NVR
Vivotek FD8322P Banner
Network Camera Store is an Authorized Vivotek Reseller

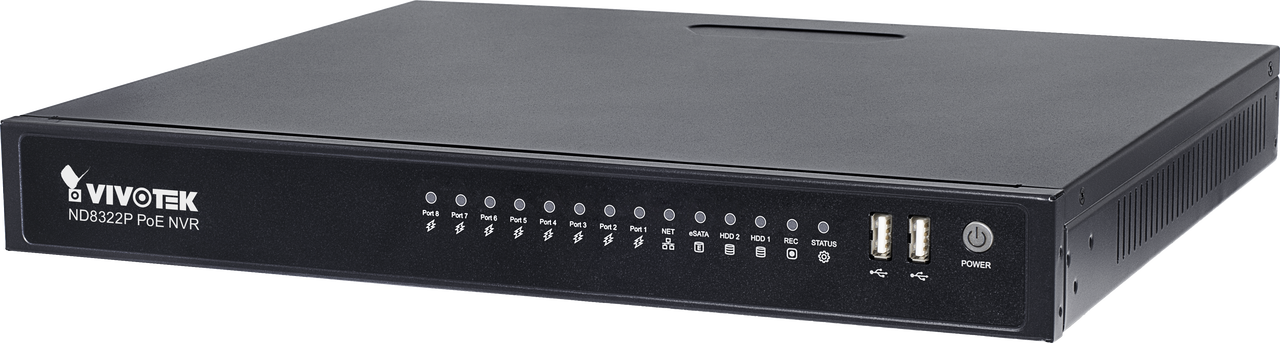

Vivotek ND8322P Front View
Vivotek ND8322P Rear View
Vivotek ND8322 Whats Included
Vivotek ND8322P Connections Diagram
Vivotek ND8322P 8-CH 8-PoE Port NVR

Vivotek

Vivotek ND8322P 8-CH 8-PoE Port NVR

$412.50
Discontinued
SKU: ND8322P
Link to Manufacturer's Page

Replaced by the ND9322P

Vivotek ND8322P Features

  • CPU: ARM Processor
  • Camera Compatibility: Full integration with VIVOTEK network cameras (we recommend 3MP resolution or less)
  • Maximum Number of Cameras/Channels: 8 channel selectable
  • Throughput: Max. 64 Mbps
  • Compression Styles: MJPEG, H.264 AVC
  • Video Export Formats: EXE
  • LiveView Display Layout: 8 Channel Multi Layout display: 1x1, 1x3 (Corridor Format), 2x2, 3x3, 1+5, 1+3, 1+1+3 (1P), 1+3+3 (1P)
  • Event Notification: Record, Email (Text), Email (Snapshot), FTP, Digital Output (Camera), Buzzer, PTZ Control (Go to Preset)
  • Alarm & Event Management: Motion Detection, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full, Camera Network Loss, DI, DO
  • Scheduled Recording: Yes
  • Event Recording: Yes
  • Manual Recording: Yes
  • Recording Frame Rate: Dependent on channels in use - 2560 x 1920 @ 30 fps (1-CH), 1920 x 1080 @ 120 fps (4-CH), 1280 x 720 @ 240 fps (8-CH)
  • Remote Access with PC Based Web Browser: Yes
  • Mobile App Support: iViewer for iOS & Android
  • PTZ Controls: Panel Control, Direction Control, Home, Iris, Preset, Patrol (Group)
  • Playback Features: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
  • Hard Drive Bays: 2 x 3.5" HDD
  • Max TB per HD Bay: 6 TB
  • USB Ports: Front: 2 (USB 2.0) & Back: 1 (USB 2.0)
  • Ethernet Ports: 1 x RJ-45 10/100/1000Mbps Ethernet interface
  • Display Port(s): 1 x HDMI, 1 x VGA
  • PoE Ports: 8x 802.3at/af Compliant PoE Ports (Total Max. 80W)
  • Dimensions (W x H x D): 360 mm (W) x 311 mm (D) x 44 mm (H)
  • Weight: 2.7 kg / 5.95 lb (without HDD)
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Operating Humidity: 0 ~ 95%
  • Power Source / Consumption: DC56V 2.5A / Max. 120 W
  • Warranty: 2 years
  • What's Included: Power Adapter, Power Cord, Quick Installation Guide, 16 x H.D.D. Screws, 4 x H.D.D. Brackets, 1 x USB Mouse, 2 x SATA Cables, User's Manual, Quick Installation Guide (QIG), Installation Wizard 2

Vivotek ND8322P Overview

VIVOTEK ND8322P is a Linux embedded 8-CH standalone NVR with 8-port 802.3at/af Compliant PoE, allowing connection with PoE cameras for a max. 80 W power supply. ND8322P also features "One Button Setup" with its plug- &-play and auto-setup functionality, making this advanced unit surprisingly simple to install, and suitable for any small-scale video surveillance applications. Supporting HDMI and VGA local video output, users can control the GUI OSD interface via mouse & keyboard, eliminating the need for a separate PC to search video or to playback from the NVR. The new local display design - Auto Adaptive Stream will dynamically modify Stream 2 resolution of a camera to best fit the display resolution according to the layout type, resulting in an efficient display, while maintaining superb image quality. What’s more, ND8322P, featuring various I/O ports, such as eSATA port, alarm input/output, RS232, and RS485 provides users great flexibility of applications. With VAST CMS, users can set up IP surveillance system with ease. For remote and mobile access, VIVOTEK also provides iViewer, for both iOS and Android handheld devices, enabling users to monitor live video anytime, anywhere.
