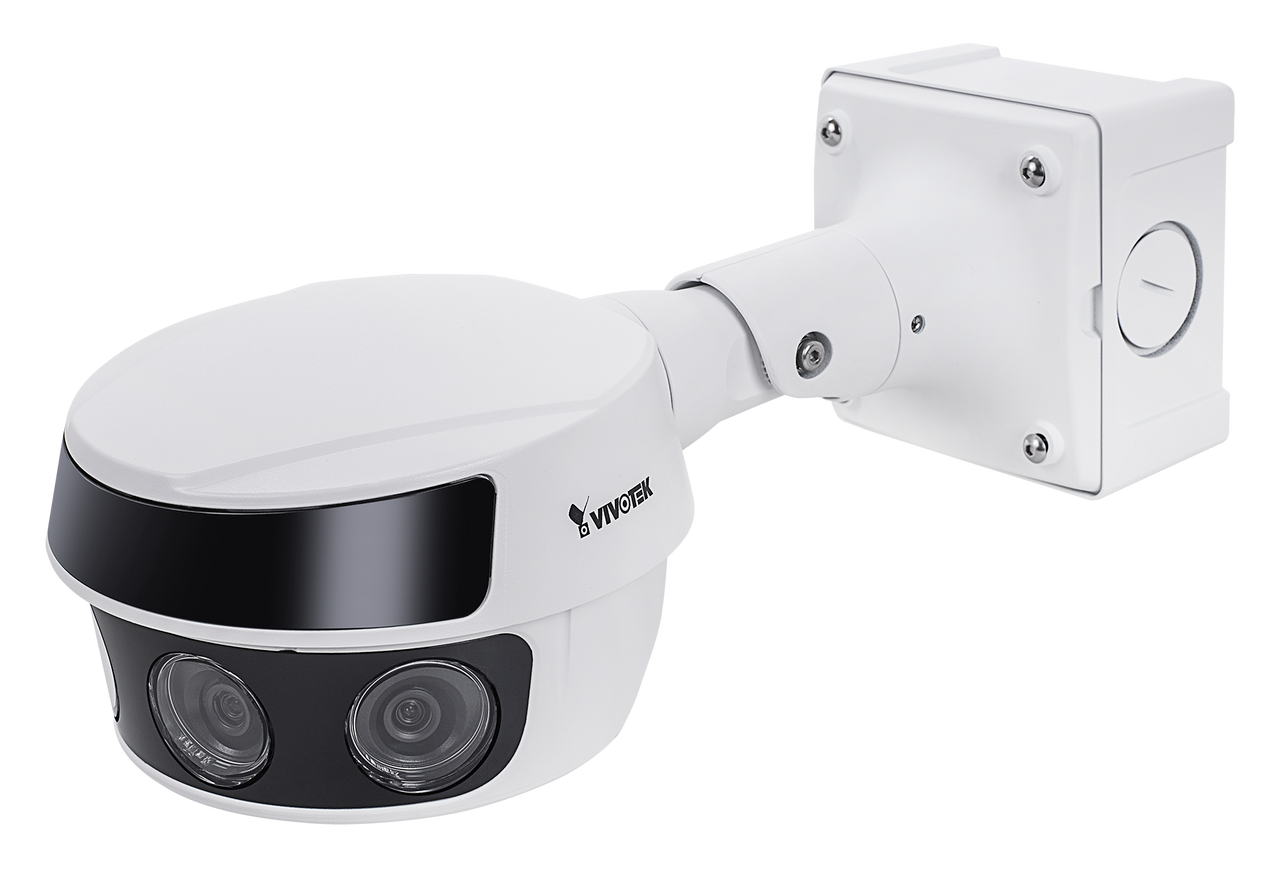

Vivotek MS9321-EHV 20MP (4MP x 4) Multi-Sensor 180° Panoramic Network Camera

Vivotek

Vivotek MS9321-EHV 20MP (4MP x 4) Multi-Sensor 180° Panoramic Network Camera

$1,650.00
SKU: MS9321-EHV
Quantity:
Link to Manufacturer's Page

Discontinued - Recommended Replacement: MS9390-HV

Features

Camera Features

  • Image Sensor 1/2.7" Progressive CMOS
  • Max. Resolution 7680x2560 (20MP)
  • Lens Type Fixed-focal
  • Focal Length f = 3.8 mm
  • Aperture F1.8
  • Auto-iris Fixed-iris
  • Field of View 180° (Horizontal) / 65° (Vertical) / 180° (Diagonal)
  • Shutter Time 1/5 sec. to 1/32,000 sec.
  • WDR Technology WDR Pro (120 dB)
  • Day/Night Yes
  • Removable IR-cut Filter Yes
  • IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR II
  • Minimum Illumination 0.095 Lux @ F1.8 (Color), 0.005 Lux @ F1.8 (B/W), 0 Lux with IR Illuminators on
  • Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • On-board Storage Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity: 256GB), Seamless Recording

Video

  • Video Compression H.265, H.264, MJPEG
  • Maximum Frame Rate 30 fps @ 7680x2560 (WDR Pro on)
  • Maximum Streams 4 simultaneous streams
  • S/N Ratio 61.5 dB
  • Dynamic Range 120 dB
  • Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
  • Image Settings Adjustable image size, quality and bit rate, time stamp, text overlay, flip and mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, HLC, defog, 3DNR, DIS

Audio

  • Audio Capability Two-way Audio (full duplex)
  • Audio Compression G.711, G.726
  • Audio Interface External microphone input, External line output

Network

  • Users Live viewing for up to 10 clients
  • Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
  • ONVIF Supported

Solution Integration

  • Video Motion Detection Five-window video motion detection
  • VADP Package Genetec package, Trend Micro IoT Security

Alarm and Event

  • Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity event (block brute force attack, block cyber attack, quarantine event)
  • Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card

General

  • Connectors RJ-45 cable connector for 10/100/1000Mpbs Network/PoE connection, Audio input, Audio output, AC 24V power input, Digital input*1, Digital output*1
  • LED Indicator System power and status indicator
  • Power Input AC 24V, IEEE 802.3at PoE Class 4
  • Power Consumption AC 24V: Max. 24 W, PoE: Max. 24.65 W
  • Dimensions 308 x 167 x 130 mm
  • Weight 2,400 g (5.29 lb.)
  • Casing IP66, IK10
  • Safety Certifications CE, FCC Class A, UL, LVD, VCCI, C-Tick
  • Operating Temperature Start Temperature: -30°C ~ 60°C (-22°F ~ 140°F), Working temperature: -40°C ~ 60°C (-40°F ~ 140°F)
  • Humidity 90%
  • Warranty 36 months

Included Accessories

  • Quick installation guide, alignment sticker, screw pack, warranty card, junction box

Please note: when connected to NVRs or VMS, multi-sensor cameras use as many channels as there are sensors in the unit

Overview

Featuring 4 x 5MP CMOS Sensors at 30fps at all resolutions, the multiple sensor network camera can monitor full 180° horizontal views and deliver the highest-quality comprehensive coverage, making it an ideal outdoor surveillance solution with excellent image details. Like its predecessor MS8391-EV, the MS9321-EHV has the Video Alignment feature that allows you to adjust the positioning and image quality of each sensor, enabling users to view a seamless picture, with no repetition. VIVOTEK's Smart IR II technology with Adaptive IR enables the MS9321-EHV’s 30M 180° IR illuminators to adjust to the scene together or individually to provide the best possible IR image, reducing glaring hotspots and/or underexposed dark spots. Featuring WDR Pro (120dB), the MS9321-EHV captures both the dark and bright areas of an image and combines them to create a highly realistic representation of the original scene. Combining both H.265 and VIVOTEK Smart Stream III, the MS9321-EHV can reduce bandwidth and storage consumption more than 90%* compared to traditional H.264 without smart streaming.
