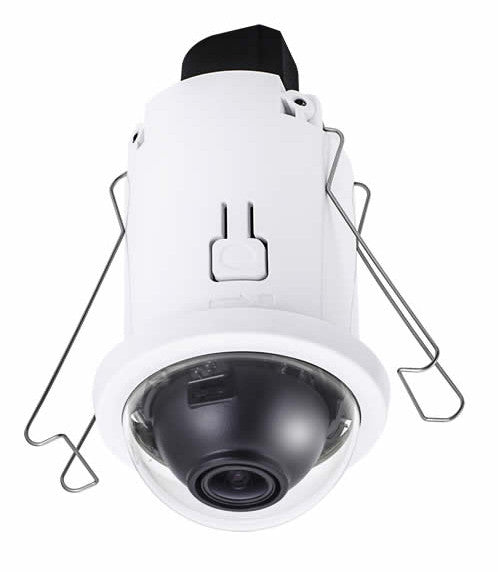

Vivotek FD816CA-HF2 2MP Recess Mount Dome Network Camera

Discontinued - Recommended Replacement:

FD9182-H

Vivotek FD816CA-HF2 Features

• Max Resolution: 1920x1080 (2MP)
• Image Sensor: 1/2.7" Progressive CMOSE
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 0.15 Lux @ F1.8 (Color); < 0.01 Lux @ F1.8 (B/W)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed
• Focal Length: f = 2.8 mm, F1.8
• Zoom: ePTZ: 4x digital zoom IE plug-in
• Iris: N/A
• Focus: Auto
• Field of View: 122° (Horizontal); 66° (Vertical); 142° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080
• WDR Technology: WDR Pro, 100dB
• Image Settings: Adjustable resolution, quality and bitrate; Smart Stream II, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Listening via built-in microphone only
• Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection; Event notification using HTTP, SMTP, FTP and NAS server, SD Card , File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 60 x 115 mm
• Weight: 138 g (.30 lb)
• Operating Temperature: -10°C ~ 45°C (14°F~ 114°F)
• Operating Humidity: N/A
• Power/Consumption: IEEE 802.3af PoE Class 1 / Max. 3.3 W
• Warranty: 2 years
• What's Included: Camera & Quick installation guide


Vivotek FD816CA-HF2 Overview

VIVOTEK’s FD816CA-HF2 is an ultra-mini, recessed-mount fixed dome network camera, offering superb image quality up to 30 fps at 2-Megapixel resolution. Due to its compact design (only 60mm in diameter), the camera is able to blend into any indoor surveillance space such as retail, banks, restaurants, offices and other public areas.

Ultra-mini Recessed-Mount Fixed Dome Network Camera
Featuring VIVOTEK’s WDR Pro and SNV technology, the FD816CA-HF2 provides superior visibility in high-contrast lighting environments and high-quality full-color surveillance video even under low-light conditions. Armed with VIVOTEK's sophisticated Smart Stream II technology, the camera optimizes image quality for desired regions, and thus ensuring maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements.

As an all-in-one camera, the FD816CA-HF2 is designed for easy installation with PoE power, making setup both quick and simple. The camera is also completely compatible with VIVOTEK's VAST free 32-channel recording software. With all of these benefits and more, the FD816CA-HF2 will fulfill your surveillance needs.
