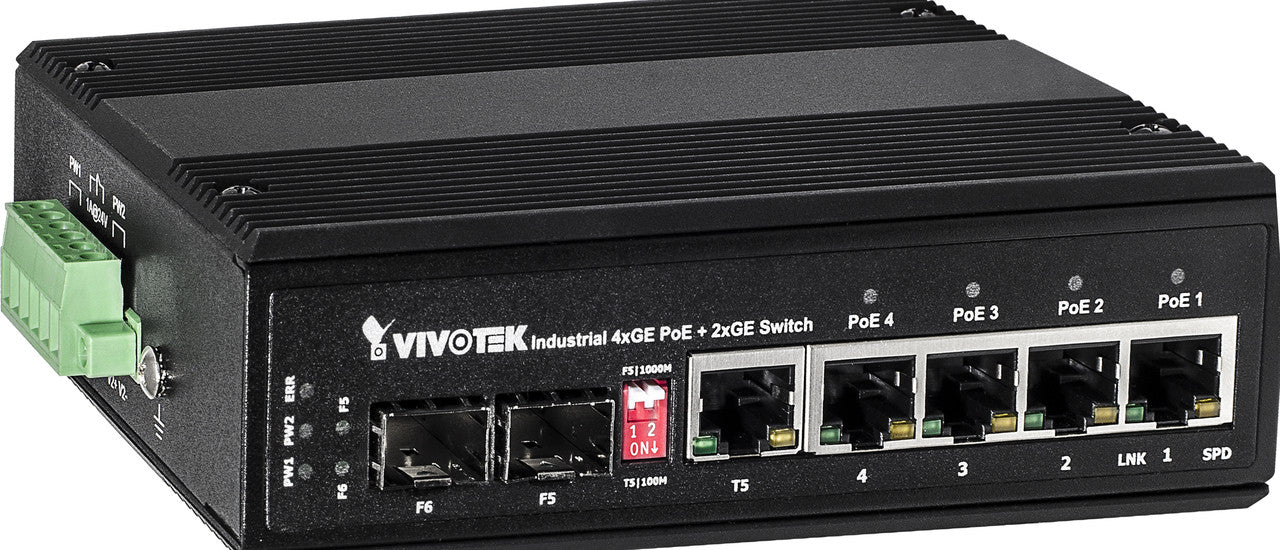

Vivotek AW-IHT-0601 4-Port Industrial PoE Switch

Vivotek

Vivotek AW-IHT-0601 4-Port Industrial PoE Switch

$628.56
SKU: AW-IHT-0601
Quantity:
Link to Manufacturer's Page

Vivotek AW-IHT-0601 Features

Hardware Specifications

  • Ethernet Ports: 4 x Fast Ethernet (RJ45), 1 x Gigabit Ethernet (SFP) 1 x Combo Gigabit Ethernet (RJ45/SFP)
  • PoE Ports: 4
  • Resolution: Megapixel/D1/VGA
  • Compression: MJPEG/MPEG-4/H.264/H.265
  • Compatible Cameras: VIVOTEK Network Cameras
  • Power Requirement: Redundant Dual 12V-56VDC Power Input Removable Terminal Block
  • Power Consumption: 24VDC~56VDC: 126W, 12VDC: 71W
  • LED Display: Power, Error, LAN, PoE
  • Dimensions: 142 (L) x 105 (W) x 43 (H) mm
  • Weight: 0.68 kg (1.5 lbs)
  • Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F) with 5~95% (Non-condensing)
    What's Included:     QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
  • Warranty: 2 Years

Power over Ethernet Specifications

  • Filtering/Forwarding Rates: 10Mbps, 100Mbps, 1000Mbps
  • Switch Throughput: N/A
  • Per Port PoE Power Output: 30W Max
  • Total PoE Power Budget: 120W
  • Transmission Method: Store & Forward
  • PoE Power Supply Type: End-Span
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
  • Standards Compliance: IEEE 802.3 10-BASE-T Ethernet, IEEE 802.3u 100-BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
