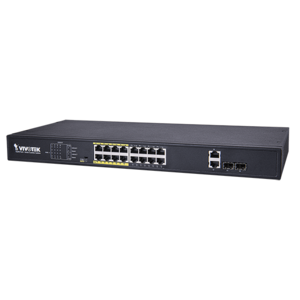

Vivotek AW-FGT-180D-250 Unmanaged 16xFE PoE + 2xGE Combo Switch
Quantity:
Vivotek AW-FGT-180D-250 Features
Networking Specifications
- 10/100Mbps RJ45 PoE Port 16
- Gigabit RJ45/SFP Combo Ports 2
- EX Mode PoE (200M@10Mbps) 8
- VLAN Mode Supported
Ethernet Performance
- Switching Capacity 7.2 Gbps
- Mac Table 16 K
- Packet Forwarding Rate 5.4 Mpps
- Auto-MDI/MDI-X, Auto-Negotiation Supported
Power Specifications
- Power Input Voltage AC 100 ~ 240V, 50/60Hz 4A (Max)
- Max. PoE Output Power Per Port 55VDC, Max. 30 W
- Total PoE Power Budget 250 W
- IEEE 802.3af/at Supported
- Power Pin Assignment 1/2(+), 3/6(-)
- PoE PD Auto Detection Supported
- Surge Protection/Each PoE Port Contact 6KV, Air 8KV
General
- Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
- Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity 10% to 90% non-condensing
- MTBF >50000 hours
- Dimensions 440 (L) x 207 (W) x 44 (H) mm
- Weight 2.93 KG
- Warranty 24 Months
Certifications
- EMC CE, FCC, VCCI, LVD
