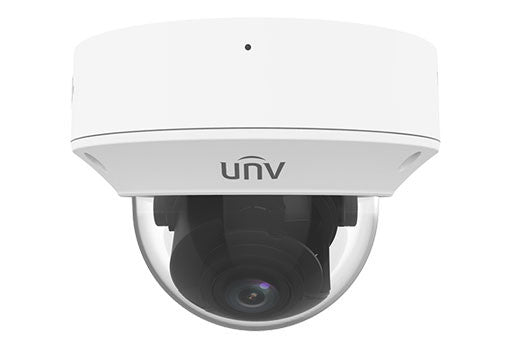

Uniview IPC3235SA-DZK 5MP LightHunter Intelligent Vandal-resistant Dome Network Camera
Quantity:
Optics
1/2.7", Powered by lighthunter
Smart IR, up to 50m (164 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
2592*1944@20fps in the main stream
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Built-in Mic
Built-in Speaker
DC12V or PoE power supply
Wide voltage range of ±25% in DC
Micro SD, up to 256 GB
Alarm 1 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection
IK10 vandal resistant
| IPC3235SA-DZK | |||||||
| Camera | |||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens | ||||||
| Iris | Auto aperture | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.7 | 70.9(232.5ft) | 28.4(93.0ft) | 14.2(46.5ft) | 7.1(23.3ft) | |||
| 13.5 | 247.5(812.0ft) | 99.0(324.8ft) | 49.5(162.4ft) | 24.8(81.2ft) | |||
| Angle of View (H) | 26.8°~93.1° | ||||||
| Angle of View (V) | 20.7°~66.0° | ||||||
| Angle of View (O) | 31.6°~121.0° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0°~355° | Tilt: 0°~80° | Rotate: 0°~355° | ||||
| Min. Illumination | Colour:0.002ux (F1.2, AGC ON) 0 lux with IR | ||||||
| WDR | 120dB | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| IR Range | Up to 50m (164 ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| Frame Rate | Main Stream: 5MP(2592*1944),Max 20fps; 4MP(2560*1440),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| ROI | Supported | ||||||
| Video stream | Triple streams | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas(8 blacks/4 mosaics+4 blacks) | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Smart | |||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711U, G.711A | ||||||
| Two-way Audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network Storage | ANR,NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZLive Ezview | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Interface | |||||||
| Audio I/O | Audio cable | ||||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Built-in Mic | Supported | ||||||
| Built-in Speaker | Supported | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Certification | |||||||
| Certifications | CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
| Power | DC12V(±25%), PoE(IEEE 802.3af) | ||||||
| Power consumption: Max 10.8W | |||||||
| Support overcurrent protection, Input short circuit protection | |||||||
| Dimensions (Ø x H) | Φ148.0 x 111.4mm (Φ5.8" x4.4") | ||||||
| Weight | 0.93kg(2.05lb) | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge protection | 6KV | ||||||
| Vandal Resistant | IK10 | ||||||
| Ingress Protection | IP67 | ||||||
