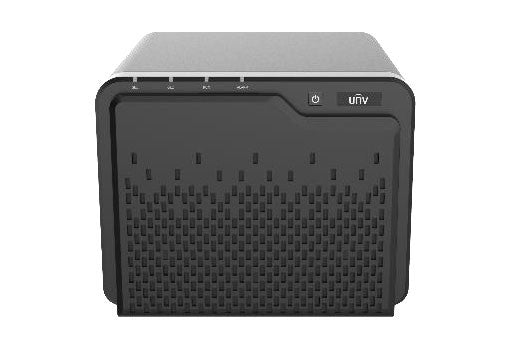

Uniview DX204 Quad-Core 4-HDD NAS Network Storage Server
Uniview DX204 Quad-Core 4-HDD NAS Network Storage Server

Uniview

Uniview DX204 Quad-Core 4-HDD NAS Network Storage Server

$1,299.00
SKU: DX204
Quantity:

Contact

  • Supports snapshot, offers effective protection for important data against crypto ransomware.
  • Supports high-level data security, AES enterprise-grade encryption, SSL security certificates, and disaster recovery protection.
  • Supports log management, allows user to view file access logs.
  • Supports multiple file sharing protocols including ISCSI, NFS, AFP, SMB, FTP, WEBDAV.
  • Supports flexible permission management and multi-layer protection mechanism.
  • Supports smart O&M, advanced device and HDD health monitoring, alert users of potential risks of data loss.
  • Supports RAID technology, allows the configuration of one or more backup HDDs.
  • High-speed transmission, supports 10Gigabit network interface card.

Video Functions

  • Remote access to view live and recorded video anytime.
  • Centralized video data storage.
  • Supports access of multiple cameras and real-time video viewing.
  • Supports centralized device management with rich camera support.
  • Enhanced data security with AES encryption to protect video privacy and restrict access permissions.
Model DX204
OS Embedded Linux
CPU Intel quad-core X86_64 processor
RAM 4GB DDR4, dual SO-DIMM slots, expandable to 32GB
HDD 4 * SATA3.0 slots, compatible with 3.5-inch or 2.5-inch SATA HDD/SSD
Network interface 2*GE, 1*PCIe 3.0 for expansion to 10Gigabit network
HDMI 1, resolution up to 4096 x 2160@60Hz
USB 2*USB3.0
M.2 HDD slot 2 (NVMe), with one slot supporting SATA3.0
EMMC 8GB (standard)
Video storage performance 64*2Mbps
Access protocol Supports Onvif cameras.
Dimensions 226mm (L) × 246mm (W) × 186mm (H)
Weight 3.6 kg (without HDD)
Power consumption 33W (with HDD fully configured)
Noise Room temperature 25°C≤31dB(A)
Within the environment’s highest specified limit ≤39.4dB(A) (low power operation mode)
Operating temperature 0°C to +45°C
Storage temperature -20°C to +70°C
Operating humidity 5% to 95% (non-condensing)
Storage humidity 5% to 95% (non-condensing)
