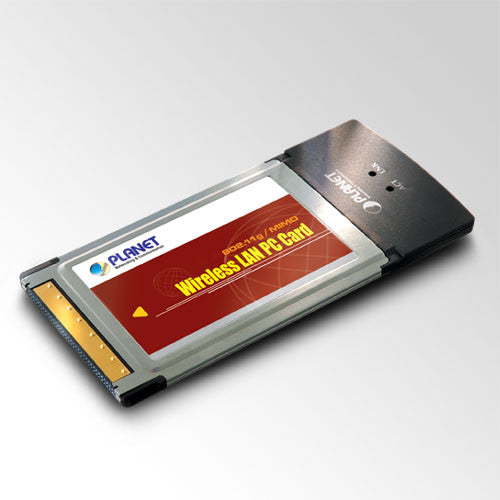

Planet WML-3565 MIMO 11g PCMCIA Wireless LAN Adapter
Usually Ships in 10 - 12 days
With MIMO technology enhanced, the WML-3565 enables you to connect to wireless networks at farther distances than before. The WML-3565 has three built-in antennas: two for signal reception and one for high power signal transmission. Not only the connection distance is enhanced, but also the "dead spots" in the network will be reduced. For WLAN security issues, the WML-3565 supports 64/128-bit WEP / WPA and WPA2 data encryptions that protect your wireless network from eavesdropping.
In order to meet the multimedia data bandwidth requirement, IEEE 802.11e Quality of Service (QoS) (The Wi-Fi Alliance defined WMM as a profile of the IEEE 802.11e) extensions for 802.11 networks will help to define the priorities of the data traffics by the data categories to provide enhanced multimedia support. The WML-3565 supports the advanced technology for sure.
The WML-3565 supports higher data throughput than the IEEE 802.11g standard (up to 54Mbps). It supports specific ways to increase the data transfer rate at a time; compress the data and decrease the waiting time to send the next data to the Routers or APs. This feature is called Turbo Mode. When the card is connecting to the Routers or APs with the proprietary feature, the wireless network will be more effective.
| Product | |
|---|---|
| Interface | Complaint with 32bit CardBus standard |
| Standards Conformance | Compliant with 802.11b / 802.11g |
| Data Transfer Rate | 11b: 1 / 2 / 5.5 / 11Mbps (auto sensing) 11g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54Mbps (auto sensing) |
| Operating Mode | Infrastructure Mode, Ad-Hoc Mode |
| Security | 64/128-bit WEP Data Encryption, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE 802.1x) |
| RF Modulation | 11g: OFDM with BPSK, QPSK, 16-QAM, 64QAM 11b: BPSK, QPSK, CCK |
| Media Access Protocol | CSMA / CA |
| Output Power | 18dB +/- 2dBm |
| LED Indicators | ACT, LNK |
| Operating systems | Windows 98 / Me / 2000 / XP and Server 2003 |
| Temperature | Operating: 0 ~ 55 Degree C Storage: -20 ~ 70 Degree C |
| Operating Humidity | Operating: 10% to 90% Non-Condensing Storage: 5% to 95% Non-Condensing |
| Dimensions (L x W x H) | 114 x 54 x 5 mm |
| Weight | 40g |
| Certifications | FCC, CE |
MIMO 11g PCMCIA Wireless LAN Adapter
