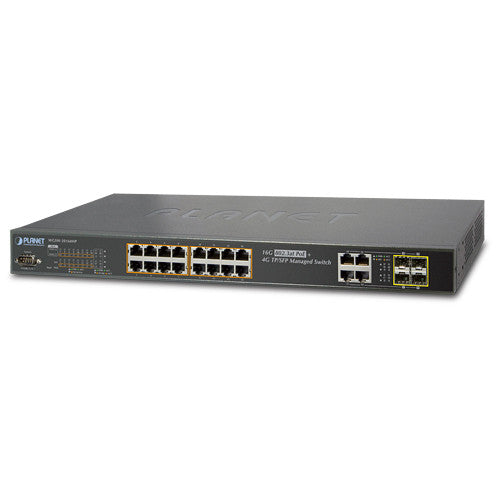

Planet WGSW-20160HP PoE Combo Managed Switch

Planet WGSW-20160HP Features

Hardware Specifications

• Ethernet Ports: 16 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
• PoE Ports: 16
• Switch Throughput: 29.7Mpps@64Bytes
• Switch Architecture: Store and Forward
• Power Requirement: 100~240V AC, 50/60Hz, 2A
• Power Consumption: Max 22 Watts / 75BTU
• LED Display: System: Power (Green), SYS (System, Green); Alert: FAN1 (Green), FAN2 (Green); PoE Ethernet Interfaces (Port 1 to Port 16): LNK/ACT (10/100/1000Mbps, Green), PoE In-Use (Orange); 10/100/1000Base-T Combo Ports (Port 17 to port 20): 1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Orange); 100/1000Mbps SFP Combo Interfaces (Port 17 to Port 20): 1000 (LNK/ACT, Green), 100 (LNK/ACT, Orange)
• Dimension (W x D x H): 440 x 300 x 44.5 mm
• Weight: 4.1kg
• Operating Temperature: 0 ~ 50 Degree C with 20% ~ 95%, relative humidity, non-condensing
• Warranty: 3 Year Warranty

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af / 802.3at PoE / PSE
• PoE Power Supply Type: End-Span
• PoE Power Output: Per Port 56V DC Max. 30.8 Watts
• Power Pin Assignments: 1/2(+), 3/6(-)
• PoE Power Budget: 230 Watts
• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX/100Base-FX, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control and Back pressure, IEEE 802.3ad Port trunk with LACP, IEEE 802.1D Spanning tree protocol, IEEE 802.1w Rapid spanning tree protocol, IEEE 802.1s Multiple spanning tree protocol, IEEE 802.1p Class of service, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1ab LLDP, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet PLUS, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, FRC 3810 MLD version 2

See datasheet for Layer 2 Features

Planet WGSW-20160HP Overview

Ideal Solution for Secure IP Surveillance Construction
Particularly designed for the growing popular IP Surveillance applications, PLANET Gigabit 802.3at PoE Managed Switch WGSW-20160HP is positioned as a Surveillance Switch with central management of remote Power control and IP camera monitoring. The WGSW-20160HP provides built-in L2/L4 Switching engine and intelligent PoE functions along with 16 10/100/1000Base-T ports featuring 30Watts 802.3at PoE in RJ-45 copper interfaces and 4 extra Gigabit TP/SFP combo interfaces supporting high speed transmission of surveillance images and videos.

Perfect Integration Solution for IP PoE Camera and NVR System
Differentiated from general IT industrial PoE Switch which usually contains 12 or 24 PoE ports, the WGSW-20160HP provides 16 802.3at PoE+ ports for catering to medium to large scale of IP Surveillance networks with lower total cost. With 40Gbps high performance switch architecture and 230Watts PoE power budget by WGSW-20160HP, the recorded video files from 16 PoE IP Cameras can be powered by WGSW-20160HP and saved in the 8 / 16 / 32-channel NVR systems or surveillance software to perform comprehensive security monitoring. For instance, one WGSW-20160HP can combine with one 16-Channel NVR and 16 PoE IP cameras as a kit for the administrators centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.

Flexible and Extendable Uplink Solution
The WGSW-20160HP provides 4 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000Base-T RJ-45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through these dual-speed fiber SFP slots, it can also connect with the 100Base-FX / 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplinks to backbone switch and monitor center in long distance. The distance can be extended from 550 meters to 2km (Multi-Mode fiber) up to above 10/20/30/40/50/70/120 kilometers (Single-Mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Centralized Power Management for Gigabit Ethernet PoE Networking
To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, WGSW-20160HP features high performance Gigabit IEEE 802.3af PoE (Up to 15.4Watts) and IEEE 802.3at PoE+ (Up to 30Watts) on all ports. It perfectly satisfies the PoE IP camera which needs high power consumption such as IR, PTZ, Speed Dome cameras or even Box type IP cameras with built in fan and heater. The PoE capabilities provided also help to reduce deployment costs for network devices as a result of freeing from restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates cost for additional AC wiring and reduces installation time.

Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for surveillance network, the WGSW-20160HP features four special PoE Management functions:
　■　PD ALIVE Check
　■　Schedule Power Recycle
　■　SMTP/SNMP Trap Event Alert
　■　PoE Schedule

Intelligent Powered Device Alive Check
The WGSW-20160HP can be configured to monitor connected PD (Powered Device) status in real-time via ping action. Once the PD stops working and no response, the WGSW-20160HP will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reduce administrator management burden.
