Planet LRP-101UH UTP Long Reach PoE Injector

Planet LRP-101UH Features

Ethernet Interface

• Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI / MDI-X
• Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
• PoE Input: Supports both mid-span and end-span PSE
• Input Range: 48~56V DC
• Data Rate: 100/100 Mbps
• Cabling: Cat5e or above
• Maximum Distance: 100m
• Maximum Frame Size: 1522 bytes

LED Indicators

• 4 x LEDs
• PWR
• LRP LNK
• PoE IN
• LNK / ACTESD Protection: 4 KV DC

EFT Protection

• 2 KV

Enclosure Metal

• case

Installation

• Wall mount or DIN rail with optional kit

Power Requirements

• RJ45 PoE Input: 802.3at/af 48~56V DC
• DC Input: 48~56V DC

Standards Compliance

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3af Power over Ethernet (802.3at Type 1)
• IEEE 802.3at Power over Ethernet (802.3at Type 2)

Planet LRP-101UH Overview

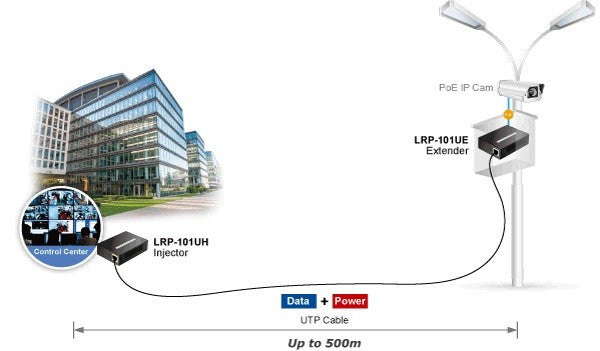

Planet's Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.
