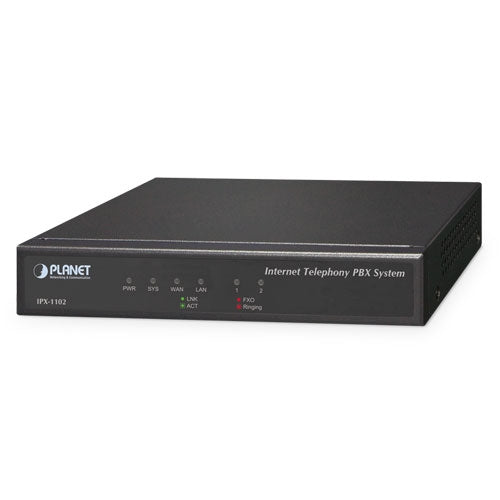

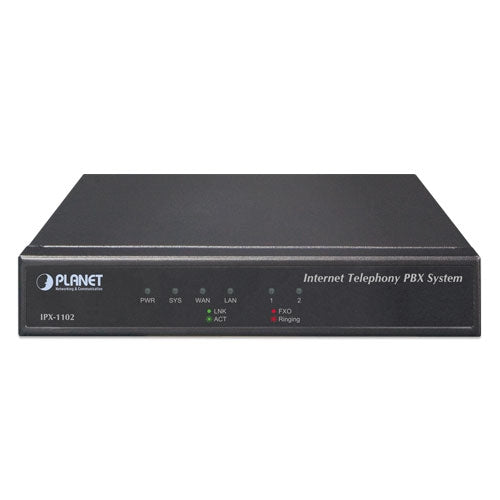

Planet IPX-1102 100 User Asterisk base Advance IP PBX with 2 FXO interface,

Intuitive, Ease-of-Use IP PBX Management

PLANET IPX-1102 advanced IP PBX telephony system is effortlessly set up and managed, thanks to its intuitive web-based user interface and quick setup wizard. As an Asterisk-based solution, it offers the complete benefits of pre-loaded SIP, akin to features found in other high-end enterprise-level appliances. With a capacity to accommodate 100 user registrations, the IPX-1102 simplifies the administration of a comprehensive voice-over-IP system, providing both convenience and cost advantages. The equipment is best paired with PLANET color IP phones to get the function going smoothly and to have a seamless connection between the software and hardware.

Off-net Calling Capability, Call Restriction, Call Access Control

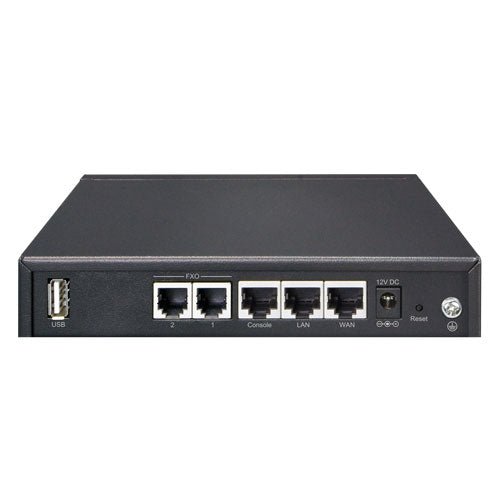

The IPX-1102, equipped with 2 FXO interfaces, establishes a PBX system supporting 2 analog calls. This ensures smooth communication across the existing PSTN calls, analog phones, IP phones, and SIP-based endpoints.

Replacing Old PBX Easily without New Wiring

Cost-effective, easy-to-install and simple-to-use, the IPX-1102 converts standard telephones into IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.

With the IPX-1102, SMBs are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-1102 can be the bridge between the traditional analog system and IP network without having to invest heavily.

Distributed VoIP Network Infrastructure

In the new-generation communication age, the IPX-1102 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-1102 also helps users to apply and remember the login information easier. Its multiple-language feature helps user to quickly and friendly manage the system. Moreover, the IPX-1102 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

Standard Compliance

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-1102 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

System Highlights

• 50 concurrent calls and up to 100 registers
• 30 conference attendees
• 400- hour recording (Internal Storage)
• Built-in 2 FXO interfaces
• Unlimited SIP/IMS Trunks
• HD voice codec G.722 for perfect voice quality
• Voicemail to Email for not missing any important message
• Paging and intercom function strengthens the work efficiency
• Built-in SIP proxy server following RFC 3261
• Multiple language of GUI for international business
• Web-based control panel for easy configuration and management of the system
• Hardware echo cancellation module for great and smooth communication
• Strong security features protect your system from hacking
• Records voice and voicemail to external USB disk
• Quick setup wizard

Codec and Protocol

• SIP 2.0 (RFC3261), IAX2 and Lync server compliant
• Audio Codec: G.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, SPEEX, Opus, AMR, AMR-WB
• Video Codec: H.261, H.263, H.263+, H.264 and VP8
• DTMF: RFC 4733, SIP info, in-band and auto

Network and Security Features

• DHCP server, DDNS client (PLANET DDNS & Easy DDNS)
• SNMP v1/v2, IEEE802.1Q VLAN
• IPv4/IPv6, TR069
• Manual configuration of static route table
• Troubleshooting (Ping and Traceroute)
• VPN server and VPN client
• Mitigates SIP Register DoS attacks
• Prevents Abort Invite DoS attacks
• Prevents SSH Login DoS attacks
• Firewall and enhances HTTPS connection
• Geo-IP (Security policy based on IP address geographical locations)
• Data backup and recovery

PBX Features

• SIP Register with UDP/TCP/TLS/SRTP
• One Touch Recording
• Mobility Extension
• Black List
• BLF (Busy Lamp Field)
• CDR (Call Detailed Record)
• Conference Room
• DID (Direct Inward Dialing Number)
• SRTP (Secure Realtime Transport Protocol)
• DND (Do Not Disturb)
• IVR (Interactive Voice Responses)
• Follow Me, Call Spy and PIN Set
• Distinctive Ringtone
• Multi-language System Prompt
• Phone Book, Speed Dial
• Ring Group, SIP Trunk
• Skype for SIP, Smart DID, System Log
• T.38 fax (pass-through), voicemail and voicemail to e-mail

Call Features

• Call Back, Call Forward, Call Group
• Call Hold, Call Paging and Intercom
• Call Park, Call Pickup, Call Queue
• Call Record, Call Route, Blind Transfer
• Attend Transfer, Call Waiting
• Caller ID, Dial by Name
• Customized IVR, On-hold Music, Transfer
• 30 Conference attendees
• One-to-One Video Call
