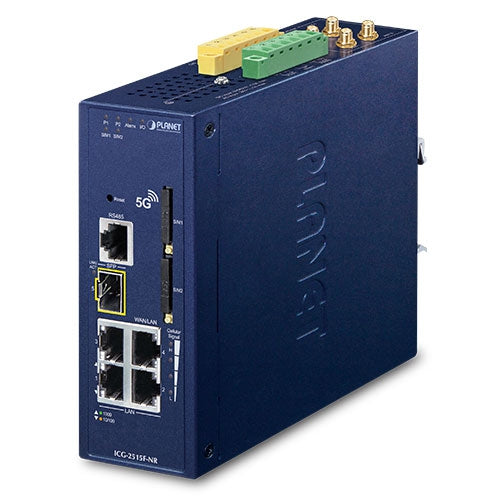

Planet ICG-2515F-NR Industrial 5G NR Cellular Gateway with 1-Port 1000X SFP (Sub

Upgrade Industrial Network with 5G NR Cellular Gateway

PLANET ICG-2515F-NR is an industrial-grade cellular gateway for demanding mobile applications, M2M (machine-to-machine) and IoT deployments. Upgraded to the latest cellular technology of 5G NR (new radio), the ICG-2515F-NR is able to provide ultra-fast broadband access with 5G cellular network. The ICG-2515F-NR also features four Ethernet ports (3 LANs and 1 LAN/WAN), one Fiber port (LAN/WAN), serial port (RS485), DI and DO interfaces, and VPN technology bundled in a compact yet rugged metal case. It establishes a fast cellular connection between Ethernet and serial port equipped devices. The ICG-2515F-NR is particularly ideal for industrial automation, digital factory and other industrial applications.

 Automatic Failover between 5G NR and Dual WAN Interfaces

Designed with 5G NR, dual WAN interfaces (fiber and copper), 1000X SFP and Gigabyte Ethernet, the ICG-2515F-NR ensures Internet connectivity by featuring failover functionality between 5G NR and dual WAN interfaces. The ICG-2515F-NR provides flexibilty to set priority for 5G NR or dual WAN connection. When the main WAN interface fails, the secondary WAN interface will automatically back up the connection to ensure always-on connectivity.

Ultra-Fast Speed 4G/5G Network*

The ICG-2515F-NR supports 5G NR DL speeds higher than 2.4 Gbps and 4G LTE DL speeds of up to 1 Gbps. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. The ICG-2515F-NR also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications.

*The real 5G NR/4G LTE data rate is dependent on local service provider.

Dual SIM Design

To enhance reliability, the ICG-2515F-NR is equipped with dual SIM slots that support failover and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications. Besides, the ICG-2515F-NR supports load balance function to improve network efficiency. It provides a more flexible and easier way for users to create an instant network sharing service via 5G-NR in public places like transportations, outdoor events, etc.

GPS Included

The ICG-2515F-NR is equipped with (global positioning system) feature. It adapts 5G-NR technology to incorporate multiple global navigation systems (GPS/GLONASS/BeiDou/Galileo/QZSS). It helps to position location of cellular gateway based on a network of satellites that continuously transmits necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked.

Ideal High-Availability VPN Security Router Solution for Industrial Environment

The ICG-2515F-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the ICG-2515F-NR makes the connection secure, more flexible, and more capable.

Wi-Fi Deployments and Authentication with Simplified Management

The ICG-2515F-NR also provides a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The ICG-2515F-NR can offer a secure Wi-Fi network with easy installation for your business.

Centralized Remote Control of Managed APs

The ICG-2515F-NR provides centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, wireless profiles for different purposes can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

For example, to configure multiple Smart APs of the same model, the ICG-2515F-NR allows clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

Excellent Ability in Threat Defense

The ICG-2515F-NR has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the ICG-2515F-NR is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the ICG-2515F-NR offers an easy-to-use, platform independent management and configuration facility. The ICG-2515F-NR supports SNMP and it can be managed via any management software based on the standard SNMP protocol.

Maximizing Work Efficiency with PLANET SD-WAN Gateway

PLANET ICG-2515F-NR incorporated in SD-WAN(software-defined Wide Area Network) function can greatly increase WAN optimization for multiple WAN links to be managed. With SD-WAN, users can connect any application across all available network connections at every site. It improves application performance and provides a high-quality user experience for increasing business productivity and reducing IT costs.

Highlights

• Global 5G NR (NSA/SA)/4G LTE network with dual SIM design for cellular network redundancy
• Automatic failover between 5G NR and Gigabit WAN
• One 1000BASE-X SFP slot for LAN/WAN interface
• 2 x DI/DO and 1 serial port (RS485) for Modbus applications
• SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
• Stateful packet inspection (SPI) firewall and content filtering
• Blocks DoS/DDOS attack, port range forwarding
• High Availability, AP Controller, Captive Portal and RADIUS
• Planet NMS controller system and CloudViewer app supported
• -40 to 75 degrees C operating temperature; DIN-rail and fanless designs

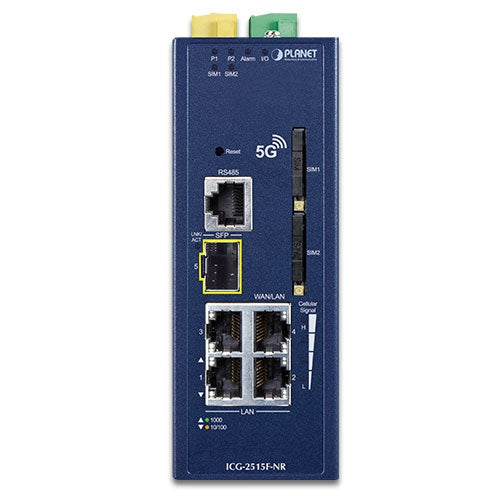

Hardware

• 1 x 1000BASE-X SFP LAN/WAN port
• 1 x 10/100/1000BASE-T RJ45 LAN/WAN port, auto-negotiation, auto MDI/MDI-X
• 3 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
• 4 x 5G NR antennas
• 2 x SIM card slots
• 1 x serial console port (RS485)
• 1 x reset button

Cellular Interface

• Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA
• Built-in SIM and broadband backup for network redundancy

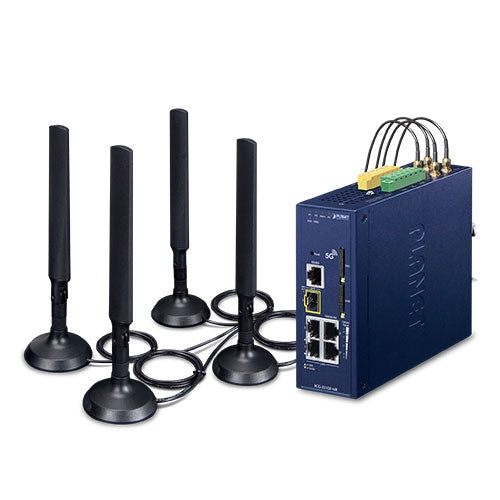

• Four detachable antennas for 5G NR connection
• LED indicators for signal strength and connection status

IP Routing Feature

• Static Route
• Dynamic Route
• OSPF

Firewall Security

• Cybersecurity
• Stateful Packet Inspection (SPI) firewall
• Blocks DoS/DDoS attack
• Content Filtering
• MAC Filtering and IP Filtering
• NAT ALGs (Application Layer Gateway)
• Blocks SYN/ICMP Flooding

VPN Features

• IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
• Max. Connection Tunnel Entries: 60 VPN tunnels,
• Encryption methods: DES, 3DES, AES, AES-128/192/256
• Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512

Networking

• Outbound load balancing
• Failover for dual-WAN
• High Availability
• Captive Portal
• RADIUS Server/Client
• Static IP/PPPoE/DHCP client for WAN
• DHCP server/NTP client for LAN
• Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
• Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
• MAC address clone
• DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP

Others

• Setup wizard
• Dashboard for real-time system overview
• Supported access by HTTP or HTTPS
• Auto reboot
• PLANET NMS System and Smart Discovery Utility for deployment management
• Planet CloudViewer App for real-time monitoring

Hardware SpecificationsEthernet4 10/100/1000BASE-T RJ45 Ethernet ports including
　3 LAN ports (Ports 1 to 3)
　1 LAN/WAN port (Port 4)Fiber1 1000BASE-X SFP slot
　1 LAN/WAN port (Port 5)Serial InterfaceRJ45 serial portSIM Interface2 SIM card slots with mini SIM card trayCellular Antenna5 dBi external antennas with SMA connectors for 5G-NRDI & DO Interfaces2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.

2 Digital Output (DO):

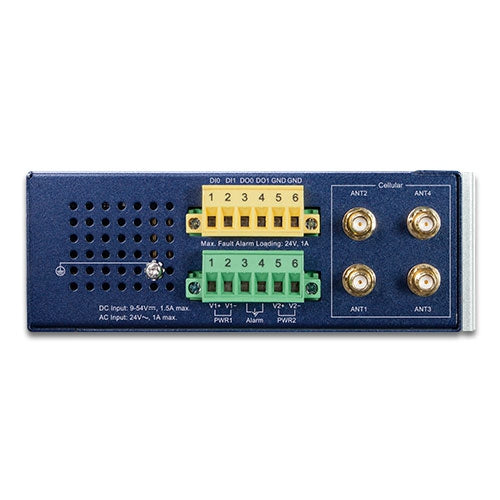

Open collector to 24V DC, 100mA max.ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2Reset Button< 5 sec: System reboot
> 5 sec: Factory defaultEnclosureIP30 metal caseInstallationDIN rail, desktop, wall-mountingLED IndicatorsSystem:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)

Ethernet Interfaces (Ports 1-4):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)

Fiber Interfaces (Port 5):
1000 LNK/ACT (Green)

Cellular SIM:
SIM1 and SIM2 (Green)

Cellular signal:
4 levels (Green)Dimensions (W x D x H)50 x 135 x 135 mmWeight0.8 kgPower Requirements – DC9~54V DC, 1.5APower Consumption7.02W/ 23.94 BTUMulti Band Supports5G NRn1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79LTE-FDDB1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/
B32/B46/B66/B71LTE TDDB34/B38/B39/B40/B41/B42/B43/B48WCDMAB1/B2/B3/B4/B5/B8GNSSGPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSSData Transmission Throughput2.4Gbps (DL)/500Mbps (UL) for NR
1Gbps (DL)/200Mbps (UL) for LTE
42Mbps (DL)/5.76Mbps (UL) for HSPA+Advanced FunctionsVPNIPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)VPN TunnelsMax. 60VPN ThroughputMax. 60MbpsEncryption MethodsDES, 3DES, AES or AES-128/192/256 encryptingAuthentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithmManagementBasic Management InterfacesWeb browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supportedSecure Management InterfacesSSHv2, TLSv1.2, SNMP v3System LogSystem Event LogOthersSetup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
DiagnosticsStandards ConformanceRegulatory ComplianceCE, FCCEnvironmentOperatingTemperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing)StorageTemperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
