NUUO SCB-6004S
NUUO DVR Compression Card Specs

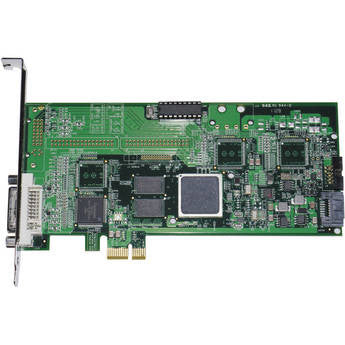

NUUO SCB-6004S DVR Hardware Compression Card

NUUO

NUUO SCB-6004S DVR Hardware Compression Card

Sale price$275.00
Discontinued
SKU: SCB-6004S

Contact

NUUO SCB-6004S Features

  • Video Input: 4 Cameras
  • Audio Input: 4 Channels
  • Display Rate @ D1: 120 fps (NTSC); 100 fps (PAL)
  • Recording Rate @ D1: 30 fps (NTSC); 25 fps (PAL)
  • Maximum Cards: 4 Cards
  • Video Resolution: NTSC: 176x120; 352x240; 704x480; PAL: 176x144; 352x288; 704x576
  • Compression Format: H.264
  • Interface: PCI-e x1
  • Support I/O Card Number: 4 Cards
  • Available I/O Box: SCB-C24/C26/C28, SCB-S-IO
  • Hardware Watchdog: Support
  • Dimension: 188 (W) x 121 (H) mm
  • Warranty: 2 Years
  • Please Note: Also available in 8 camera (SBC-6008S) and 16 camera (SCB-6016S) formats

System Minimum Requirements (per card)

  • OS Supported: Windows XP (32-bit) / Windows 7 (32 and 64-bit) / Windows 2008 R2 (64-bit)
  • CPU: Intel Core 2 Duo E5300
  • RAM: 2 GB
  • HDD: 250 GB
  • Chipset: Intel P55, H55, X58, P45, P43 chip, MB vendor ASUS, Gigabyte, or MSI with Intel Chipset recommended
  • Display: ATI Radeon HD 4350 or above (ATI Driver V11-5 recommended ATI Driver V10 not support)


NUUO SCB Series DVR Card Overview

NUUO DVR is a PC-based analog recording system that supports analog cameras. The H.264 hardware compression cards can increase the CPU efficiency while the Mpeg4 software compression cards will fit nicely into a wide array of projects. Both NTSC and PAL standards are compatible with any NUUO DVR. Main Console 3.5.10 is officially released to support HD-SDI cameras. NUUO DVR can be upgraded into a NDVR hybrid system by adding IP camera license onto it. It is a simple one-step process for any DVR owners who are ready to leap into the IP world. Multisite projects or large scale single site projects are both easily accommodated by NUUO DVR/NDVR solutions through the addition of NUUO CMS. NUUO CMS can manage an unlimited number of NUUO servers and cameras including DVR and NDVR hybrid.
