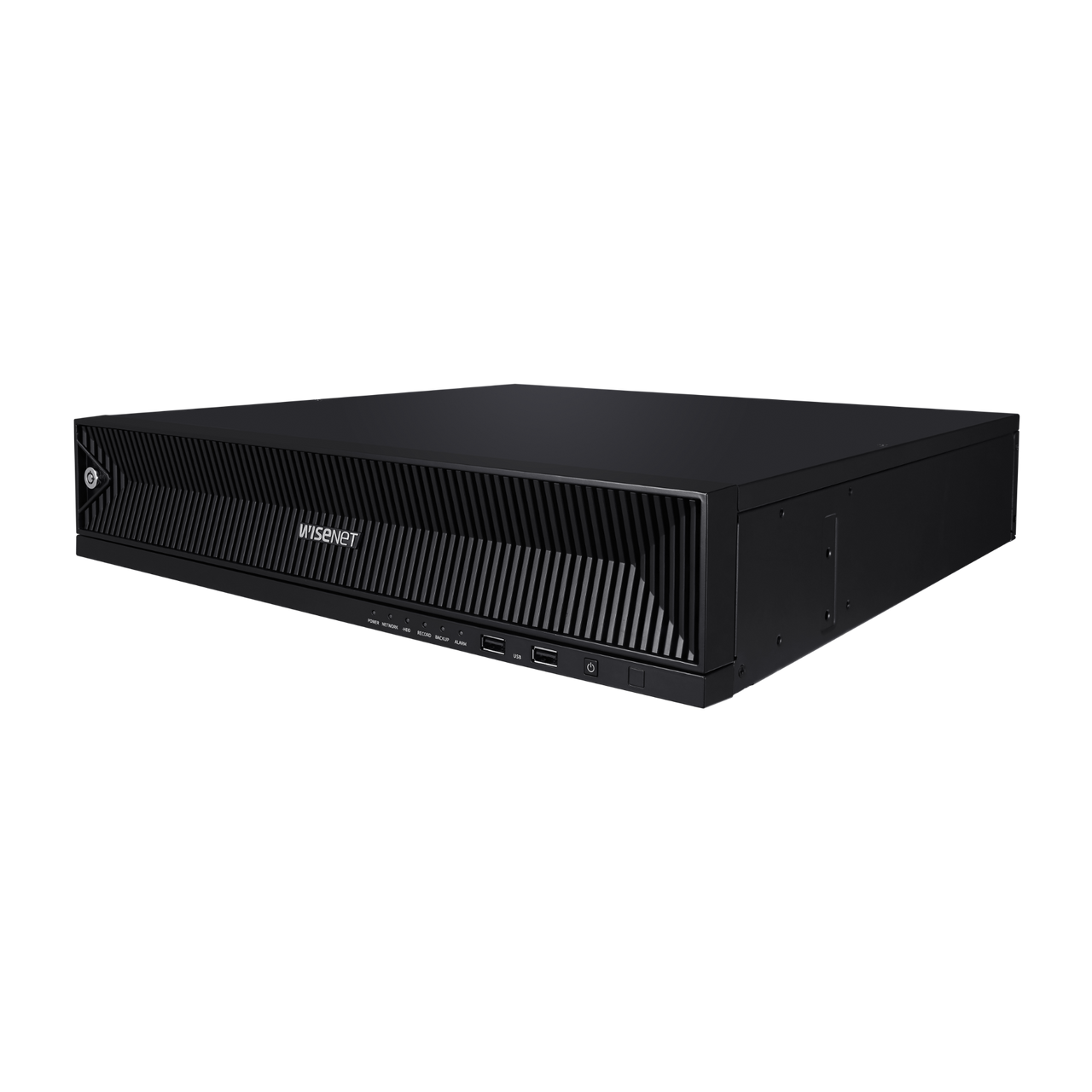

Hanwha XRN-6410RB2 64CH NVR
Hanwha XRN-6410RB2 64CH NVR
Hanwha XRN-6410RB2 64CH NVR
Hanwha XRN-6410RB2 64CH NVR

Hanwha / Samsung

Hanwha XRN-6410RB2 64CH NVR

$4,231.33 $5,454.00
Save $1,222.67
SKU: XRN-6410RB2
Quantity:
Link to Manufacturer's Page
Timeline preview and easy channel, event, alarm configuration
When managing multi channels, XRN-6410RB2/3210RB2/6410B2/3210B2 greatly improves search efficiency by allowing users to preview images and videos by simply hovering mouse cursor on the timeline. Moreover, users can configure event and alarm for all channels within a single page.
Supports live monitoring and bookmarks
With the live monitoring feature, XRN-6410RB2/3210RB2/6410B2/3210B2 allow users to view information by channel including real-time videos, system status, recording status and etc. and also offer easy and detailed monitoring with the digital PTZ control.
Moreover, bookmarks feature makes it possible to save up to 100 major events for the easy and quick event search.
AI search working with Wisenet P series AI Cameras
XRN-6410RB2/3210RB2/6410B2/3210B2 support AI search features when using with Wisenet P series AI cameras.
Users can search various attributes from AI cameras such as people (gender, age, hat, bag, color of clothes) and vehicle (type, color).

Product Spec

  • Display
    Network camera
    Inputs Max. 64CH
    Resolution 32MP ~ CIF
    Protocols SUNAPI, ONVIF
    Decoding
    Local Display [Dual Display]
    HDMI 1: 3840 x 2160 (30Hz)
    HDMI 2: 1920x1080 (60Hz)
    Multi Screen Display [Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ 25/ 36/ 64/ Sequence
    [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
    Resolution 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(960fps)
    Performance
    Operating System
    Embedded Linux
    Record
    Compression H.265, H.264, MJPEG
    Recording Bandwidth Max. 400Mbps
    Resolution 32MP ~ CIF
    Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
    Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
    Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
    Search & Play
    Playback Bandwidth RAID Mode : Max. 64Mbps(64CH simultaneously)
    Non-RAID Mode : Max. 32Mbps
    User Max. 4 Users (Local 1, Remote 3)
    Simultaneous playback Max. 112CH(Local 64CH, Remote 16CH per user)
    Fisheye Dewarping CMS
    Mode Date & Time(Calendar), Event list, Text Search, Smart Search
    Resolution CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
    Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
    Storage
    Supported HDD Up to 10TB
    HDD Slot SATA 8ea(Max. 80TB, Non-RAID mode)
    External iSCSI storage
    RAID RAID-5/6(Single, 1 Array)
    Backup
    File backup BU/Exe(GUI), JPG/AVI(Network)
    Function Multi channel(Up to 16CH) Play, Date-Time/Title display
    Network
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
    DDNS Hanwha DDNS
    Transmission Bandwidth Max. 400Mbps
    Audio
    Input/Output 64 CH(network)
    Compression G.711, G.726, AAC(16/48KHz)
    Audio Communication 2-Way
    Max Remote Users Search(3), Live Unicast(10), Multicast(20)
    Security IP address filtering, User access Log, 802.1x, Encryption
    Device certificate(Hanwha Techwin Root CA), Signed firmware
    Web viewer
    Supported OS Windows 10, macOS 10.13
    Supported browser Google Chrome, Microsoft Edge, Mac Safari
    Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile
    Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
    Functions
    Camera Setup
    Register Auto, Manual
    Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
    Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
    PTZ
    Control Via GUI, Webviewer, SPC-2000
    Preset 300 Presets
    Smart phone
    Support Model iOS, Android
    Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
    Control Live 16CH(Multi-Profile Support), Playback 4CH
    Max. Remote Users Search(3), Live Unicast(10)
    Redundancy
    Failover N+1
    ARB Support
    Easy configuration P2P(QR code)
    Interface
    Front
    Indicator HDD, Alarm, Power, Record, Backup, Network
    Storage OK
    Reset OK
    HDD Key Lock OK
    HDMI 2EA ( Playback/Setup → HDMI1)
    HDMI1 : 3840x2160 30Hz
    HDMI2 : 1920x1080 60Hz
    Audio Out 1EA
    Ethernet RJ-45 3EA (LAN/WAN, 1Gbps)
    Alarm In 8EA, Out 4EA
    USB 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0)
    Power inlet AC 1EA
    System
    Log
    Log List Max. 100,000 (System Log, Event Log each)
    System Control Mouse, Web, Controller (SPC-2000)
    Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
    Environmental
    Operating Temperature 0°C to +40°C(32℉ to 104℉)
    Operating Humidity 20% ~ 85% RH
    Electrical
    Power Input 100 ~ 240 VAC ±10%; 50/60 Hz, 1.7A (Single SMPS)
    Power Consumption Max. 160W (with 10TB HDD 8EA)
    Mechanical
    Color / Material Black / Metal
    Dimension (WxHxD) 438 x 86 x 434.9 mm
    Weight 9.1Kg (20.1 lb, Except HDD)
    Intelligent Analysis
    AI Search
    Object Attribute Compatible for Wisenet AI Camera
