Hanwha / Samsung

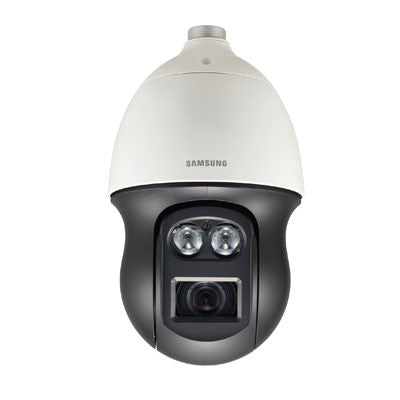

Hanwha PNP-9200RH 4K 20x Zoom IR PTZ Network Camera
Hanwha PNP-9200RH Features
- Max Resolution: 3840 x 2160 (8MP)
- Image Sensor: 1/2.5" 8M CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color : 0.3Lux / F1.6 (1/30sec, F1.8, 50IRE), 0.005Lux (2sec, F1.8, 50IRE); 0.1Lux / F1.6 (1/30sec, F1.8, 30IRE), 0.0005Lux (2sec, F1.8, 30IRE); B/W : 0Lux (IR LED on)
- IR Illuminators: Yes
- IR Illuminator Range: 200m (656.17ft)
- Lens Type: DC auto iris (IR corrected) / Board-in type
- Focal Length: 4.8 ~ 96mm
- Zoom: 20x optical zoom, 16x digital zoom, area zoom function support digital zoom 2x
- Pan Range: 360° endless
- Tilt Range: 190˚ (-5˚ ~185˚)
- Number of Presets: 300 preset positions
- Focus: AF / One-shot AF / Manual
- Field of View: H : 65.1˚(Wide) ~ 3.8˚(Tele) / V : 38.4˚(Wide) ~ 2.2˚(Tele)
- Compression Styles: H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
- Frame Rate: H.265 / H.264 : 30fps at all resolutions, MJPEG : 15fps at all resolutions
- WDR Technology: Yes, 120 dB
- Image Settings: Camera Title, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror, Intelligent Video Analytics (Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection - with metadata)
- Privacy Mask: Yes, Off / On (16 zones of rectangle zone)
- Built-in Microphone: No
- Audio Capabilities: Supports Bi-directional audio via Selectable (Mic in / Line in), & Line out (3.5mm mono jack)
- Alarm/Event Management: Alarm input, Motion detection, Intelligent video analytics, Network disconnect, File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, PTZ preset
- ONVIF: YES
- Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
- Users: 15 users at unicast mode
- On-board Storage: SD/SDHC/SDXC slot (128GB max, not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66 Weatherproof, IK10 Vandal proof
- Dimensions: Ø236.9 x 407.7mm (Ø9.33" x 16.05")
- Weight: 7.1Kg (15.65 lb)
- Operating Temperature: -50°C ~ +55°C (-58°F ~ +131°F)
- Operating Humidity: less than 90% RH
- Power/Consumption: 24V AC / Max. 60W/90W (Heater off/on, IR on)
- Warranty: 3 Years
Hanwha PNP-9200RH Overview
The PNP-9200RH features 20x optical zoom lens and IR viewable length up to 656ft enabling users to capture 4K high quality images anytime, anywhere. Additionally, Endless 360° pan rotation and 190° tilt control, advanced Auto Tracking functions are suitable to make your monitoring more powerful, mechanical anti-vibration.
