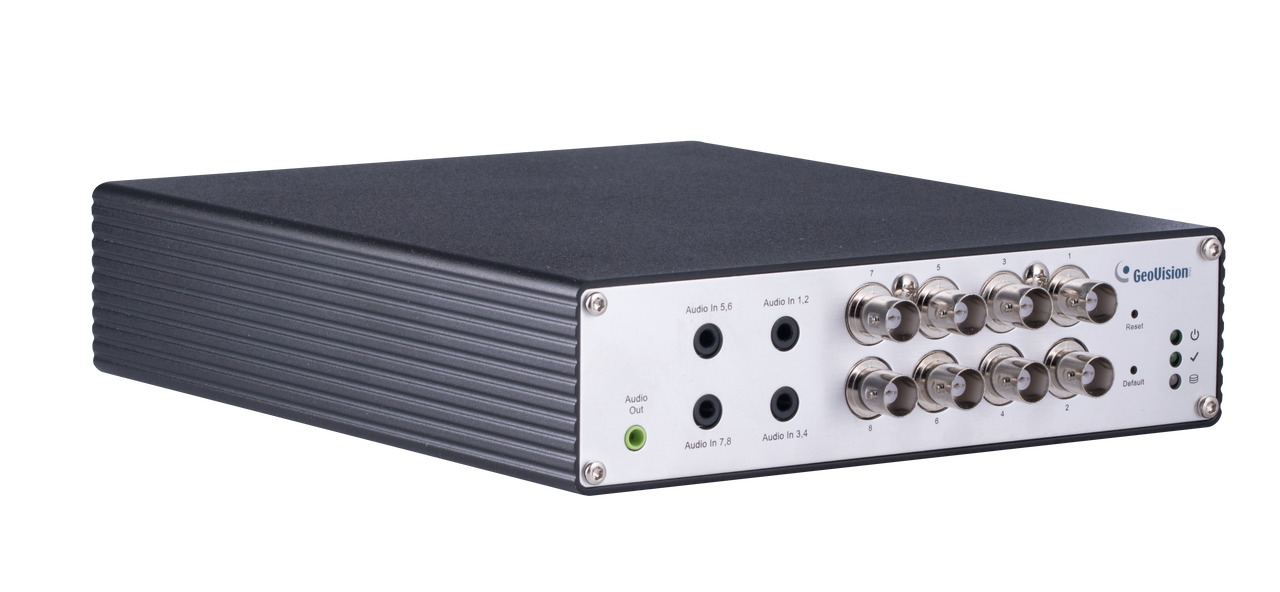

Geovision GV-VS2800 GV-VS2800 8CH Video Server (TVI)

GV-VS2800 is a powerful H.264 HD Video Encoder with compact size and supports 8 channels of TVI 18 fps at 3 M, 15 fps at 4 M and 12 fps at 5 M, 1080p / 720p and analog 960H / D1 real-time video. It can be fully integrated with GV-DVR / NVR / VMS to form a powerful IP surveillance solution. GV-VS2800 converts analog signals into high-resolution digitized images up to 4 megapixels and supports over 50 PTZ models to fulfill various project demands. It can record videos to a local USB storage, performing as a compact video recorder. It is also able to trigger Tampering Alarm alerts when cameras are tampered with, which can prevent criminal activities.

• H.264
• 8-channel TVI 18 fps at 3 MP, 15 fps at 4 MP and 12 fps at 5 MP
• 8-channel TVI 1080p / 720p and analog 960H / D1 real-time video
• 12V DC
• Tampering alarm
• USB HDD Storage
• Support UMTS / 3G / 3.5G / 4G
• Automatic switch between WiFi and 3G / 4G
• Smart streaming
• Support over 50 PTZ models
• Support 29 languages on Web interface
• HD-TVI 1.0 / 2.0 standard
• ONVIF (Profile S) conformant

Note:

• Smart streaming is only supported by GV‐DVR / NVR V8.7.0.0 or later and GV‐VMS V16.10.3 or later
• It is required to apply patch files to all the supported software mentioned above except GV-VMS and GV-Center V2.
• GV‐HD Video Encoder cannot work with microphones that acquire power from the unit. Use microphones that have external power supply.
• GV-VS2800 supports 1 external hard disk (2.5" or 3.5") with up to 6 TB capacities.
• It is not recommended to use the flash USB drive with GV-VS2800 because of its slow read and write speed.
• Product design and specifications are subject to change without notice.

Accessories

GV-Relay V2			Working with the GV-Relay V2, the GV-Video Server is capable of driving the loads of relay outputs over 5 volts.
GV-WiFi Adaptor V2		The WiFi Adaptor V2 is designed to connect the GV IP devices, such as GV-Video Server, to the wireless network.
3.5 mm Stereo to RCA Cable		3.5 mm Stereo to RCA Cable is served as an audio adapter for microphones with RCA connectors.
Wall Hook			Wall Hook is used to mount GV-Video Server to the wall.
DIN-rail Hook			DIN-rail Hook is used to mount GV-Video Server to a 35-mm (1.38-in) DIN rail.
Rack Mount			Rack Mount is used to mount up to 2 video servers to a 19-in (482.6-mm) rack.
