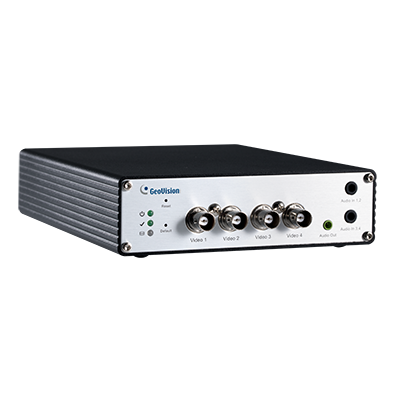

Geovision GV-VS2401 GV-VS2401 4CH H.264 1080P Video Server (TVI/AHD)

GV-VS2401 is a powerful H.264 HD Video Encoder with compact size. It supports 4-channel 3 MP, 5 MP, 1080p / 720p or analog 960H / D1 real-time video. It can be fully integrated with GV-DVR / NVR / VMS to form the most powerful IP surveillance solution. The HD Video Encoder converts analog signals into high-resolution digitized images of up to 5 megapixels and supports over 50 PTZ models to fulfill various project demands. GV-VS2401 can record videos to a local USB storage, performing as a compact video recorder. It is also able to trigger Tampering Alarm alerts when the cameras are tampered with, which can be used to prevent criminal activities.

• H.264
• 4-channel combo 18 fps at 3 MP, 15 fps at 4 MP, 12 fps at 5 MP
• 4-channel combo 1080p / 720p and analog 960H / D1 real-time video
• 12V DC
• Tampering alarm
• USB HDD Storage
• Support UMTS / 3G / 3.5G / 4G
• Automatic switch between WiFi and 3G / 4G
• Support over 50 PTZ models
• Support 29 languages on Web interface
• HD-TVI (1.0 / 2.0 standard) / HD-AHD
• ONVIF (Profile S) conformant

Note:

• The GV‐HD Video Encoder cannot work with microphones that acquire power from the unit. Use microphones that have external power supply.
• GV-VS2401 supports 1 external hard disk (2.5"or 3.5") with up to 8 TB capacities.
• It is not recommended to use the flash USB drive with GV-VS2401 because of its slow read and write speed.
• When transmitting video signals over a long distance, it is highly recommended to use 5C-FB coaxial cables or above to minimize the degradation of image quality. The transmission distance should be within 300 m (984 ft).
• Product design and specifications are subject to change without notice.

Accessories

DC Male-to-Male Cable / DC 1-Male to 4-Female Cable			DC Male-to-Male Cable and DC 1-Male to 4-Female Cable are both used to power the cameras through the GV-Video Server. For instance, you can purchase four DC Male-to-Male Cables and one DC 1-Male to 4-Female Cable to power four cameras through the GV-Video Server.
GV-Relay V2			Working with the GV-Relay V2, the GV-Video Server is capable of driving the loads of relay outputs over 5 volts.
GV-WiFi Adaptor V2		The WiFi Adaptor V2 is designed to connect the GV IP devices, such as GV-Video Server, to the wireless network.
Wall Hook			Wall Hook is used to mount GV-Video Server to the wall.
DIN-rail Hook			DIN-rail Hook is used to mount GV-Video Server to a 35-mm (1.38-in) DIN rail.
Rack Mount			Rack Mount is used to mount up to 3 video servers to a 19-in (482.6-mm) rack.
