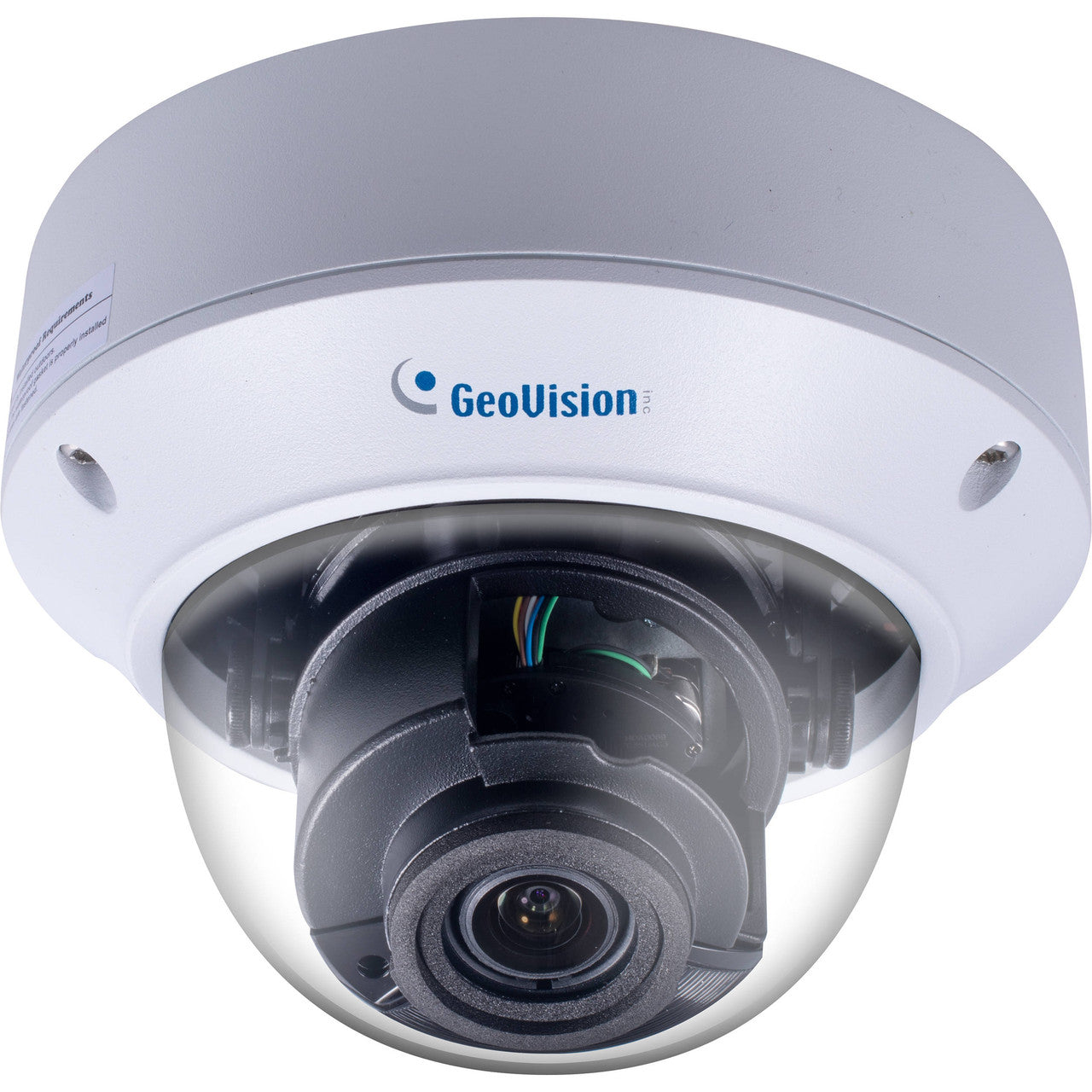

GeoVision GV-TVD8710 8MP Low Lux Vandal Proof Dome Network Camera

Geovison GV-TVD8710 Specifications

Camera

• Image Sensor: 1/2” progressive scan super low lux CMOS
• Picture Elements: 3840 (H) x 2160 (V)

• Minimum Color: 0.003 Lux (F1.5, AGC ON) Illumination IR ON 0 Lux

• Shutter Speed: Auto / Manual (1/6 ~ 1/100000 sec)

• White Balance: Auto / Manual

• Gain Contro:l Auto / Manual

• S/N Ratio: 56 dB

• WDR: Yes

• Dynamic Range: Up to 120 dB




Lens

• Megapixel: 8 MP
• Day / Night: Yes (with removable IR‐cut filter)
• Lens Type: Motorized varifocal lens
• Focal Length: 2.8 ~ 12 mm
• Maximum Aperture: F/1.5
• Mount: Ø14 mm
• Horizontal FOV: 114.8 ~ 47.3°
• IR LED Quantity: 2 IR LED
• Max. IR Distance: 30 m (100 ft)

Operation

• Video Compression: H.265, H.264, MJPEG
• Video Streaming: Triple streams

Video Resolution

• Main Stream: 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
• Sub Stream: 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
• Third Stream: (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288
• Frame Rate: 20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
• Video Analytics: Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion, Object Moving, Object Left, Defocus, Scene Change, Face Detection, People Counting *Tampering alarm, audio detection, cross line, intrusion, object moving, object left, defocus, scene change, face detection and people counting are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP

Network

• Interface:10/100 Ethernet
• Protocol: 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Camera Angle Adjustment: Pan 0° ~ 360°, Tilt 0° ~ 80°,
• Connectors: DC Jack (DV 12V, 1.25A), PoE
• Ethernet: RJ‐45

General

• Operating Temperature: ‐40 ~ 60°C (‐22 ~ 140°F)
• Humidity: 0 ~ 95% (no condensation)
• Power Source: 12 V DC / PoE (IEEE802.3af)
• Max. Power Consumption: 8 W
• Dimensions: Ø148 x 111.3 mm (Ø5.8 x 4.4”)
• Weight: 0.75 kg (1.7 lb)
• Ingress Protection: IP67
• Vandal Resistance: IK10 for metal casing
• Regulatory: FCC, CE, RoHS compliant

Web Interface

• Installation: Web‐based configuration
• Maintenance: Firmware upgrade through Web Browser or Utility
• Access from Web Browser: Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking
• Language: Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Applications

• Software Supported: GV­DVR / NVR (V8.8.0), GV­VMS (V17.1.0.100), GV­Control Center (V3.5.1), GV‐Edge Recording Manager Windows (V1.4.0), GV‐Recording Server / Video Gateway (V1.4.2), GV­Redundant / Failover Server (V1.1.0.0)
• Smart Device Access: GV‐Eye for iOS and Android
• Live Viewing Browser: (IE, Edge, Chrome, Firefox), Mobile App

Geovison GV-TVD8710 Overview

The GV-TVD8710 Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD8710 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.
