GeoVision GV-TVD4710 4MP Low Lux  Vandal Proof Dome Network Camera
GeoVision GV-TVD-4710 Specifications
GeoVision GV-TVD-4710 Specifications
GeoVision GV-TVD4710 4MP Low Lux  Vandal Proof Dome Network Camera

GeoVision

GeoVision GV-TVD4710 4MP Low Lux Vandal Proof Dome Network Camera

Sale price$319.00
SKU: GEV-84-TVD4710-0010
Quantity:

Contact

Geovison GV-TVD4710 Specifications

Camera

  • Image Sensor: 1/3" progressive scan low lux CMOS
  • Picture Elements: 2592(H) x 1520 (V)
  • Minimum Color: 0.005 Lux (F1.4, AGC ON) Illumination IR ON 0 Lux

  • Shutter Speed: Auto / Manual (1/6 ~ 1/100000 sec)

  • White Balance: Auto / Manual

  • Gain Contro:l Auto / Manual

  • S/N Ratio: 56 dB

  • WDR: Yes

  • Dynamic Range: Up to 120 dB


Lens

  • Megapixel: 4 MP
  • Day / Night: Yes (with removable IR‐cut filter)
  • Lens Type: Motorized varifocal lens
  • Focal Length: 2.8 ~ 12 mm
  • Maximum Aperture: F/1.4
  • Mount: Ø14 mm
  • Horizontal FOV: 91 ~ 27°
  • IR LED Quantity: 2 IR LED
  • Max. IR Distance: 30 m (100 ft)

Operation

  • Video Compression: H.265, H.264, MJPEG
  • Video Streaming: Triple streams

Video Resolution

  • Main Stream: 2592 x 1520 (Default), 2048 x 1520, 1920 x 1080
  • Sub Stream: 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
  • Third Stream: (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288
  • Frame Rate: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
  • Video Analytics: Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion, Object Moving, Object Left, Defocus, Scene Change, Face Detection, People Counting *Tampering alarm, audio detection, cross line, intrusion, object moving, object left, defocus, scene change, face detection and people counting are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP

Network

  • Interface:10/100 Ethernet
  • Protocol: 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

  • Camera Angle Adjustment: Pan 0° ~ 360°, Tilt 0° ~ 80°,
  • Connectors: DC Jack, PoE
  • Ethernet: RJ‐45

General

  • Operating Temperature: ‐40 ~ 60°C (‐22 ~ 140°F)
  • Humidity: 0 ~ 95% (no condensation)
  • Power Source: 12 V DC / PoE (IEEE802.3af)
  • Max. Power Consumption: 7.2 W
  • Dimensions: Ø148 x 111.3 mm (Ø5.8 x 4.4”)
  • Weight: 0.75 kg (1.7 lb)
  • Ingress Protection: IP67
  • Vandal Resistance: IK10 for metal casing
  • Regulatory: FCC, CE, RoHS compliant

Web Interface

  • Installation: Web‐based configuration
  • Maintenance: Firmware upgrade through Web Browser or GV‐IP Device Utility (V8.7.2.1)
  • Access from Web Browser: Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking
  • Language: Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Applications

  • Software Supported: GV­DVR / NVR (V8.8.0), GV­VMS (V17.1.0.100), GV­Control Center (V3.5.1), GV‐Edge Recording Manager Windows (V1.4.0), GV‐Recording Server / Video Gateway (V1.4.2), GV­Redundant / Failover Server (V1.1.0.0)
  • Smart Device Access: GV‐Eye for iOS and Android
  • Live Viewing Browser: (IE, Edge, Chrome, Firefox), Mobile App

Geovison GV-TVD4710 Overview

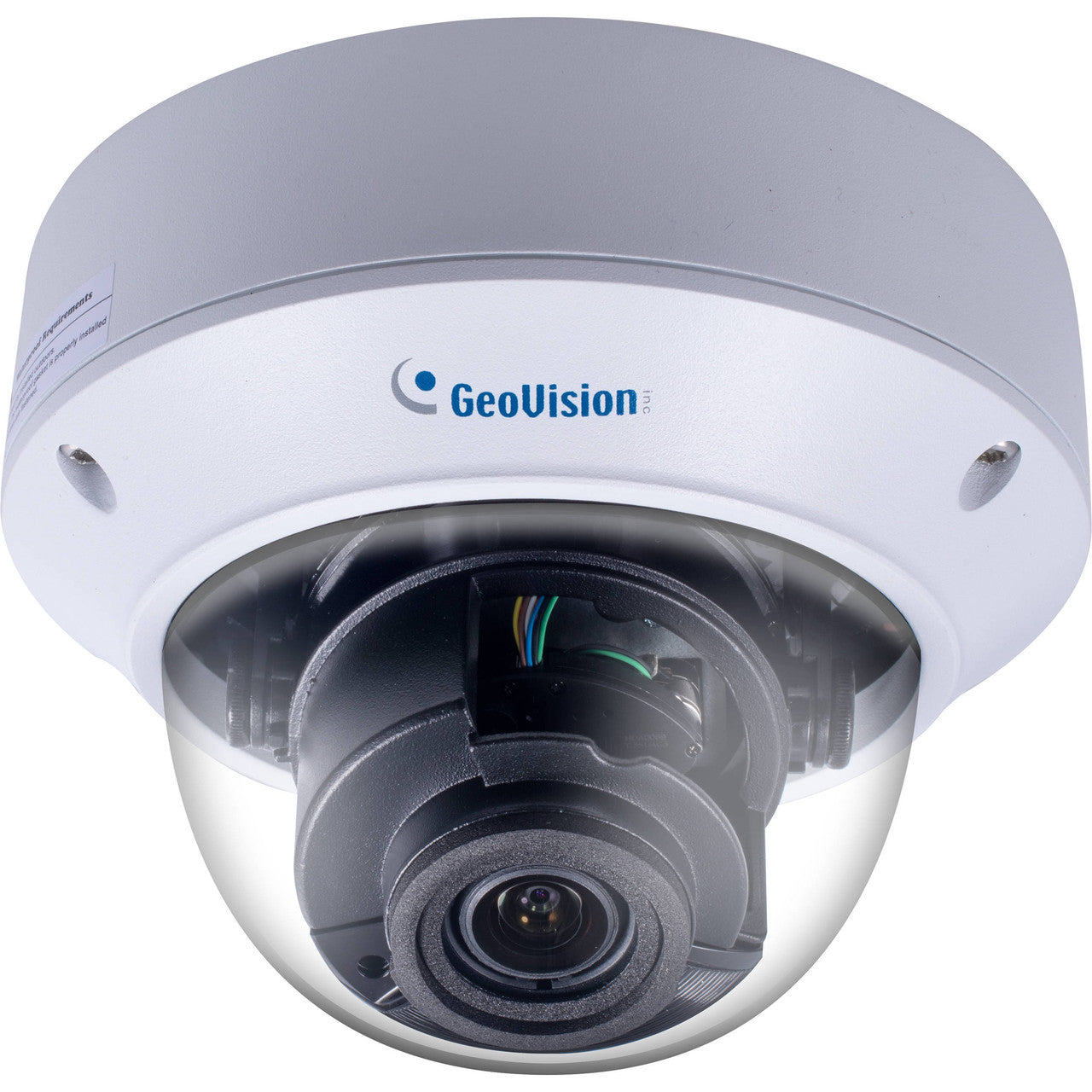

The GV-TVD4710 Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD4710 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.
