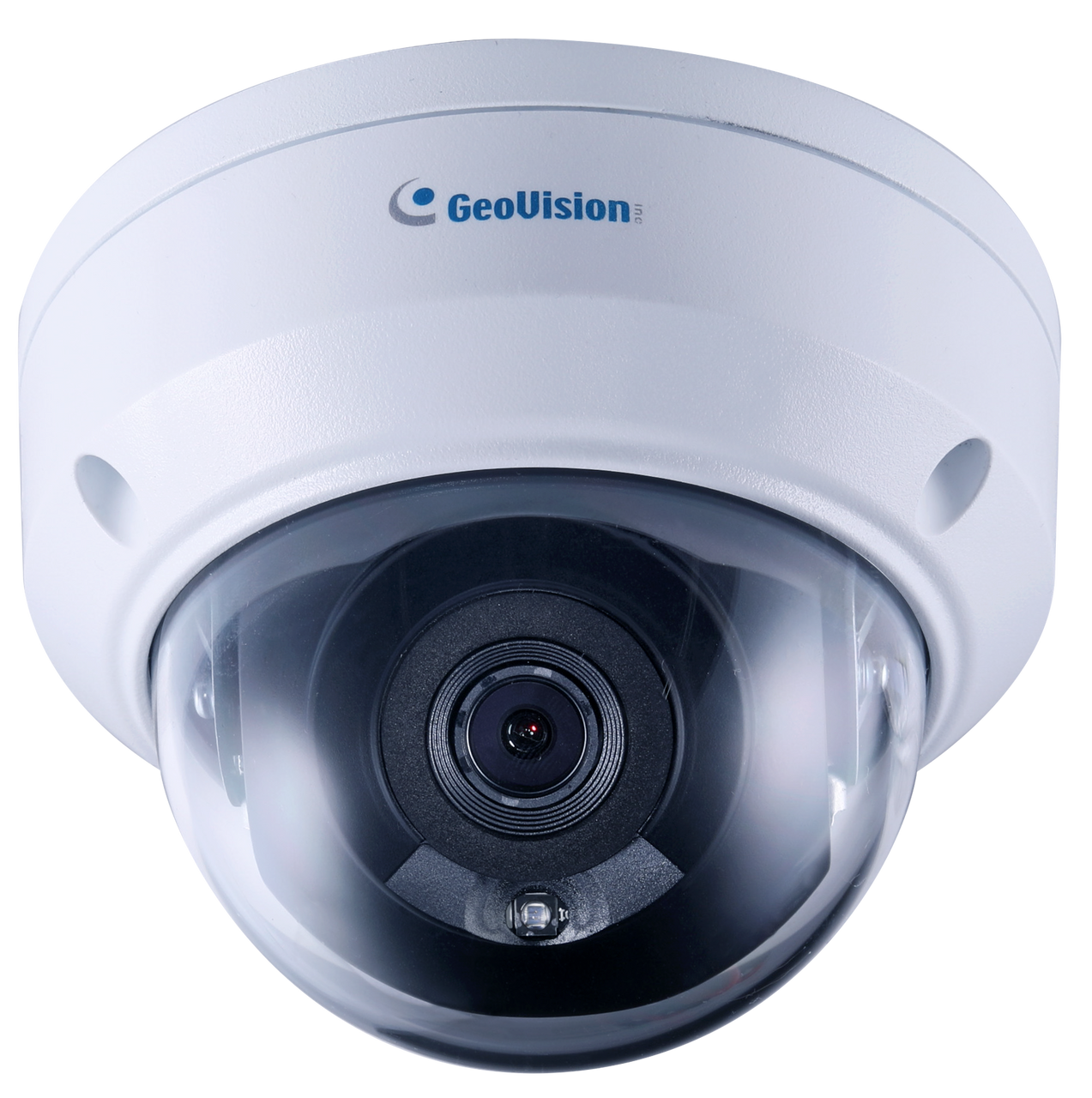

Geovision GV-TDR4703-2F 4MP 2.8mm Low Lux WDR Pro Mini Fixed IP Dome H.265

GV-TDR4703 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.

• 1/3" progressive scan super low lux CMOS
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2688 x 1520
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Day and Night function (with removable IR-cut filter)
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Two-way audio
• One sensor input and one alarm output
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• 3D noise reduction
• Motion detection
• Text overlay
• Privacy mask
• ONVIF (Profile G, S, T) conformant

Model No	Name	Details
GV-Mount107	Pendant Bracket		Dimensions: Φ120 x 334 mm (Φ4.72" x 13.15") Weight: 0.74 kg (1.63 lb) *must be used with GV-Mount213
GV-Mount211P	Wall Mount and Junction Box		Dimensions: Φ233 x 126 x 126 mm / (Φ9.2 x 5 x 5") Weight: 1 kg (2.2 lb)
GV-Mount213	Wall / Ceiling Box Mount		Dimensions: Φ109 x 39 mm (Φ4.3" x 1.5") Weight: 0.2 kg (0.44 lb)
GV-Mount300-2	Convex Corner Mount		Dimensions: 137 x 233 x 160 mm (5.4" x 9.17" x 6.3") Weight: 1.65 kg (3.64 lb)
GV-Mount310-2	Concave Corner Mount		Dimensions: 111.2 x 369.9 x 210 mm (2.6" x 11.4" x 6.6") Weight: 1.65 kg (3.64 lb)
GV-Mount420	Pole Mount Bracket		Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7" x 4.7" x 2.1") Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6"~ 5") *must be used with GV-Mount211P
GV-Mount704	Extension Tube		Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7") Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) *must be used with GV-Mount107
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
