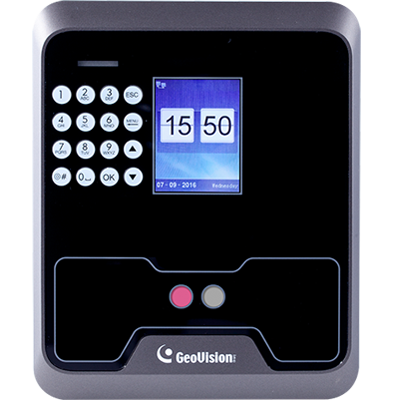

GeoVision GV-FR2020 Face Recognition Reader

Features

• 2.4" TFT color screen, 320 x 240 pixel display
• Special stereo dual sensors (Lens and IR sensor)
• Up to 80 cm (31. 50 in) detection range
• 2000 face capacity
• ≤ 0.5 second verification speed
• 16-bit Hi-Fi voice and sound indication
• 12V DC, 2 A (only for standalone operation) / PoE+ (IEEE 802.3at)
• Built-in 13.56 MHz Reader
• Work with GV-AS21 / 41 / 81 series Controller and GV-ASManager
• Can work as a standalone reader
• Two (2) access modes for the integration with GeoVision controller and software: Face Recognition mode or Card mode
• Anti-Passback (APB) support
• CE, FCC compliant

Note:

• For data synchronization with GV-AS Controller and GV-ASManager through the Ethernet, it only supports the following controller firmware version and software version:
• GV-ASManager: V4.4.2 or later
• GV-AS210 / 2110 / 2120: V1.41 or later
• GV-AS410 / 4110: V1.41 or later
• GV-AS810 / 8110: V1.41 or later

Overview

The face recognition reader can work with GV-AS Controller and GV-ASManager to create a complete access control system. Two types of operation modes are supported: Face Recognition or Card.
