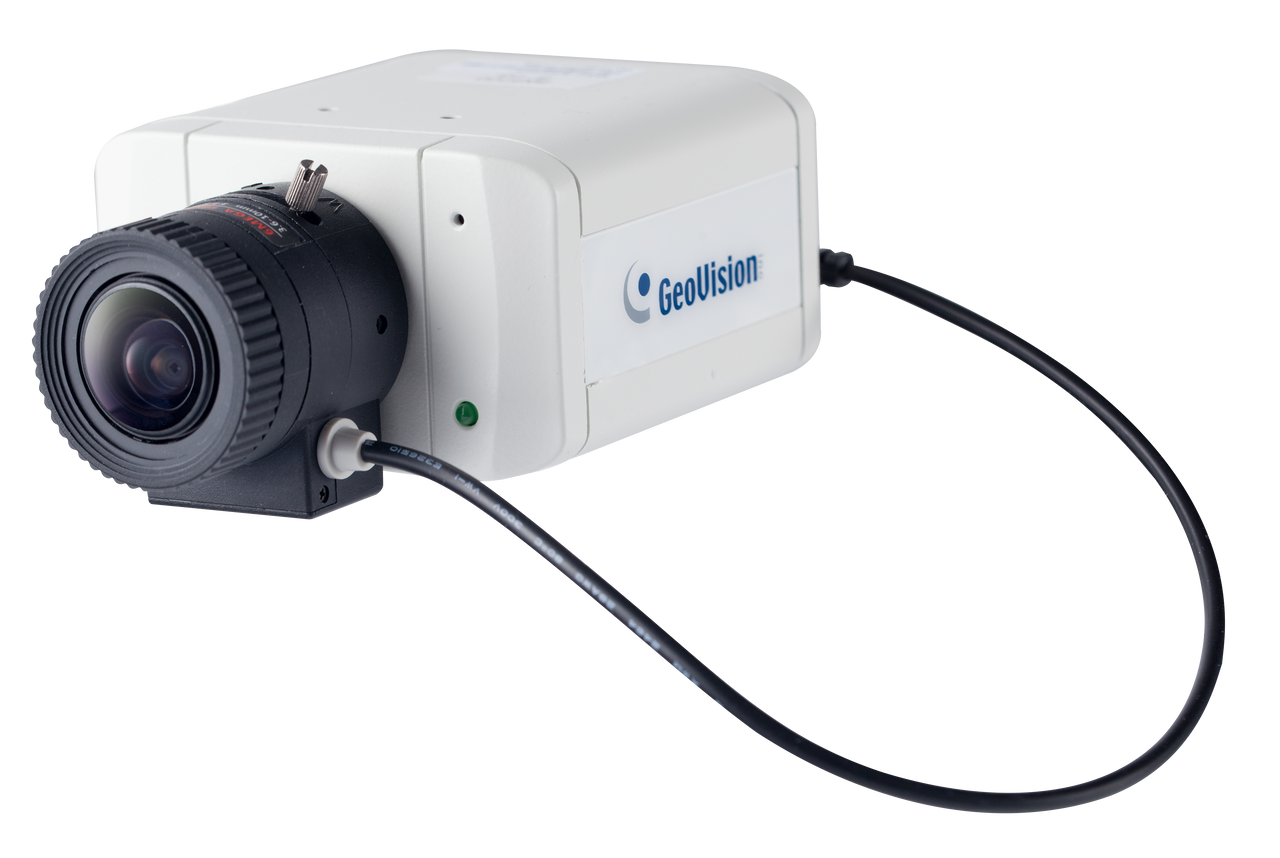

Geovision GV-BX8700 8MP 3.6-10mm Super Low Lux WDR Pro Box IP Camera H.265

GV-BX8700 supports H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a super low lux CMOS image sensor which allows the camera to provide a color live view in near darkness. It also features a mini USB port for wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.

• 1/2" progressive scan super low lux CMOS sensor
• Min. illumination at 0.03 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 3840 x 2160
• P-Iris for auto iris adjustment
• Built-in / external microphone
• Two-way audio
• One sensor input and one alarm output
• TV-out support
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
• Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
• Mini USB slot for WiFi Adapter or USB hard drive
• Wide Dynamic Range Pro (WDR Pro)
• 3D noise reduction
• Smart streaming
• Defog
• Privacy mask
• IP address filtering
• DC 12V / PoE (IEEE 802.3af)
• Day and Night function (with removable IR-cut filter)
• Megapixel varifocal lens
• Supports iPhone, iPad, Android & 3GPP
• 31 languages on Web interface
• ONVIF (Profile S, T) conformant

Model No	Name	Details
GV-Mount300-1	Convex Corner Adapter Kit		Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2") Weight: 4.27 kg (9.41 lb)
GV-Mount310-1	Concave Corner Adapter Kit		Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2") Weight: 2.96 kg (6.53 lb)
GV-Mount400-1	Pole Mount Bracket Kit (Ø 4 ~ 6")		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410-1	Pole Mount Bracket Kit (Ø 6 ~ 7.5")		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Housing102	Housing Box (with heater and fan)		Dimensions: 406 x 145 x 109 mm (16 x 5.7 x 4.3") Weight: 4.69 kg (10.34 lb) (including Supporting Tube) Start-up Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Operation Temperature: ‐40°C ~ 50°C (-40°F ~ 122°F) Heater: 15°C (59°F) On / 25°C (77°F) Off Fan: 35°C (95°F) On / 25°C (77°F) Off Power board: 24V AC / 12V DC input GV-BX5700-8F not supported
GV-Housing103	Housing Box (with IR)		Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12") Weight: 7 kg (15.43 lb) Start-up Temperature: ‐20°C ~ 50°C (‐4°F ~ 122°F) Operation Temperature: ‐30°C ~ 50°C (‐22°F ~ 122°F) IR: 6 IR LEDs with up to 60m (196.85ft) IR effective distance Power: 12V DC, 1A input GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
Supporting Rack			Dimensions: Ø 58 x 120 mm (2.28" x 4.72") Weight: 0.1 kg (103 g)
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2			The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-WiFi Adaptor V2			Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10") Weight: 0.01 kg (0.02 lb)
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
