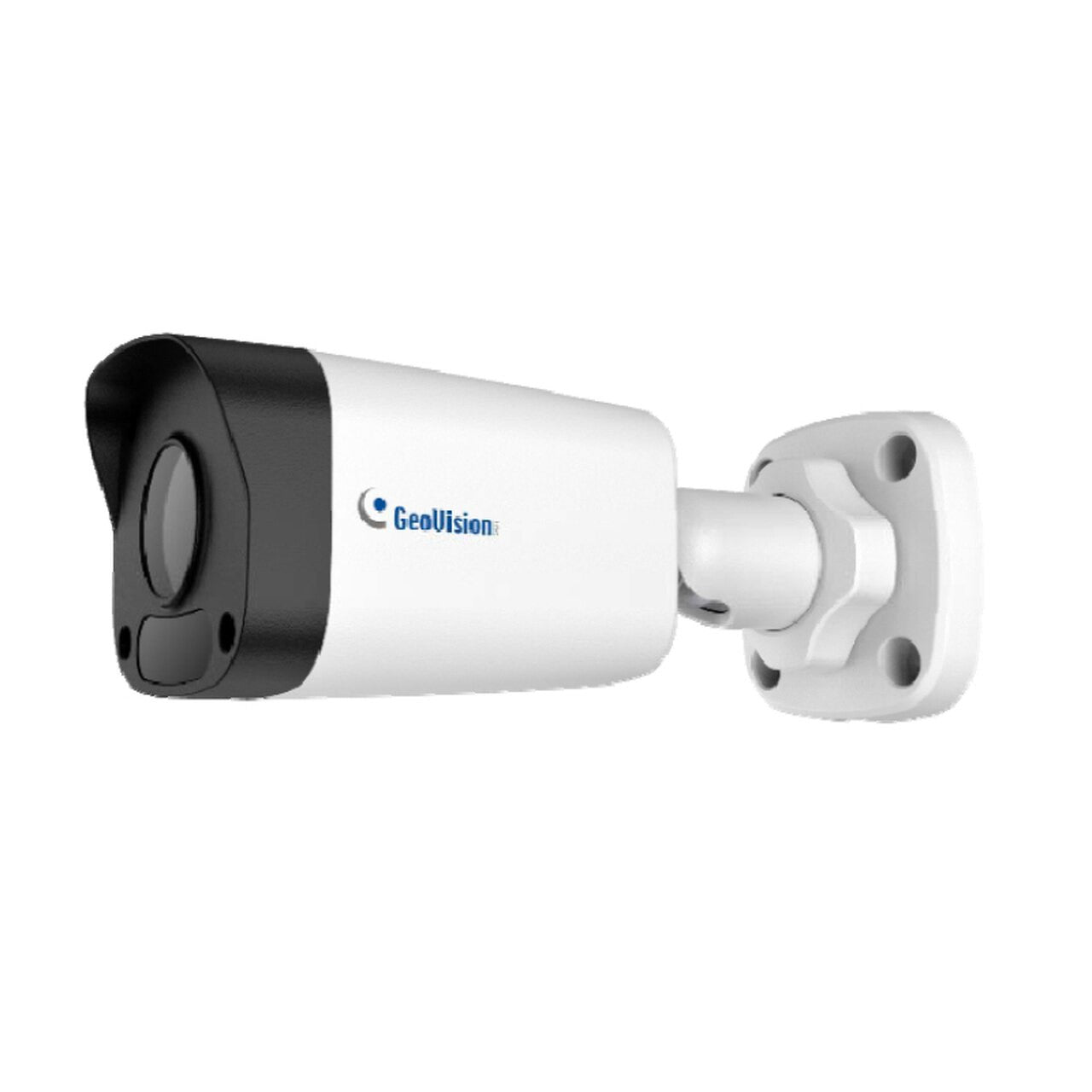

GeoVision GV-ABL4703-0F 4MP 4mm WDR Bullet Network Camera

Geovison GV-ABL4703-0F Specifications

Camera

• Image Sensor: 1/3" progressive scan low lux CMOS
• Picture Elements: 2592 (H) x 1520 (V)

• Minimum Color: 0.03 Lux (F2.0, AGC ON) Illumination IR ON 0 Lux

• Shutter Speed: Auto / Manual (1/6 ~ 1/100000 sec)

• White Balance: Auto / Manual

• Gain Contro:l Auto / Manual

• S/N Ratio: 52 dB

• WDR: Yes

• Dynamic Range: Up to 72 dB




Lens

• Megapixel: 4 MP
• Day / Night: Yes (with removable IR‐cut filter)
• Lens Type: Fixed
• Focal Length: 4 mm
• Maximum Aperture: F/2.0
• Mount: M12
• Horizontal FOV: 80°
• IR LED Quantity: 1 IR LED
• Max. IR Distance: 30 m (98.4 ft)

Operation

• Video Compression: H.265, H.264, MJPEG
• Video Streaming: Triple streams from H.265, H.264 or MJPEG

Video Resolution

• Main Stream: 2592 x 1520 (Default), 2048 x 1520, 1920 x 1080
• Sub Stream: 1280 x 720, 704 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
• Third Stream: (Closed by Default) 704 x 576, 704 x 288, 640 x 360, 352 x 288
• Frame Rate: 20 fps at 2592 x 1520 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
• Video Analytic:s Motion Detection, Tampering Alarm
• Image Setting: Brightness, Contrast, Saturation, Sharpness, Flicker‐less, Image Orientation

Network

• Interface:10/100 Ethernet
• Protocol: ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QoS, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile S, T)

Mechanical

• Temperature Detector: No
• Camera Angle Adjustment: Pan 0° ~ 360°, Tilt 0° ~ 90°, Rotate 0° ~ 360°
• Connectors: Power DC Jack (DC 12V, 1.25A), PoE, Ethernet RJ‐45 connector

General

• Operating Temperature: ‐30°C ~ 60°C (‐22°F ~ 140°F)
• Humidity: 10% ~ 90% (no condensation)
• Power Source: 12 V DC / PoE (IEEE802.3af)
• Max. Power Consumption: 4 W
• Dimensions: 162.9 × 62.4 × 62.7 mm (6.4” × 2.5” × 2.5”)
• Weight: 0.37 kg (0.81 lb)
• Ingress Protection: IP67
• Regulatory: FCC, CE, RoHS compliant

Web Interface

• Installation: Management Web‐based configuration
• Maintenance: Firmware upgrade through Web Browser or Utility
• Access from Web Browser: Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking
• Language: Czech, English, French, German, Italian, Russian, Traditional Chinese

Applications

• Software Supported: GV‐DVR / NVR (V8.8.0), GV‐VMS (V17.2.0), GV‐Control Center (V3.5.1), GV‐Edge Recording Manager Windows version (V1.4.0), GV‐Recording Server / Video Gateway (V1.4.2), GV‐Redundant / Failover Server (V1.1.0.0)
• Smart Device Access: GV‐Eye for iOS and Android
• Live Viewing Browser: (IE, Edge, Chrome, Firefox), Mobile App

Geovison GV-ABL4703-0F Overview

The Geovsion GV-ABL4703-0F Bullet IP Camera is an outdoor network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 standards and can be powered through PoE.
