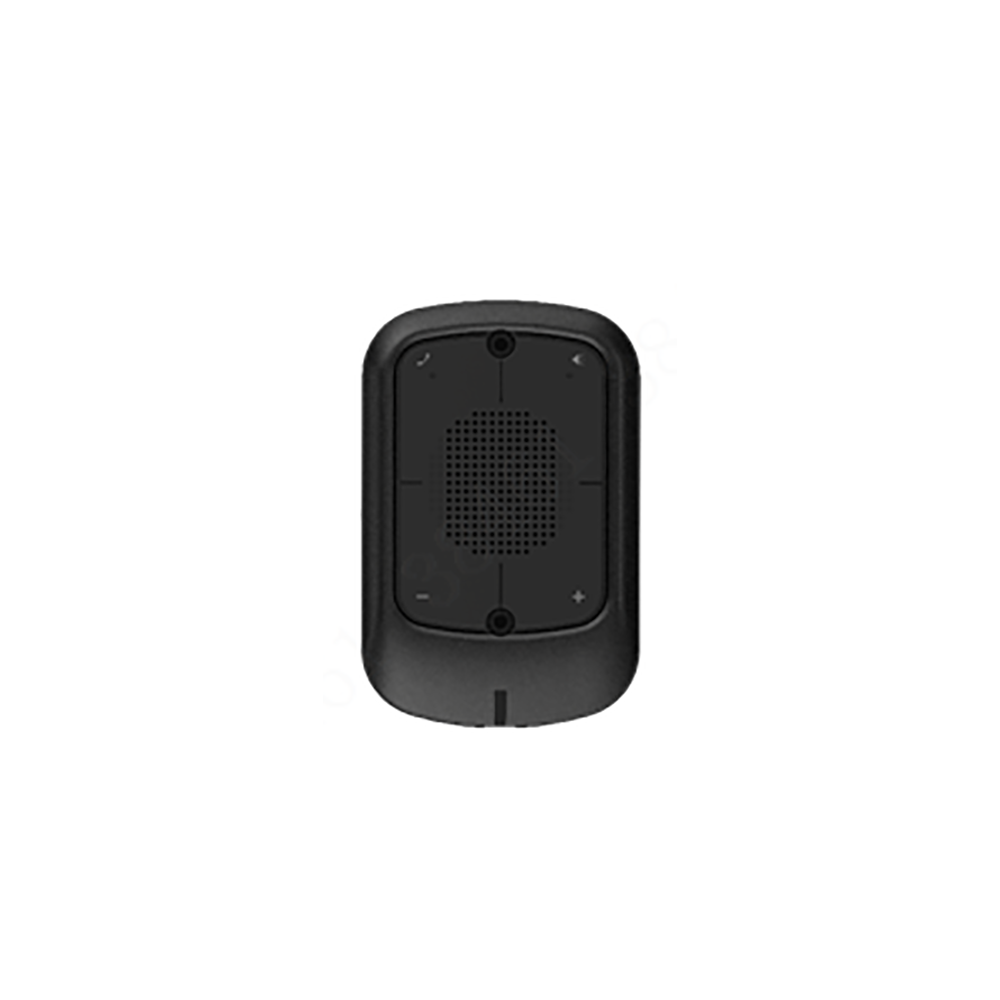

Dahua MP06 Full-Duplex Talkback Terminal

Features

System

• Working Mode Full Duplex
• Operation Mode Button
• Audio Input: One (1) Channel, Output: One (1) Channel, Loudspeaker
• Pickup Range 900 mm (35.43 in.)
• Indicator Lights Two (2)

Electrical

• Power Supply 12 VDC
• Consumption Standard: ≤ 1.5 W
• Peripheral Loudspeaker: 7 W

Construction/Environmental

• Dimensions 109.70 mm x 71.30 mm x 27.0 mm (4.32 in. x 2.81 in. x 1.06 in.)
• Cable Length 1700.0 mm (66.93 in.)
• Operating Temperature –30 °C to 70 °C (–22 °F to 158 °F)
• Operating Humidity 0% to 90%
• Pressure Atmosphere 86 kPa to 106 kPa
