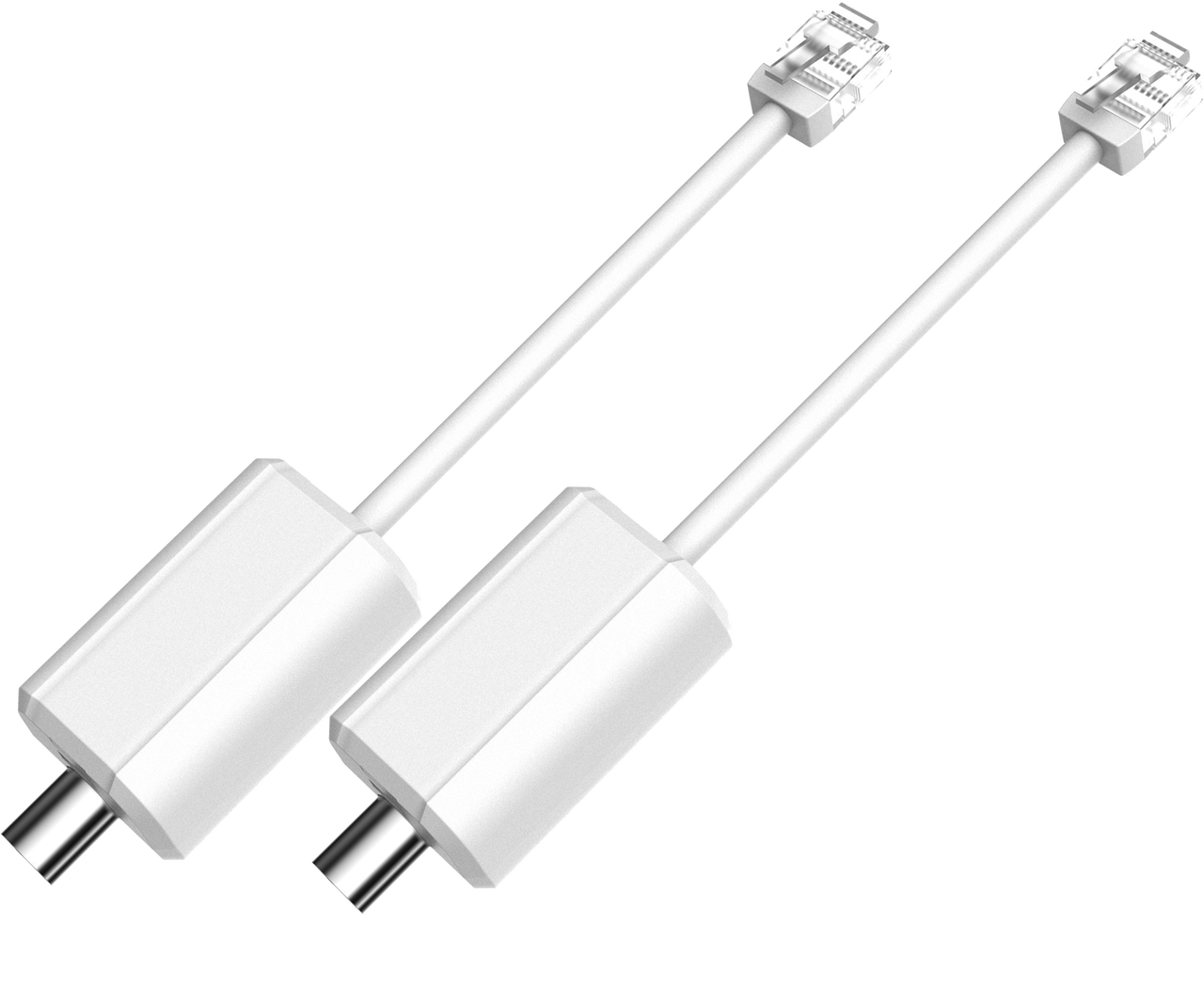

Dahua LR1002 EoC Passive Converter

Dahua

Dahua LR1002 EoC Passive Converter

$17.98
SKU: LR1002
Quantity:
Link to Manufacturer's Page

Dahua LR1002 Features

  • Functional Ports: One (1) RJ45, 10/100 Mbps Base-TX, One (1) BNC
  • Transmission Distance: 100 Mbps: 400 m (1312 ft), 10 Mbps: 1000 m (3280 ft)
  • Power Consumption: < 1 W
  • Transmission Bandwidth: RG59 Coaxial Cable: 400 m (1312 ft) at 100 Mbps, 1000 m (3280 ft) at 10 Mbps
  • PoE Protocol: Based on power input from ePoE Switch or ePoE NVR
  • Network Standards: IEEE802.3, IEEE802.3u
  • Operating Temperature: – 40 °C to 60 °C (– 40 °F to 158 °F)
  • Application Humidity: 0% to 95%
  • Lightning Protection: Common Mode: 6 KV, Differential Mode: 2 KV
  • Dimensions (W x D x H): 56.0 mm x 27.0 mm x 21.0 mm, (2.20 in. x 1.06 in. x 0.83 in.)
  • Weight: 0.283 kg (0.62 lb)
  • Please note: These converter are sold in pairs only and not as individual units so you will receive 2.
  • Depending on your system, the LR1002-1EC or LR1002-1ET may also be required. Please see the attached ePoE Configuration Guide image for more information.
