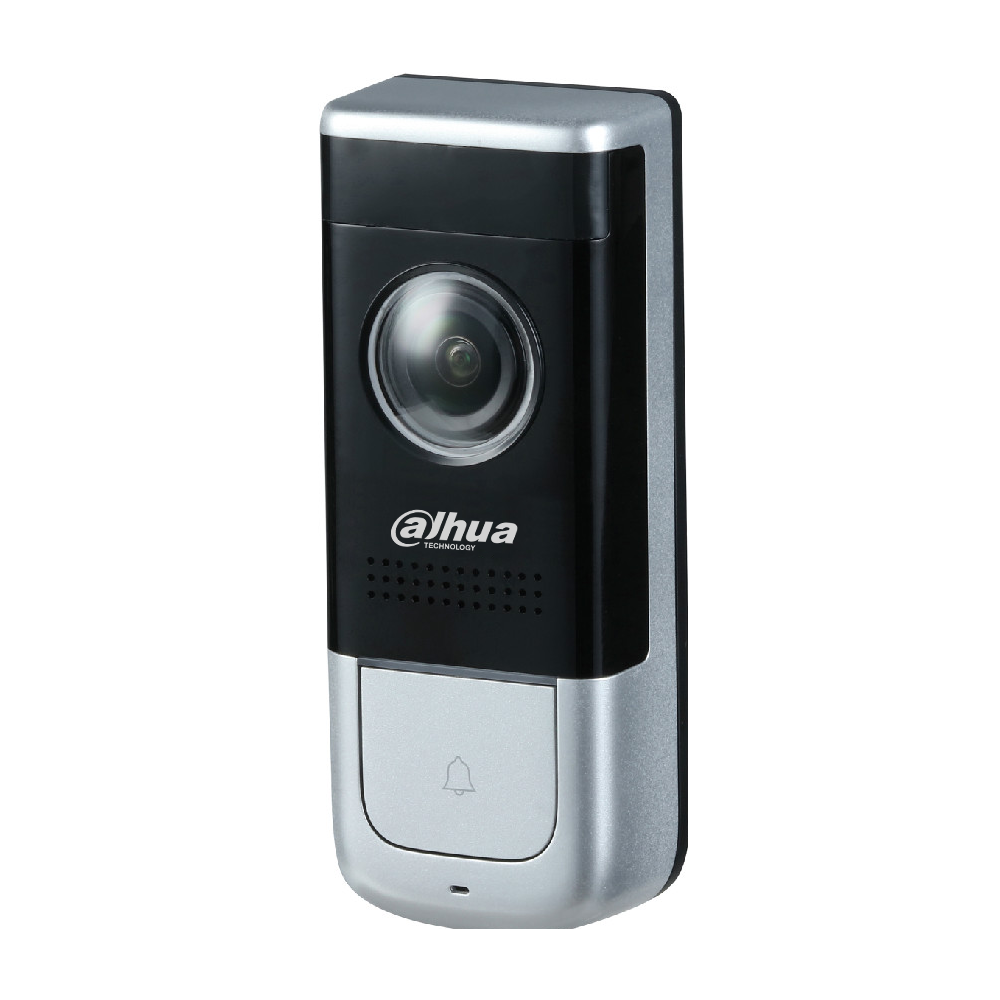

Dahua DHI-DB11 2MP WiFi Video Doorbell Network Camera

Dahua DHI-DB11 Features

Camera

• Image Sensor 1/2.7-in. 2 MP CMOS
• Effective Pixels 1920 x 1080, 2 MP
• Scanning System Progressive
• IR Distance 5.0 m (16.50 ft)

Lens

• Lens Type Fixed
• Focal Length 1.9 mm
• Angle of View Horizontal 140°

Video and Audio

• Video Compression H.264
• Resolution 2 MP at 30 fps
• PIR Configurable area and distance: Coverage: up to 120°, Distance: up to 5.0 m (16.50 ft)

Audio

• Input Built-in Microphone
• Output Built-in Speaker
• Audio Compression G.711

Network

• WiFi 2.4 GHz WiFi (IEEE802.11b/g/n)
• Antenna Internal Dual Antennae, 2 x 2 MIMO
• Interoperability CGI
• Mobile Operating System IOS, Android
• Edge Storage Micro SD Card Slot, maximum 64 GB
• Compatibility Any Dahua NVR, Dahua X5, X7, X82 Series HDCVI DVRs, Dahua DMSS Mobile Application

Certifications

• Safety EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011, + A2:2013
• IEC 60950-1:2005 (2nd Ed.); Am1:2009 + Am2:2013
• Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 subpart B , 201 8, EN 55032:2015; EN 55024:2010; EN 50130-4:2011/A1:2014; EN 61000-3-2:2014; EN 61000-3-3:2013

Electrical

• Power Supply 16 VAC to 24 VAC or 12 VDC/24 VDC
• Power Consumption < 9 W

Environmental

• Operating Temperature –20° C to +50° C (–4° F to 122° F),, Less than 95% RH
• Ingress Protection IP55

Construction

• Casing Plastic
• Dimensions 118.94 mm x 47.0 mm x 29.30 mm (4.68 in. x 1.85 in. x 1.15 in.)
• Net Weight 0.20 kg (0.44 lb)
• Installation Surface-mount

Overview

The DHI-DB11 WiFi Video Doorbell is a component of the Dahua LincX2PRO camera series. The doorbell offers Passive IR motion detection and transmits video and audio to a mobile phone for remote visual confirmation and communication with visitors. This device is compatible with Dahua NVRs; Dahua X5, X7, and X82 Series HDCVI DVRs, and with the DMSS mobile application. The DHI-DB11 offers high-resolution video ideal for indoor and outdoor surveillance at homes and small retail or dining establishments.
