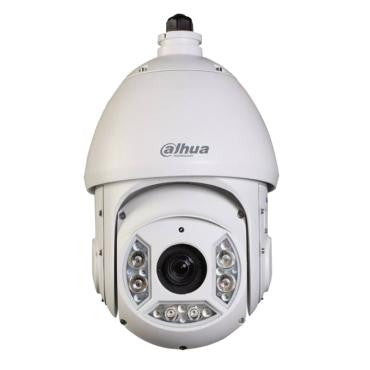

Dahua DH-SD6CA230TN-HNI 2MP PTZ Dome Network Camera

Dahua DH-SD6CA230TN-HNI Features

Camera

• Image Sensor 1/2.8” Exmor CMOS
• Effective Pixels 1920(H) x 1080(V)
• Scanning System Progressive
• Electronic Shutter Speed 1/1 ~ 1/30,000s
• Min. Illumination Color: 0.05Lux@F1.6;
• B/W: 0.005Lux@F1.6
• S/N Ratio More than 50dB
• Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC

Camera Features

• Day/Night Auto(ICR) / Color / B/W
• Backlight Compensation BLC / HLC / DWDR (Digital WDR)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction Ultra DNR (2D/3D)
• Privacy Masking Up to 24 areas
• Digital Zoom 16x

Lens

• Focal Length 4.5mm~135mm
• (30x Optical zoom)
• Max Aperture F1.6 ~ F4.4
• Focus Control Auto / Manual
• Angle of View H: 67.8° ~ 2.77°
• Close Focus Distance 100mm~ 1000mm

PTZ

• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
• Preset Speed Pan: 240° /s; Tilt: 200° /s
• Preset 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
• Protocol DH-SD, Pelco-P/D (Auto recognition)
• IR Distance 100m (2 near IR LED+ 4 far IR LED)

Video

• Compression H.264H/H.264B/H.264/ MJPEG
• Resolution 1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF
• (352×288/352×240)
• Frame Rate Main Stream 1080P/ D1 (1 ~ 30fps), 720P(1~60fps)
• Sub Stream 1 D1/CIF(1 ~ 30fps)
• Sub Stream 2 720P/D1/ CIF (1 ~ 30fps)
• Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

• Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
• Interface 1/1 channel In/Out

Intelligent Function

• IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection,
• Face Detection Support

Network

• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Compatibility ONVIF PSIA CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

• Memory Slot Micro SD, Max 128GB
• RS485 1
• Alarm 2/1 channel In/Out

General

• Power Supply AC 24V/3A
• Power Consumption 10.5W, 26W (IR on, Heater on)
• Working Environment -40ºC ~ 60ºC / Less than 90% RH
• Ingress Protection IP66
• Dimensions Φ204.7(mm) x 359.9(mm)
• Weight 5kg
• Included Accessories: AC power adapter, mounting adapter, and Wall Mount Bracket
