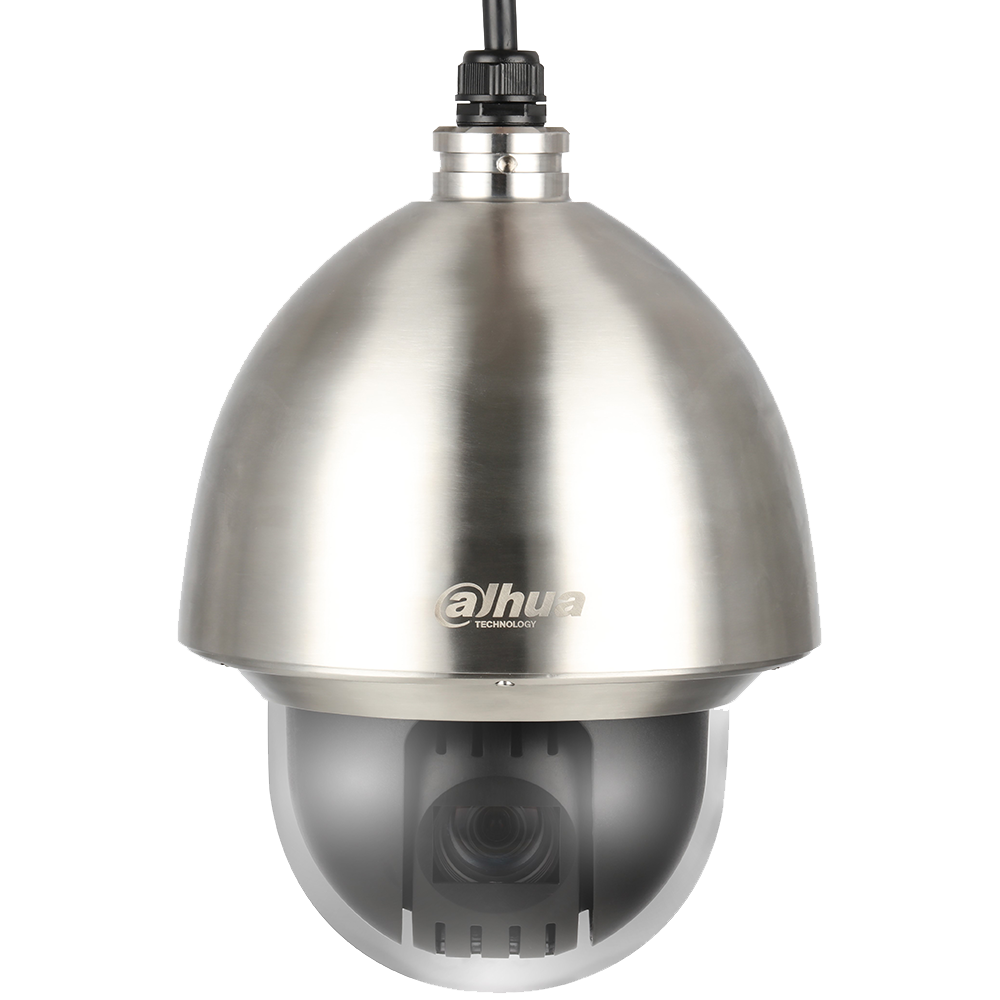

Dahua DH-SD60230UN-HNI-SL 2MP 30x Corrosion-resistant PTZ Network Camera

Features

Camera

• Image Sensor 1/2.8-in. STARVIS™ CMOS
• Effective Pixels 1920(H) x 1080(V), 2 MP
• RAM/ROM 512 MB / 128 MB
• Scanning System Progressive
• Electronic Shutter Speed 1/1 s to 1/300,000 s
• Minimum Illumination Color: 0.005 lux at F1.6, B/W: 0.0005 lux at F1.6
• S/N Ratio More than 55 dB

Lens

• Focal Length 4.5 mm to 135 mm
• Max. Aperture F1.6 to F4.4
• Angle of View Horizontal: 67.8° to 2.4°
• Optical Zoom 30x
• Focus Control Auto, Manual
• Close Focus Distance 100 mm to 1000 mm (3.94 in. x 39.37 in.)

PTZ Function

• Pan: 0° to 360° endless
• Tilt: –20° to 90°
• Auto-flip 180°
• Manual Control Speed Pan: 0.1° to 300° /s; Tilt: 0.1° to 200° /s
• Preset Speed Pan: 600° /s; Tilt: 500° /s
• Presets 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Proportional Pan/Tilt Speed to Zoom Ratio
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
• Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264
• Streaming Capability Three (3) Streams
• Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
• Frame Rate Main Stream: 1080p, 1.3 MP, or 720p at 60 fps, Sub Stream 1: D1 or CIF at 30 fps, Sub Stream 2: 1080p, 1.3 MP, 720p, D1, or CIF at 30 fps
• Bit Rate Control CBR, VBR
• Bit Rate H.265/H.264: 448 K to 8192 Kbps
• Day/Night Auto (ICR), Color, B/W
• Backlight Compensation BLC, HLC, True WDR (120 dB)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction Ultra DNR (2D/3D)
• Advanced Features Motion Detection, Region of Interest,
• Electronic Image Stabilization (EIS) Defog
• Digital Zoom 16x
• Flip 180°
• Privacy Masking Up to 24 areas

Audio

• Compression G.711a, G.711Mu, AAC, G.722, G.726, MPEG2-L2

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast, Multicast
• Maximum User Access 20 Users
• Edge Storage Network Attached Storage (NAS), Local PC for Instant Recording, Micro SD Card Slot, maximum 128 GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software SmartPSS, DSS
• Mobile Operating System IOS, Android

Certifications

• Safety UL 60950-1 + CAN/CSA C22.2, No.60950-1
• Electromagnetic Compatibility (EMC) EN55032, EN55024, EN50130-4, FCC Part 15 Subpart B, ANSI C63.4- 2014

Interface

• Video Output: One (1), BNC
• Audio Input: One (1) Channel, Output: One (1) Channel
• RS485 One (1) Port
• Alarm Input: Seven (7) Channels, Output: Two (2) Channels

Electrical

• Power Supply 24 VAC, 3 A (±25%) or PoE+ (802.3at Class 4)
• Power Consumption 13 W, 20 W with Heater on

Environmental

• Operating Conditions –40° C to 70° C (–40° F to +158° F), Less than 90% RH
• Ingress Protection IP68
• Impact Protection IK10

Construction

• Housing 316L Stainless Steel
• Dimensions ø222.0 mm x 292.0 mm (8.74 in. x 11.50 in.)
• Net Weight 5.90 kg (13.01 lb)
• Gross Weight 11.0 kg (24.25 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Camera loses or changes focus drastically.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• Premium Features
• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Features
• Auto-tracking Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.
