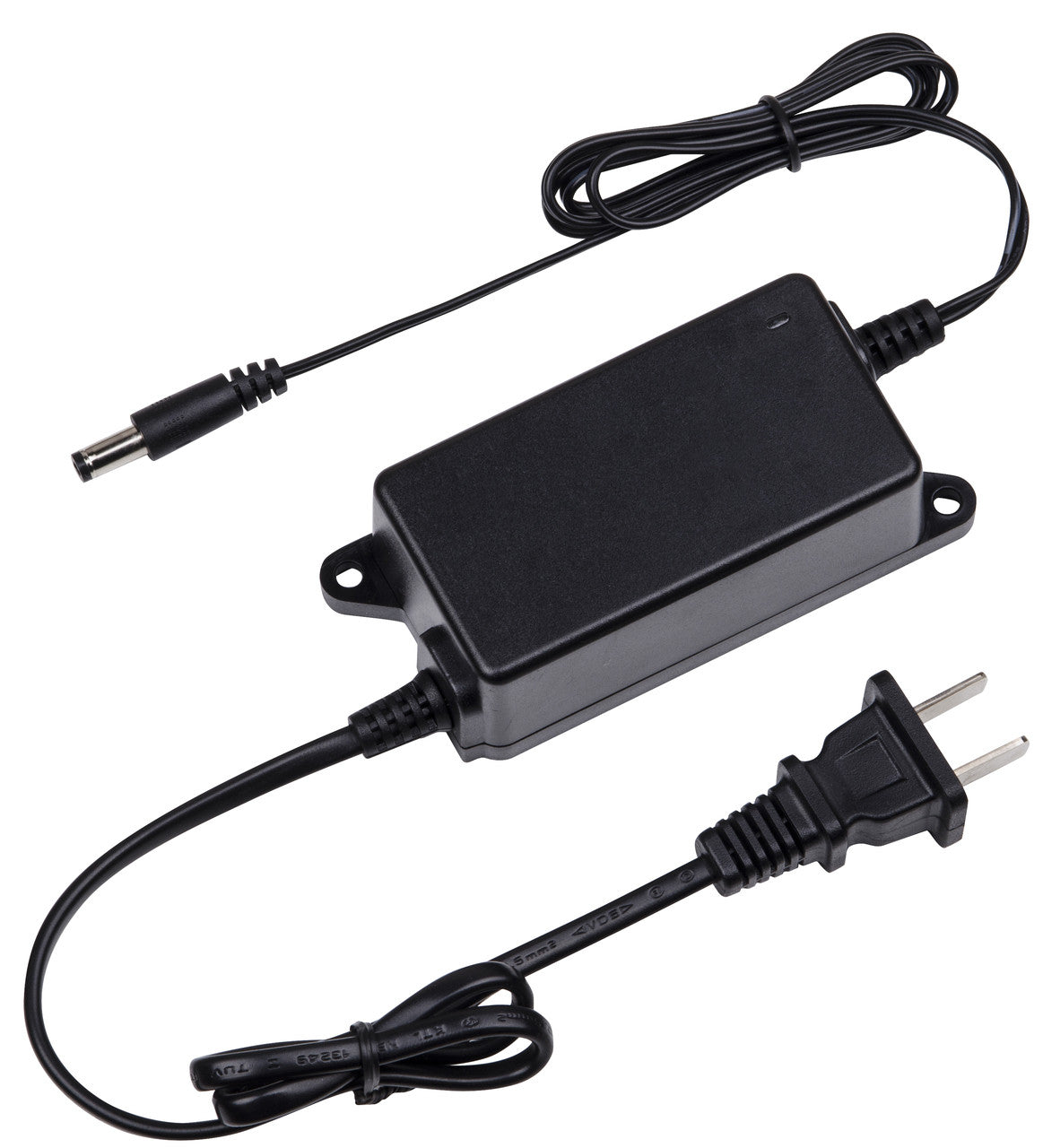

Dahua DH-PFM320D-US 12 VDC 2A Power Adapter

Dahua DH-PFM320D-US Features

Electrical

• Input 100 VAC to 240 VAC, 50/60 Hz, 0.6 A
• Output 12 VDC, 2A (+7%, –3%)

Protection

• Protections Surge, Over-temperature, Over-current, Voltage Load
• ESD EN61000-4-2, ±4 kV Contact; ±8 kV Air
• Surge EN61000-4-5
• Combination Wave Common Mode: ±4 kV (12 Ω); Differential Mode: ±2 kV (2 Ω)

Environmental

• Operating Temperature –30 °C to +70° F (–22 °F to 158 °F)
• Operating Humidity 95%, Relative

Physical Properties

• Weight 170.0 g (0.37 lb)
• Dimensions (L x W x H) 104.0 mm x 45.0 mm x 33.0 mm (4.09 in. x 1.77 in. x 1.30 in.)
• Installation Mode Plane Installation
• Color Black
• Input Plug 2-pin North American Plug
• Cord Lengths AC Cord: 500.0 mm (19.69 in.), DC Cord: 800.0 mm (31.50 in.)
• DC Plug 5.50 mm x 2.10 mm x 12.0 mm (0.22 in. x 0.08 in. x 0.47 in.)

Certifications

• CE, FCC, UL-VI
