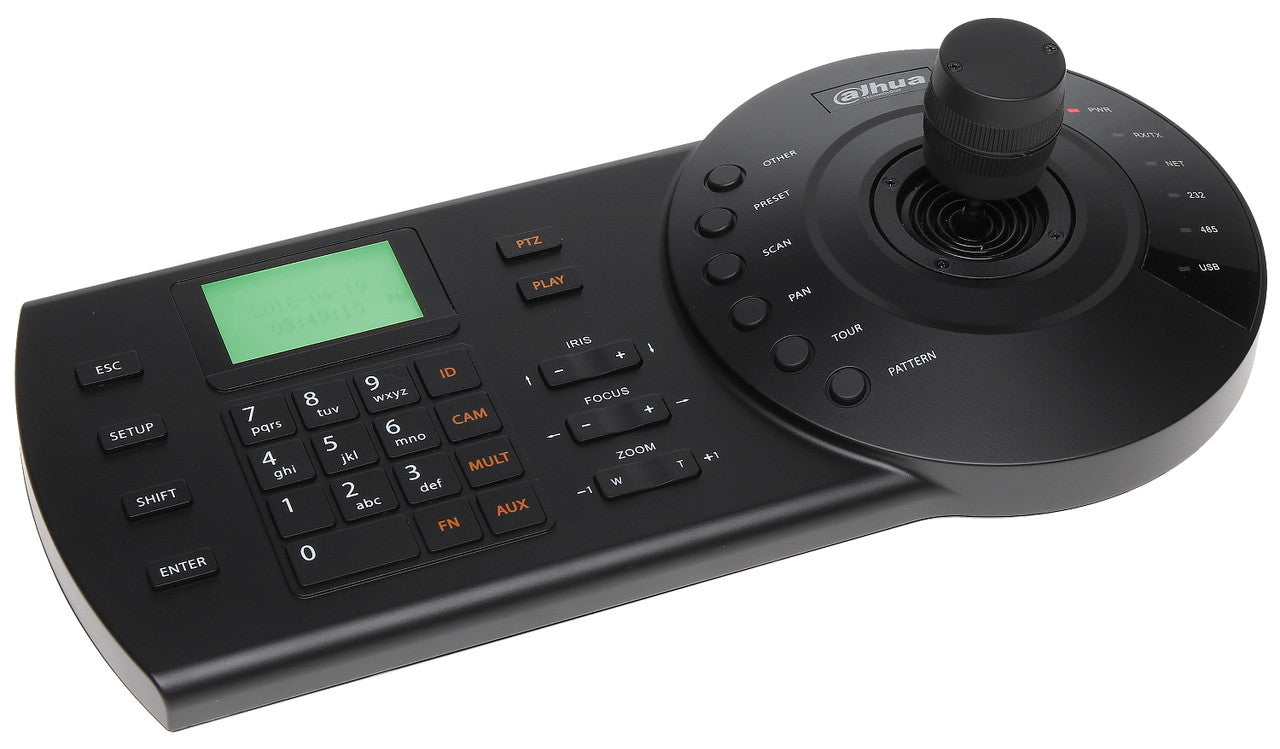

Dahua DH-NKB1000 Network Control Keyboard with Mono LCD Screen

Dahua DH-NKB1000 Features

General

• Keyboard: Electromechanical
• Joystick: 3-axis, vector-solving, with twisting, return to-center head
• Keyboard Connector: RJ-45,RS232,RS485,RS422,USB
• Keyboard Communication: Direct Mode, Network Mode
• Direct Mode Interface: RS232/RS485
• DVR Protocol: DH2
• Dome Protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P1……
• Network Mode Interface: RJ45, DVR/Network Dome, IP Address/Port/Protocol N/A N/A
• Display: LCD, 75.2mm x 33.85mm

Environmental

• Power Supply: Power adapter, input 100V~240V 50Hz / 60Hz,output DC12V/1000mA
• Power Consumption: 5W
• Working Temperature: -10℃~+55℃
• Working Humidity: 10%~90%
• Atmosphere Pressure: 86kpa~106kpa
• Dimension: 330mmx160(140)mmx37.5(21)mm (W×D×H) (height: 100mm including joystick)
• Weight: 2.5KG
