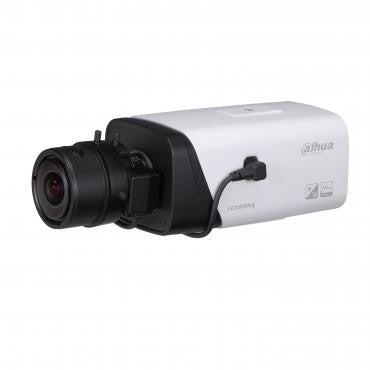

Dahua DH-IPC-HF8242FN-FR 2MP Face Recognition AI Box Network Camera

Replaced by the DH-IPC-HDBW7442HN-ZFR

Dahua DH-IPC-HF8242FN-FR Features

Camera

• Image Sensor 1/1.9-in. 2 MP CMOS
• Effective Pixels 1920(H) x 1080(V)
• RAM/ROM 2040 MB/4096 MB
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/100,000 s, Auto and Manual
• Minimum Illumination Color: 0.001 lux at F1.2 (1/3 s, 30 IRE), Color: 0.01 lux at F1.2 (1/30 s, 30 IRE), B/W: 0.0005 lux at F1.2 (1/3 s, 30 IRE), B/W: 0.005 lux at F1.2 ( 1/30 s, 30 IRE)
• S/N Ratio More than 50 dB
• Lens Mount Type C/CS Lens not included

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264
• Streaming Capability Three (3) Streams
• Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480)
• Frame Rate Main Stream: 1080p at 60 fps, Sub Stream 1: D1 at 60 fps, Sub Stream 2: 1080p at 60 fps
• Bit Rate Control VBR
• Bit Rate H.265: 14 Kbps to 6144 Kbps
• H.264: 24 Kbps to 10240 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, True WDR (120 dB), SSA
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zone, Rectangle)
• Region of Interest Off, On (4 Zone)
• Privacy Masking Off, On (4 Area, Rectangle)
• Advanced Features Electronic Image Stabilization (EIS)
• Defog
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On

Audio

• Compression G.711a, G.711Mu, G.726, AAC

Network

• Ethernet RJ45 (100/1000 Mbps Base-T)
• Protocol HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Maximum User Access 10 Users /10 Users
• Edge Storage Network Attached Storage (NAS), Local PC for Instant Recording
• MicroSD Card, maximum 128 GB
• Web Viewer IE, Firefox, Safari
• Management Software SmartPSS, DSS
• Mobile Operating System IOS, Android

Certifications

• Safety UL 60950-1
• EN 60950:2000
• Electromagnetic
• Compatibility (EMC) FCC Part 15 Subpart B

Interface

• Video Output One (1) BNC (1.0 Vp-p, 75 Ω)

Audio

• Input: Two (2) Channels, 3.5 mm Jack, One (1) Built-in Microphone
• Output: One (1) Channel, 3.5 mm Jack
• RS485 One (1) Port
• Alarm Input: Two (2) Channels (5 mA, 5 VDC), Output: Two (2) Channels (1 A, 30 VDC; 0.5 A, 50 VAC)

Electrical

• Power Supply 12 VDC, 24 VAC, or PoE (802.3af Class 0)
• Power Consumption < 10 W

Environmental

• Operating Conditions –30° C to +60° C (–22° F to +140° F), Less than 95% RH
• Storage Conditions –30° C to +60° C (–22° F to +140° F), Less than 95% RH

Construction

• Casing Metal
• Dimensions 161.60 mm x 85.50 mm x 74.0 mm (6.36 in. x 3.37 in. x 2.91 in.)
• Net Weight 0.78 kg (1.72 lb)
• Gross Weight 0.92 kg (2.03 lb)

Artificial Intelligence - Face Recognition

• On-camera Storage Capability
• Up to 10,000 Facial Images
• Up to Five (5) Image Libraries
• Facial Feature Extraction
• Age
• Gender
• Expression (Happy, Calm, Surprise, Sad, Rage)
• Wearing Glasses
• Wearing a Mask
• Facial Hair

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
• Premium Features
• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Features
• People Counting Measure the number of customers, visitors or passengers in a surveillance scene.
• Heat Map Generates a visual representation of data.
