Dahua DH-IPC-EBW8600N-IVC

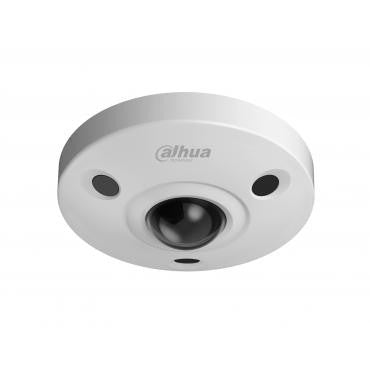

Dahua DH-IPC-EBW8600N-IVC 6MP IR Fixed Fisheye Network Camera

Dahua

Dahua DH-IPC-EBW8600N-IVC 6MP IR Fixed Fisheye Network Camera

$732.80
Discontinued
SKU: DH-IPC-EBW8600N-IVC Ultra
Link to Manufacturer's Page

Contact

Discontinued; replaced by the N68BR4V.

Dahua DH-IPC-EBW8600N-IVC Features

Camera

  • Image Sensor 1/1.8-in. Exmor R CMOS
  • Effective Pixels 3072(H) x 2048(V)
  • Scanning System Progressive
  • Electronic Shutter Speed Auto/Manual 1/3(4) s to 1/100000 s
  • Minimum Illumination Color: 0.01 lux @ F2.8; B/W: 0 lux (IR on)
  • S/N Ratio More than 50 dB
  • IR Distance 10 m (33 ft)
  • IR On/Off Control Auto / Manual

Lens

  • Lens Type Fixed Lens
  • Mount Type Board-in
  • Focal Length 1.3 mm
  • Max Aperture F2.8
  • Angle of View 180°/360°
  • Focus Control Manual

Intelligent Functions

  • Auto Tracking Single-scene, multiple-scene, panorama-scene
  • IVS Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving
  • Advanced Intelligent Functions Face Detection
  • Tracking Trigger Mode Manual / Auto (alarm triggered)
  • Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm

Video

  • Compression H.264H/H.264B/H.264/MJPEG
  • Streaming Capability 3 Streams
  • Resolution 6MP (3072 × 2048), 4 MP (2048 × 2048), 3 MP (2048 × 1536), UVGA (1600 × 1200), 1.3 MP (1280 x 960), D1 (704 × 576/704 x 480), CIF (352 × 288/342 x 240)
  • Frame Rate Main Stream: 6 MP (1 to 25/30 fps)
  • Sub Stream 1: D1/CIF (1 to 25/30 fps)
  • Sub Stream 2: 1.3 MP/D1 (1 to 25/30 fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate 8 to 12288 Kbps
  • De-warp Modes Original, Panoramic, Double panoramic, 1+3, E-PTZ
  • 4 pictures
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / DWDR
  • White Balance Auto, Manual
  • Gain Control Auto / Manual
  • Noise Reduction 3D
  • Privacy Masking Up to 4 areas

Audio

  • Compression G.711a, G.711Mu, G.726, AAC
  • Interface 1/1 channel In/Out, built-in mic

Network

  • Ethernet RJ-45 (10/1000 Base-T)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ARP
  • Interoperability ONVIF PSIA CGI
  • Max. User Access 20
  • Web Viewer IE10
  • Smart Phone Android, IOS

Certifications

  • Certifications FCC (SEFV1505157-A ), UL (E234884-A125-UL)

Interface

  • Memory Slot Micro SD, up to 64GB
  • Alarm 2/1 In/Out

Electrical

  • Power Supply DC12V, PoE (802.3af)
  • Power Consumption Max. 13 W

Environmental

  • Operating Conditions -30°C to +60°C (-22°F to +140°F), Less than 90% RH
  • Storage Conditions -30°C to +60°C (-22°F to +140°F), Less than 90% RH
  • Ingress Protection IP67
  • Vandal Resistance IK10

Construction

  • Dimensions Φ150 mm x 50.7 mm (Φ 5.91 in. x 1.99 in.)
  • Net Weight 0.58 kg (1.28 lbs)
  • Gross Weight 0.86 kg (1.90 lbs)
