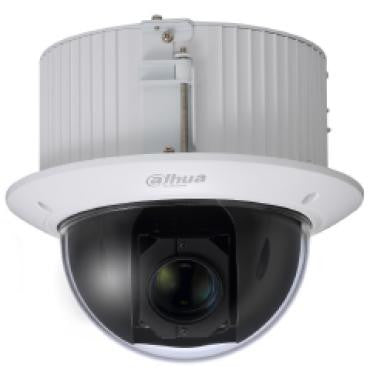

Dahua 52C430UN 4MP 30x Zoom In-ceiling PTZ Network Camera

Dahua 52C430UN Features

Camera

• Image Sensor 1/3-in. CMOS
• Effective Pixels 2592(H) x 1520(V), 4 MP
• RAM/ROM 1024 MB / 128 MB
• Scanning System Progressive
• Minimum Illumination Color: 0.05 Lux @ F1.6 B/W: 0.005 Lux @ F1.6
• S/N Ratio More than 55 dB

Lens

• Focal Length 4.5 mm to 135 mm
• Max. Aperture F1.6 to F4.4
• Angle of View Horizontal: 2.2° to 60°
• Optical Zoom 30x
• Focus Control Auto/Manual
• Close Focus Distance 100 mm to 1000 mm

PTZ

• Pan/Tilt Range Pan: 0° to 360° endless
• Tilt: 0° to 90°, Auto Flip 180°
• Manual Control Speed Pan: 0.1° to 350° /s
• Tilt: 0.1° to 250° /s
• Preset Speed Pan: 500° /s
• Tilt: 500° /s
• Presets 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented Focal Length, Speed Adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period
• Protocol DH-SD

Video

• Compression H.265, H.264, MJPEG
• Streaming Capability Three (3) Streams
• Resolution 4 MP (2592 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
• Frame Rate Main Stream: 4 MP, 3 MP, 1.3 MP, 720p (1 to 30 fps) or 1080p (1 to 60 fps)
• Sub Stream 1: D1, CIF (1 to 30 fps)
• Sub Stream 2: 1080p, 1.3 MP, 720p (1 to 30 fps)
• Bit Rate Control CBR, VBR
• Bit Rate H.265/H.264: 448 K to 8192 Kbps; MJPEG: 5120 K to 10240 Kbps
• Day/Night Auto (ICR), Color, B/W
• Backlight Compensation BLC, HLC, WDR (120 dB)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction Ultra DNR (2D/3D)
• Advanced Features Motion Detection, Region of Interest,
• Electronic Image Stabilization (EIS), Defog
• Digital Zoom 16x
• Flip 180°
• Privacy Masking Up to 24 areas

Audio

• Compression G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20 users
• Edge Storage NAS (Network Attached Storage)
• Local PC for instant recording, 128 GB
• Web Viewer IE 10, Chrome, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System IOS, Android, Windows

Certifications

• CE EN 55032
• EN 55024
• EN 50130-4
• UL UL: UL60950-1 + CAN/CSA C22.2, No.60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
• ANSI C63.4-2014

Interface

• Audio Interface In: One (1) Channel
• Out: One (1) Channel
• Alarm In: Two (2) Channels
• Out: One (1) Channel

Electrical

• Power Supply AC24V, 1.5 A (± 10%), PoE+ (802.3at)
• Power Consumption 13 W

Environmental

• Operating Conditions -30°C to 60°C (-22°F to +140°F), Less than 90% RH
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions Φ198.0 mm x 177.0 mm (Φ7.80 in. x 6.97 in.)
• Net Weight 2.20 kg (4.85 lb)
• Gross Weight 3.70 kg (8.16 lb)
