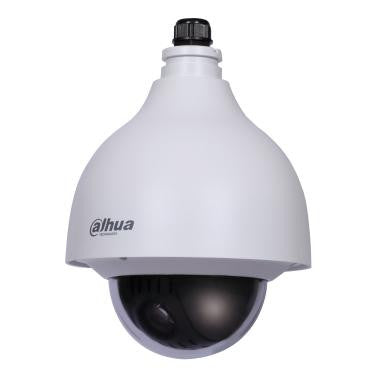

Dahua 50230UNI-A 2MP 30x PTZ Network Camera

Discontinued - Recommended Replacement: 50230UNI-A

Dahua 50230UNI-A Features

Camera

• Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
• Effective Pixels 1920(H) x 1080(V), 2 MP
• RAM/ROM 512 MB / 128 MB
• Scanning System Progressive
• Electronic Shutter Speed 1/1 s to 1/300,000 s
• Minimum Illumination Color: 0.005 lux at F1.6, B/W: 0.0005 lux at F1.6
• S/N Ratio More than 55 dB

Lens

• Focal Length 4.5 mm to 135 mm
• Max. Aperture F1.6 to F4.4
• Angle of View Horizontal: 67.8° to 2.4°
• Optical Zoom 30x
• Focus Control Auto, Manual
• Close Focus Distance 100 mm to 1000 mm

DORI Distance¹

• Detect (8 ppf) 1862 m (6109 ft)
• Observe (19 ppf) 744 m (2441 ft)
• Recognize (38 ppf) 372 m (1220 ft)
• Identify (76 ppf) 186 m (610 ft)

PTZ

• Pan/Tilt Range Pan: 0° to 360° endless
• Tilt:0° to 90°
• Auto Flip 180°
• Manual Control Speed Pan: 0.1° to 350° /s
• Tilt: 0.1° to 250° /s
• Preset Speed Pan: 500° /s
• Tilt: 500° /s
• Presets 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
• Speed Setup Human-oriented Focal Length, Speed Adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
• Protocol DH-SD

Video

• Compression H.265, H.264, MJPEG
• Streaming Capability Three (3) Streams
• Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
• Frame Rate Main Stream: 1080p or 720p at 60 fps; 1.3 MP at 30 fps
• Sub Stream 1: D1 or CIF at 30 fps
• Sub Stream 2: 1080p, 1.3 MP, 720p, D1, or CIF at 30 fps
• Bit Rate Control CBR, VBR
• Bit Rate H.265/H.264: 448 K to 8192 Kbps
• MJPEG: 5120 K to 10240 Kbps
• Day/Night Auto (ICR), Color, B/W
• Backlight Compensation BLC, HLC, True WDR (120 dB)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction Ultra DNR (2D/3D)
• Advanced Features Motion Detection, Region of Interest,
• Electronic Image Stabilization (EIS), Defog
• Digital Zoom 16x
• Flip 180°
• Privacy Masking Up to 24 areas

Audio

• Compression G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20 users
• Edge Storage Network Attached Storage (NAS), Local PC for instant recording, Micro SD card, up to 128 GB
• Web Viewer IE 10, Firefox, Safari
• Management Software Smart PSS, DSS
• Smart Phone IOS, Android, Windows

Certifications

• CE EN 55032
• EN 55024
• EN 50130-4
• UL UL60950-1 + CAN/CSA C22.2, No.60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B

Interface

• Video One (1) BNC
• Audio Input: One (1) Channel, Output: One (1) Channel
• Alarm Input: Two (2) Channels, Output: One (1) Channel
• RS485 One (1) BNC

Electrical

• Power Supply 24 VAC, 1.5 A (± 10%), PoE+ (802.3at)
• Power Consumption 13 W, 23 W with heater on

Environmental

• Operating Conditions -40 °C to 60° C (-40° F to 140° F), with built-in heater, Less than 90% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions 186.0 mm x 253.0 mm (7.32 in. x 9.96 in.)
• Net Weight 2.50 kg (5.51 lb)
• Gross Weight 4.50 kg (9.92 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• Premium Features
• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Features
• Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
• Auto-tracking Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.

1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
