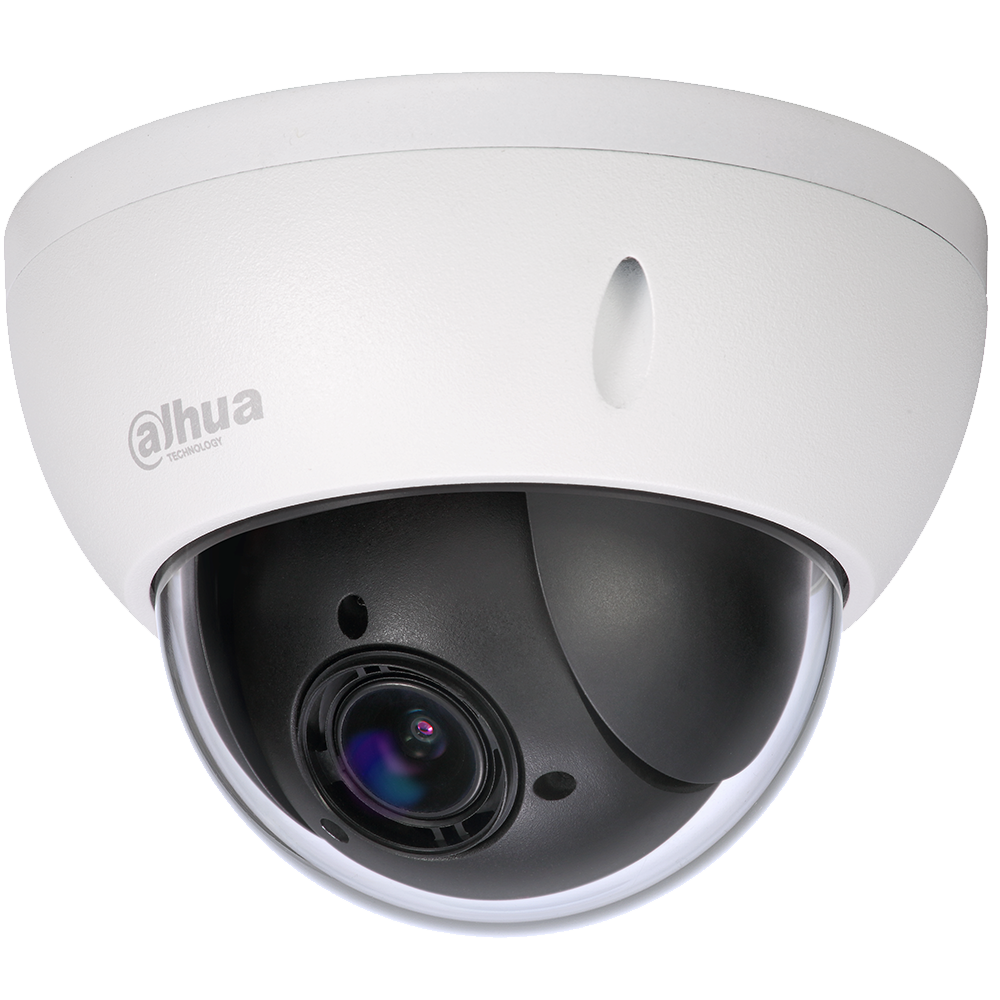

Dahua 22204TNI 2MP 4x PTZ Dome Network Camera

Dahua 22204TNI Features

Camera

• Image Sensor: 1/2.8-in. STARVIS™ CMOS Sensor
• Effective Pixels: 1920(H) x 1080(V), 2 MP
• RAM/ROM: 1024 MB / 128 MB
• Scanning System: Progressive
• Minimum Illumination: Color: 0.005 lux at F1.6, B/W: 0.0005 lux at F1.6
• S/N Ratio: More than 50 dB

Lens

• Focal Length: 2.7 mm to 11 mm
• Maximum Aperture: F1.6
• Angle of View: Horizontal: 30° to 112.5°
• Optical Zoom: 4x
• Focus Control: Auto, Manual
• Close Focus Distance: 100 mm to 1000 mm

Range

• Pan: 0° to 355°
• Tilt: 0° to 90°
• Manual Control Speed: Pan: 0.1° to 100° /s, Tilt: 0.1° to 60° /s
• Preset Speed: Pan: 100° /s, Tilt: 60° /s
• Presets: 300
• PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Compensation: Proportional Pan/Tilt Speed to Zoom Ratio
• Power Up Action: Auto restore to previous PTZ and lens status after power failure
• Idle Motion: Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
• Protocol: DH-SD

Video

• Compression: Smart H.265+, H.265, Smart H.264+, H.264
• Streaming Capability: Three (3) Streams
• Resolution: 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)

Frame Rate

• Main Stream: 1080p, 720p, or D1 at 30 fps
• Sub Stream 1: D1, CIF at 30 fps
• Sub Stream 2: 1080p, 720p, D1, or CIF at 30 fps
• Bit Rate Control: CBR, VBR
• Bit Rate: H264:24 K to 8192 Kbps

Image Settings

• Day/Night: Auto (ICR), Color, B/W
• Backlight Compensation: BLC, HLC, WDR (120 dB)
• White Balance: Auto, ATW, Indoor, Outdoor, Manual
• Gain Control: Auto, Manual
• Noise Reduction: Ultra DNR (2D/3D)
• Advanced Features: Motion Detection, Region of Interest, Defog
• Digital Zoom: 16x
• Flip: 180°
• Privacy Masking: Up to 24 areas

Network

• Ethernet: RJ-45 (10/100 Base-T)
• Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability: ONVIF, PSIA, CGI
• Streaming Method: Unicast / Multicast
• Max. User Access: 10 Users / 20 Users
• Edge Storage: Network Attached Storage, Local PC for instant recording, Micro SD Card, max. 128 GB
• Web Viewer: IE, Firefox, Safari
• Management Software: Smart PSS, DSS
• Mobile Operating System: IOS, Android

Certifications

• CE: EN 55032, EN 55024, EN 50130-4
• UL: UL60950-1 + CAN/CSA C22.2, No.60950-1
• Electromagnetic Compatibility: CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014

Electrical

• Power Supply: DC12V, PoE (802.3af, Class 0)
• Power Consumption: 10 W

Environmental

• Operating Conditions: -30° C to +60° C (-22° F to +140° F), Less than 95% RH
• Ingress Protection: IP66
• Vandal Resistance: IK10

Construction

• Casing: Metal
• Dimensions: Φ122.0 mm × 88.90 mm (Φ4.80 in. x 3.50 in.)
• Net Weight: 0.66 kg (1.46 lb)
• Gross Weight: 0.71 kg (1.57 lb)
