CyberPower PR2200RT2U 2200VA/2200W, Sine Wave, 2U, NEMA L5-30P, 10 Ft Cord, 8 NEMA 5-20R
CyberPower PR2200RT2U 2200VA/2200W, Sine Wave, 2U, NEMA L5-30P, 10 Ft Cord, 8 NEMA 5-20R
CyberPower PR2200RT2U 2200VA/2200W, Sine Wave, 2U, NEMA L5-30P, 10 Ft Cord, 8 NEMA 5-20R
CyberPower PR2200RT2U 2200VA/2200W, Sine Wave, 2U, NEMA L5-30P, 10 Ft Cord, 8 NEMA 5-20R
CyberPower PR2200RT2U 2200VA/2200W, Sine Wave, 2U, NEMA L5-30P, 10 Ft Cord, 8 NEMA 5-20R
CyberPower PR2200RT2U 2200VA/2200W, Sine Wave, 2U, NEMA L5-30P, 10 Ft Cord, 8 NEMA 5-20R

CyberPower

CyberPower PR2200RT2U 2200VA/2200W, Sine Wave, 2U, NEMA L5-30P, 10 Ft Cord, 8 NEMA 5-20R

Sale price$1,091.95
SKU: PR2200RT2U
Quantity:

Contact

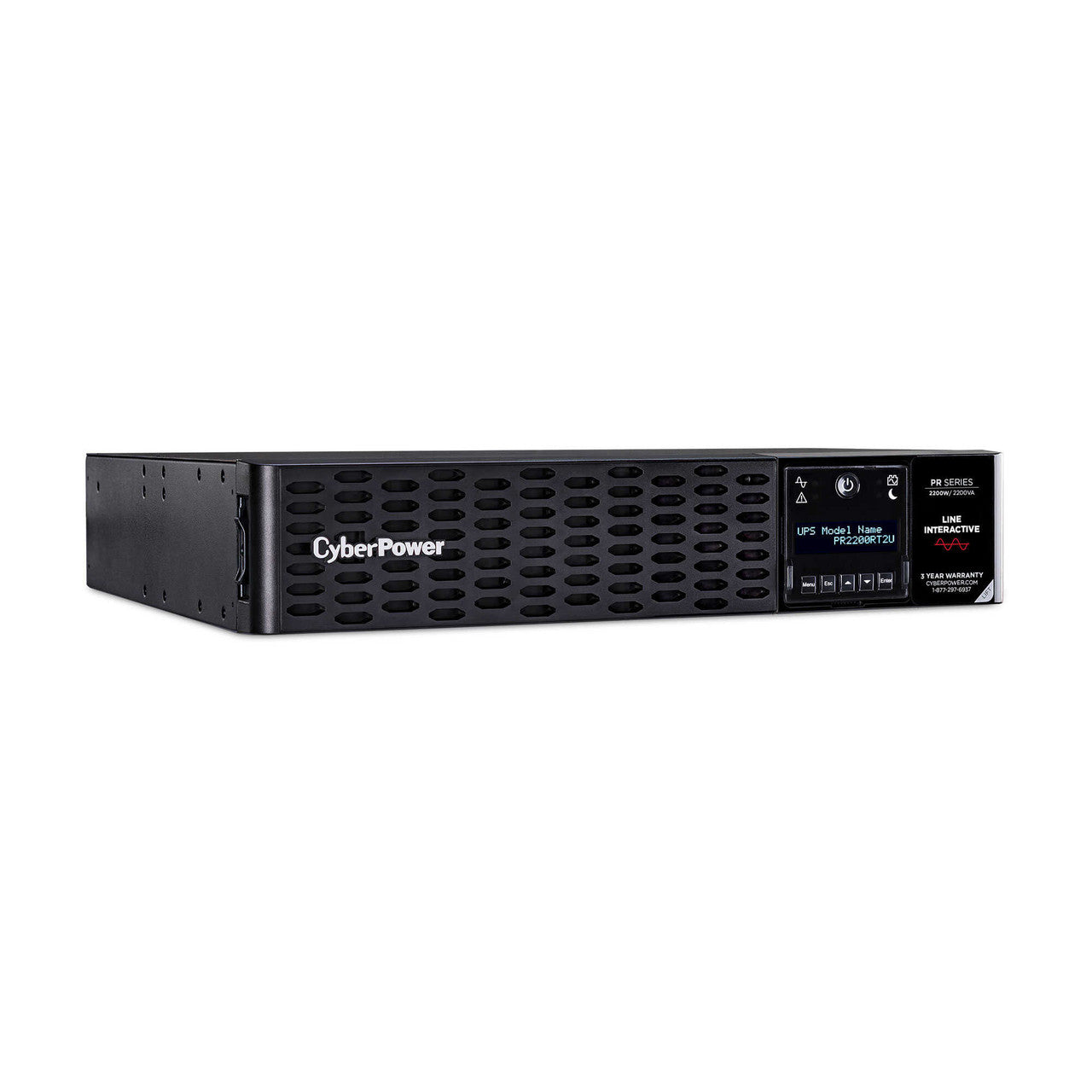

The PR2200RT2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR2200RT2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RT2U also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR2200RT2U.

Battery Backup

  • Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Line-Interactive Topology

  • Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR)

  • Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.

Sine Wave Output

  • Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.

Battery Equalization Technology

  • Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

Fast Charge Technology

  • Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.

Rotatable Multifunction LCD Panel

  • Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.

Toolless Battery Panel Access

  • Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.

Surge Protection

  • Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Data-Line Protection

  • Prevents power surges that travel through Ethernet lines from causing damage to electronics.

GreenPower UPS™ Bypass Design

  • Patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

Rack/Tower Versatility

  • Allows for horizontal rack or vertical tower installation.

PowerPanel® Business Edition Software

  • Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.

ENERGY STAR

  • This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Three-Year Warranty

  • CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.

Connected Equipment Guarantee

  • CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, Faceplate, UPS User Manual, 2-Post Rack Mounting Kit, 4-Post Rail Rack Mounting Kit, Tower Mounting Kit, Emergency Power Off Cable (gray), and USB A+B Type Cable


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
Active PFC Compatible Yes
Energy Saving GreenPower UPS™ Bypass Technology
Energy Star Certified Yes
UPS Topology Line-Interactive
Battery
Battery Quantity 4
Battery Size 12V/9Ah
Battery Type Sealed Lead-Acid
Extended Battery Option No
Hot Swappable Yes
Replacement Battery Cartridge RB1290X4J
Replacement Battery Cartridge Quantity 1
Runtime at Full Load 3.2 minutes
Runtime at Half Load 11.8 minutes
Typical Recharge Time 3 hrs
User Replaceable Yes
Dimensions
Physical Dimensions – (WxHxD) (cm) 43.43 x 8.64 x 41.15 (cm)
Physical Dimensions – (WxHxD) (in) 17.1 x 3.4 x 16.2 (in)
Physical Dimensions – (WxHxD) (mm) 434 x 86 x 411 (mm)
Weight (kg) 27.12
Weight (lb) 59.8
Dimensions – Shipping
Shipping – Weight (kg) 30.71
Shipping – Weight (lb) 67.7
Shipping Dimensions – (WxHxD) (cm) 56.13 x 27.43 x 53.09 (cm)
Shipping Dimensions – (WxHxD) (in) 22.1 x 10.8 x 20.9 (in)
Shipping Dimensions – (WxHxD) (mm) 561.34 x 274.32 x 530.86 (mm)
Input
Adjustable Voltage Range 70 – 155 Vac
Circuit Breaker 30A
Cord Length (ft) 10
Frequency Range 47 – 63 Hz
Input Voltage 100 – 120 Vac
Input Voltage Range 75 – 149 Vac
Plug Style Straight, Twist Lock
Plug Type NEMA L5-30P
Output
Automatic Voltage Regulation Double boost, single buck
On Battery Frequency 50/60Hz +/- 1%
On Battery Voltage 100/110/120Vac ± 5%
On Battery Waveform Sine wave
Outlet Type NEMA 5-20R
Outlets – Battery & Surge Protected 8
Outlets – Critical Load 4
Outlets – Total 8
Overload Protection Internal Circuitry Limiting, Circuit Breaker
Rated Power Factor 1
Transfer Time 4ms typical
VA 2200
Watts 2200
Surge Protection & Filtering
EMI/RFI Filtration Yes
Network Protection RJ45 1-in, 1-out
Surge Suppression 2430 J
Management & Communications
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat
Dry Contacts Yes
Emergency Power Off (EPO) Port Yes
HID Compliant USB Port Yes
LED Indicators Power on, Line mode, Battery mode, Fault, Night mode, Wiring Fault
Management Cable USB Cable, EPO Cable
Multifunction LCD Panel 47 Settings (27 setup and control items + 20 status updates and log menus)
SNMP / HTTP Remote Monitoring Yes – with optional RMCARD205
Serial Port Yes
Software PowerPanel® Business Edition
Physical
Color Black
Enclosure Construction Metal
Form Factor Rack/Tower
Rack Size 2U
Environmental
Audible noise at 1m from surface of unit 52.5 dBA
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Online Thermal Dissipation 116 BTU/hr
Operating Relative Humidity 0 – 95% (non-condensing)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Certifications
Environmental RoHS Compliant
Safety UL1778, VCCI, FCC Class A
Warranty
CEG Amount $400,000
Connected Equipment Guarantee Lifetime
Product Warranty 3 Years Limited
