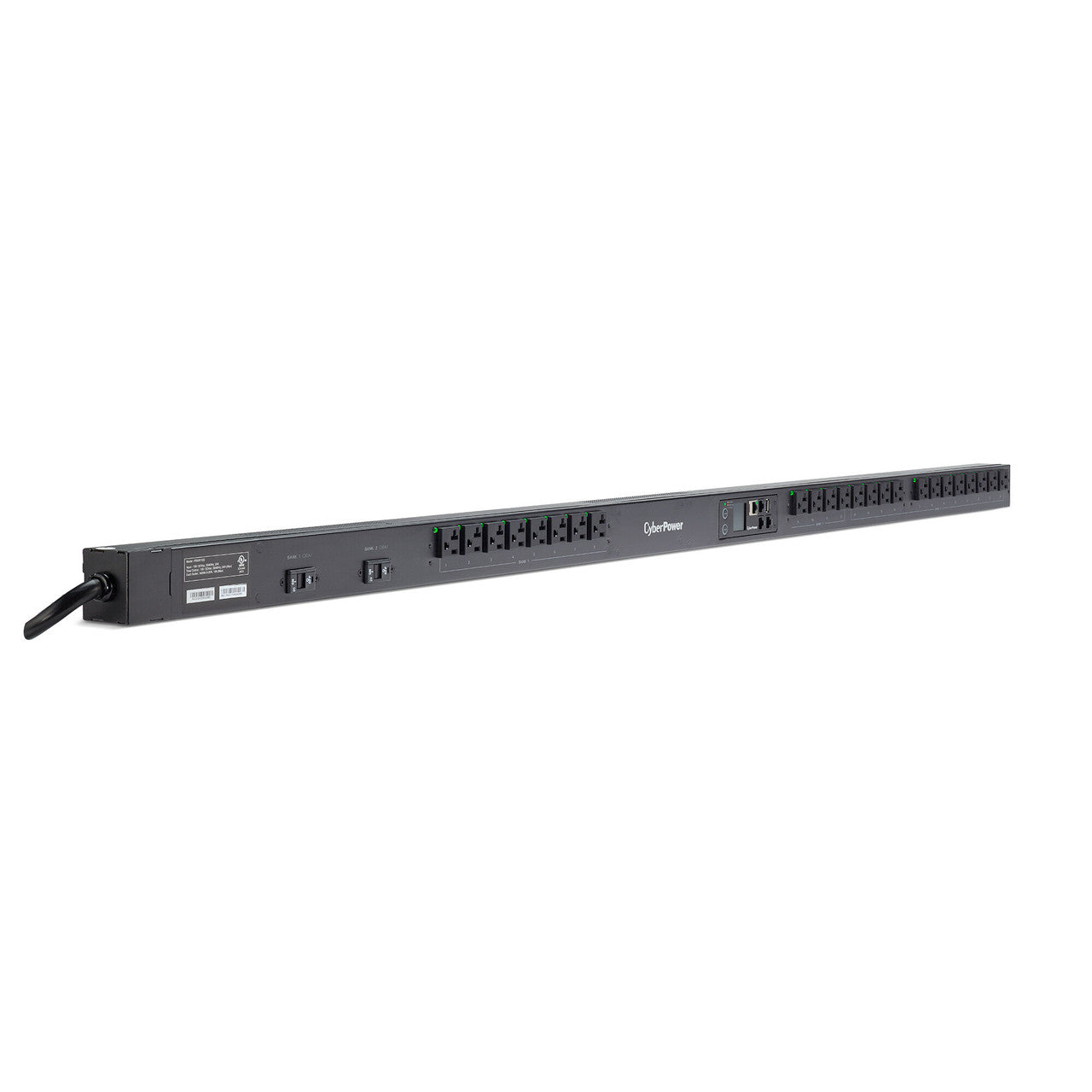

CyberPower PDU81102 Metered-by-Outlet Switched PDU 30A 120V L5-30P Input (24) NEMA 5-20R Output 10ft Cord 0U 3yr Wty
CyberPower PDU81102 Metered-by-Outlet Switched PDU 30A 120V L5-30P Input (24) NEMA 5-20R Output 10ft Cord 0U 3yr Wty
CyberPower PDU81102 Metered-by-Outlet Switched PDU 30A 120V L5-30P Input (24) NEMA 5-20R Output 10ft Cord 0U 3yr Wty

CyberPower

CyberPower PDU81102 Metered-by-Outlet Switched PDU 30A 120V L5-30P Input (24) NEMA 5-20R Output 10ft Cord 0U 3yr Wty

Sale price$1,329.95
SKU: PDU81102
Quantity:

Contact

Streamline capacity planning and power management with the CyberPower PDU81102 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.

The PDU81102 supports inputs between 100-120V and includes 24 NEMA 5-20R outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81102 is protected by a three-year limited warranty.

Power Distribution

  • Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

  • Safeguards against accidental power shut down.

Switchable Outlets

  • Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

Per Outlet Power Metering

  • Provides information on the amount of power being drawn from each outlet, each circuit and the PDU as a whole.

CyberPower Management Console

  • A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging

Remote and Local Monitoring

  • Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.

Automatic Event Notifications

  • Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware

  • Downloadable improvements (firmware updates) to programs that run the PDU.

Digital Display

  • Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets

  • Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord

  • Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray

  • Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Durable Metal Housing

  • Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Three-Year Limited Warranty

  • Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What’s In The Box

PDU, 2 Mounting Brackets, 6 M4x5 Screws, 6 M5x12 Screws/Washers, 6 M3x6 screws, Cord Retention Tray, Cable Ties, RJ45/DB9 Cable, User’s Manual Registration and Download Cards


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

Input
Nominal Input Voltage 100-120V
Input Frequency 50/60 Hz
Input Current 30A
Derated Input Current 24A
Power Cord Type NEMA L5-30P
Power Cord Length (ft) 10
Output
Outlet type NEMA 5-20R
Number of Outlets 24
Circuit Quantity 2
Overload Protection Circuit Breakers
Management & Communications
Outlet switching Yes
Monitoring Level Input, Per Outlet, Per circuit
Protocols IPv4
TCP/IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
CLI
Windows AD
Network Connection RJ45 (Ethernet), RJ45 (COM Port)
Environmental Sensor Optional, via RJ45
Updateable firmware Yes, via USB or Ethernet
Multifunction LCD Screen Voltage
Frequency
Load
Current
HW/FW Version
Network information
Physical
Rack Space 0U
Dimensions (WxHxD) (in) 2.2 x 65.5 x 1.9
Weight (lb) 17.2
Environmental
Operating Temperature 32°F – 140°F (0°C – 60°C)
Operating Humidity 0% – 95% Non-condensing
Operating Elevation 11480 ft / 3500 m
Certifications
Safety UL 60950-1
Warranty
Product Warranty 3 years
