CyberPower PDU81001 SW MBO PDU 15A 120V Metered-by-Outlet Switched PDU NEMA Outlets 12ft cord 3yr Warranty
CyberPower PDU81001 SW MBO PDU 15A 120V Metered-by-Outlet Switched PDU NEMA Outlets 12ft cord 3yr Warranty
CyberPower PDU81001 SW MBO PDU 15A 120V Metered-by-Outlet Switched PDU NEMA Outlets 12ft cord 3yr Warranty
CyberPower PDU81001 SW MBO PDU 15A 120V Metered-by-Outlet Switched PDU NEMA Outlets 12ft cord 3yr Warranty

CyberPower

CyberPower PDU81001 SW MBO PDU 15A 120V Metered-by-Outlet Switched PDU NEMA Outlets 12ft cord 3yr Warranty

Sale price$866.51
SKU: PDU81001
Quantity:

Contact

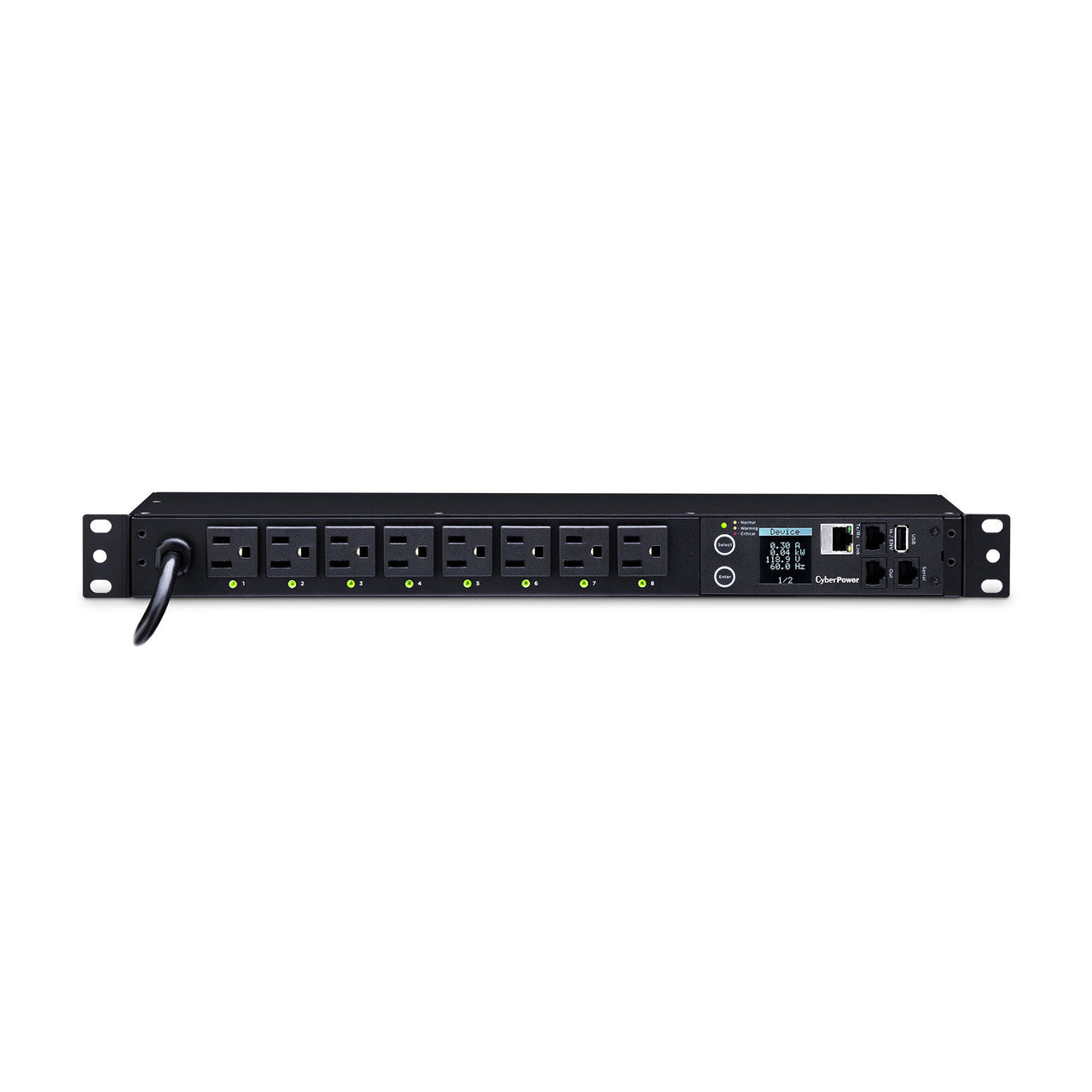

Streamline capacity planning and power management with the CyberPower PDU81001 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.

The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81001 is protected by a three-year limited warranty.

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Switch-Free Design
    Safeguards against accidental power shut down.
  • Switchable Outlets
    Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
  • Per Outlet Power Metering
    Provides information on the amount of power being drawn from each outlet, each circuit and the PDU as a whole.
  • CyberPower Management Console
    A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.
  • Remote and Local Monitoring
    Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
  • Automatic Event Notifications
    Provide immediate updates about power events via email, SMS text, or SNMP traps.
  • Upgradeable Firmware
    Downloadable improvements (firmware updates) to programs that run the PDU.
  • Digital Display
    Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it’s needed.
  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • 1U Mounting Brackets
    Space-efficient 1U design allows PDU to be installed horizontally or vertically, under a counter or via wall mount.
  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What’s In The Box

PDU, 2 Short Mounting Brackets, 2 Long Mounting Brackets, 12 M4x8 Screws, 6 M5X12 Screws/Washers, Cord Retention Tray, 6 M3x6 Screws, 12 Cable Ties, RJ45/DB9 Serial Cable, User’s Manual, Registration & Download Cards


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

Input
Nominal Input Voltage 100-120V
Input Frequency 50/60 Hz
Input Current 15A
Derated Input Current 12A
Power Cord Type NEMA 5-15P
Power Cord Length (ft) 12
Output
Outlet type NEMA 5-15R
Number of Outlets 8
Circuit Quantity 1
Overload Protection None
Management & Communications
Outlet switching Yes
Monitoring Level Input, Per Outlet, Per circuit
Protocols IPv4
TCP/IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
CLI
Windows AD
Network Connection RJ45 (Ethernet), RJ45 (COM Port)
Environmental Sensor Optional, via RJ45
Updateable firmware Yes, via USB or Ethernet
Multifunction LCD Screen Voltage
Frequency
Load
Current
HW/FW Version
Network information
Physical
Rack Space 1U
Dimensions (WxHxD) (in) 17.05 x 1.75 x 4.41
Weight (lb) 5.73
Environmental
Operating Temperature 32°F – 131°F (0°C – 55°C)
Operating Humidity 0% – 95% Non-condensing
Operating Elevation 11480 ft / 3500 m
Certifications
Safety UL 60950-1
FCC Class A
RoHS
Warranty
Product Warranty 3 years
