CyberPower PDU41003 Switched PDU 30A 120V NEMA L5-30P input 16 NEMA 5-20R output 12ft cord 1U 3 Year Warranty
CyberPower PDU41003 Switched PDU 30A 120V NEMA L5-30P input 16 NEMA 5-20R output 12ft cord 1U 3 Year Warranty
CyberPower PDU41003 Switched PDU 30A 120V NEMA L5-30P input 16 NEMA 5-20R output 12ft cord 1U 3 Year Warranty
CyberPower PDU41003 Switched PDU 30A 120V NEMA L5-30P input 16 NEMA 5-20R output 12ft cord 1U 3 Year Warranty

CyberPower

CyberPower PDU41003 Switched PDU 30A 120V NEMA L5-30P input 16 NEMA 5-20R output 12ft cord 1U 3 Year Warranty

Sale price$759.95
SKU: PDU41003
Quantity:

Contact

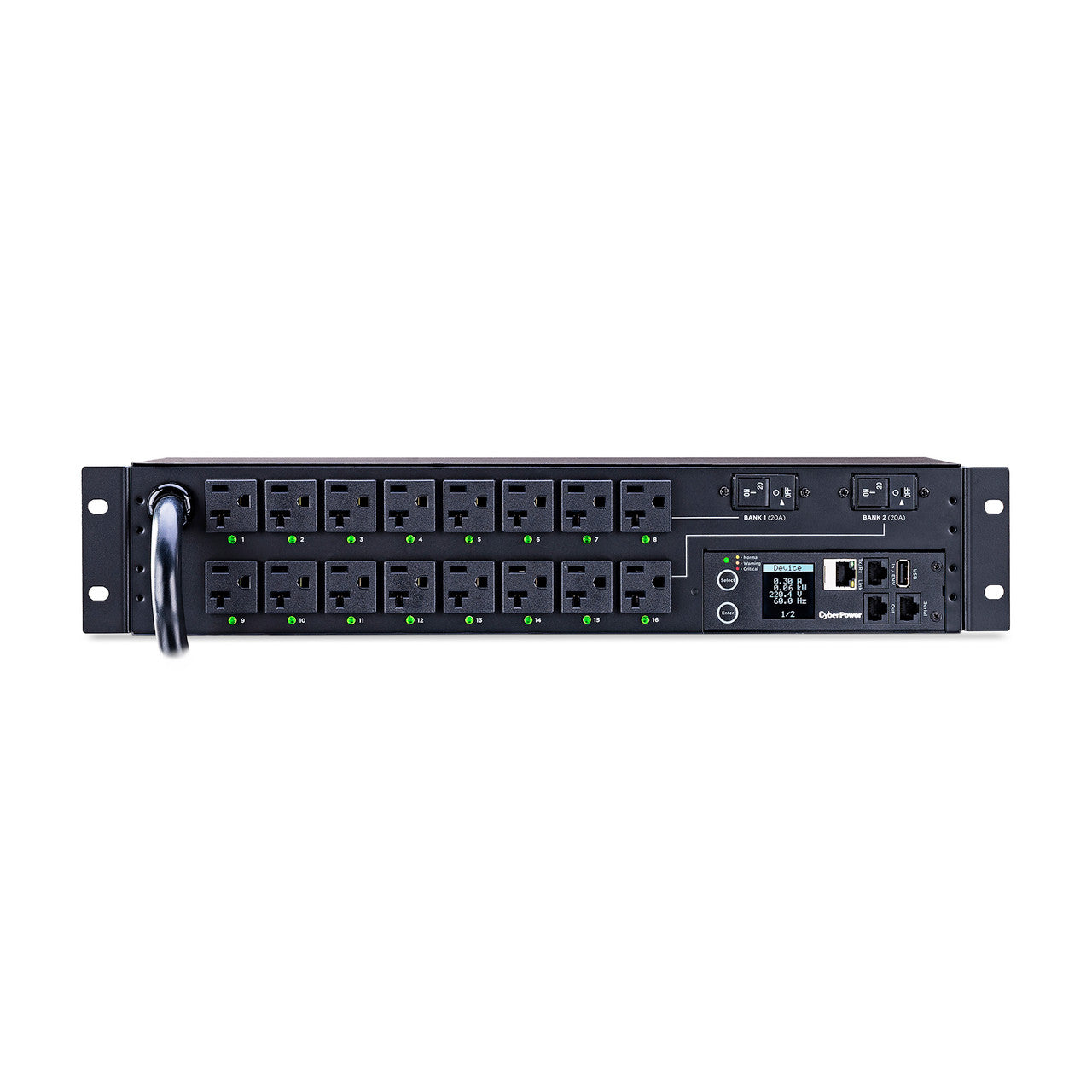

The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.

The PDU41003 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Switch-Free Design
    Safeguards against accidental power shutdown.
  • Switchable Outlets
    Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
  • CyberPower Management Console
    Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.
  • Remote and Local Monitoring
    The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
  • Automatic Event Notifications
    Provide immediate updates about power events via email, SMS text, or SNMP traps.
  • Upgradeable Firmware
    Downloadable improvements (firmware updates) to programs that run the PDU.
  • Power Control Display
    Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.
  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it’s needed.
  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Configurable Mounting Brackets
    Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What’s In The Box

PDU, Two (2) Mounting Brackets, Twelve (12) M4x8 Bracket Mounting Screws, Six (6) M5x12 Rack Mounting Screws and Washers, Two (2) Cord Retention Trays, Twelve (12) M3x6 Cord Retention Tray Screws, Twenty-four (24) Cable Ties, RJ45/DB9 Serial Port Connection Cable, User Manual, Registration Card, Download Card


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
Type Switched
Phase Single Phase
Input
Voltage 100-120Vac
Frequency 50Hz/60Hz
Maximum Input Current 30A (Derated to 24A)
On/Off Switch N/A
Plug Type NEMA L5-30P
Plug Style Straight
Cord Length (ft.) 12
Cord Length (m) 3.7
Output
Nominal Output Voltage 100-120Vac
Overload Protection 30A (Derated 24A)
Overload Protection (Each Bank) 20A
Outlets – # of Banks 2
Outlets – Total 16
Outlets – Front 16
Outlets – Rear 0
Outlet Type NEMA 5-20R
Controllable Outlets 16
Meter Readout Power Control Display
LED Indicators Tx/Rx, LINK, Normal/Warning/Critial Status
Management & Communications
SNMP / HTTP Remote Monitoring IPv4,
TCP/IP,
UDP,
SNMPv1,
HTTP,
NTP,
DNS,
Telnet,
DHCP,
SMTP,
FTP,
IPv6,
SNMPv3,
HTTPs,
SSH,
SSL,
TLS,
LDAP(S),
RADIUS,
Syslog,
CLI,
Windows AD
Connectivity RJ45, Serial
Physical
Standard Form Factor 2U Rackmount
Form Factors Supported Vertical or horizontal mounting supported in wallmount applications,
racks and a variety of other surface types
Style Horizontal Rackmount, Wallmount
Enclosure Construction Steel
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Adjustable Mounting Brackets 1 set
Physical Size
Dimensions (WxHxD) (in.) 17.05 x 3.5 x 4.41
Dimensions (WxHxD) (mm.) 433 x 88 x 112
Weight (lbs.) 7.3
Weight (kg.) 3.3
Installed Rack Height 2U
Shipping Dimensions
Dimensions (WxHxD) (in.) 19.7 x 5.9 x 9.8
Dimensions (WxHxD) (mm.) 500 x 150 x 250
Weight (lbs.) 14.1
Weight (kg.) 6.4
Environmental
Operating Temperature 32 °F – 113 °F (0 °C – 45 °C)
Operating Humidity 0% – 95% non-condensing
Storage Temperature 5 °F – 113 °F (-15 °C – 45 °C)
Maximum Operating Elevation 11,483 ft (3,500 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Certifications
Safety UL 60950, FCC Class A
Environmental RoHS Compliant
Warranty
Product Warranty 3 Years
Ext Warranty WEXT5YR-PDU1B
