CyberPower

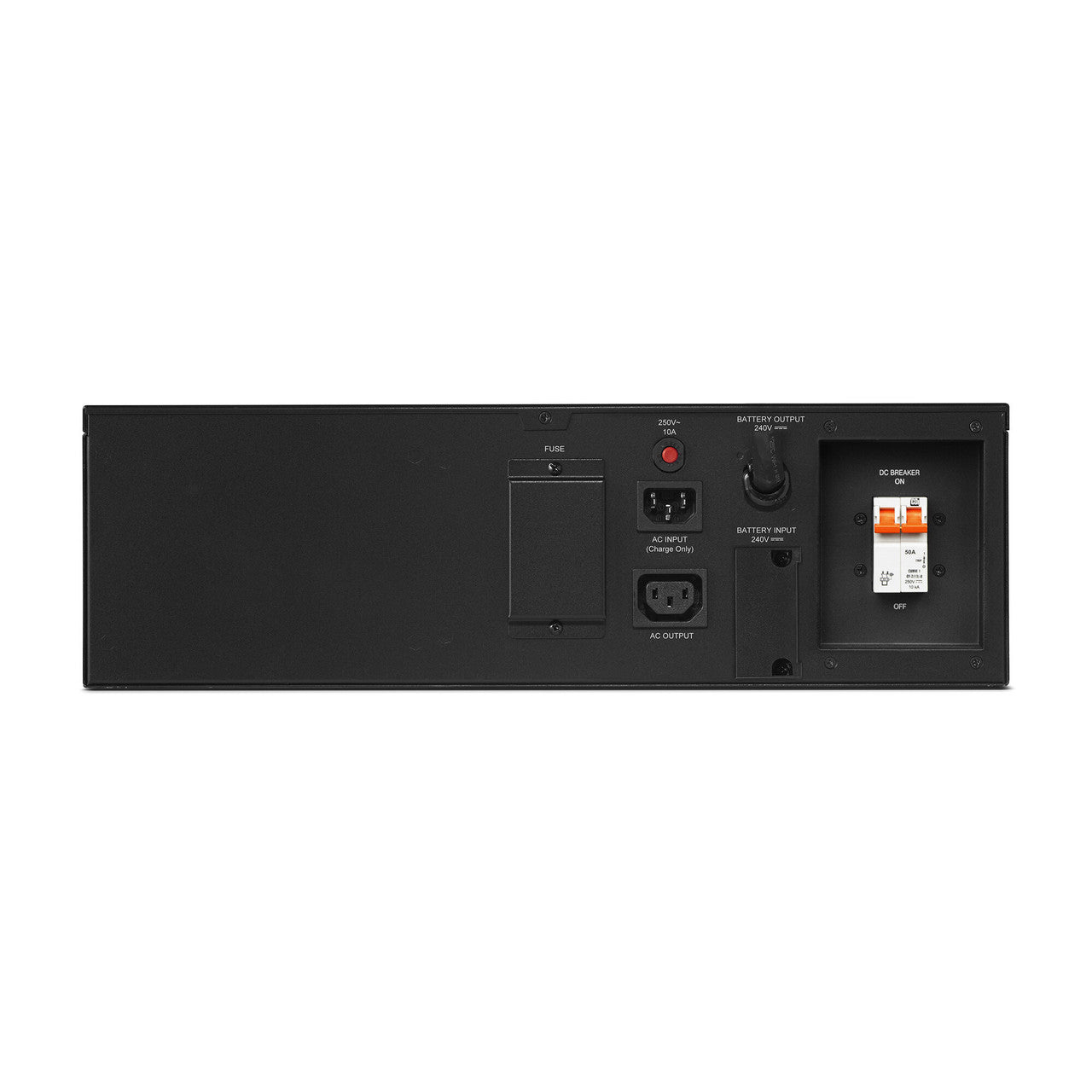

CyberPower BP240V30ART3UTAA TAA Compliant External Battery Module for OL6000RT3UTFTAA
he CyberPower BP240V30ART3UTAA rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Online UPS systems OL6000RT3U, OL6000RT3UTF, OL6000RT3UPDU, OL6000RT3UPDUTF, OL6KRT3UHW, OL8000RT3U, OL8000RT3UTF, OL8000RT3UPDU, OL8000RT3UPDUTF, OL8KRT3UHW, and OL10000RT3U, OL10000RT3UTF, OL10000RT3UPDU, OL10000RT3UPDUTF, and OL10KRT3UHW. This EBM takes 3U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.
Up to ten EBMs can be added to the UPS, and the module's DC plug-and-play power connectors allow for daisy-chaining EBMs to a UPS system. The BP240V30ART3UTAA typically has a UPS charging time of four hours regardless of whether one or ten EBMS are installed. It comes with a three-year warranty.
Extended Battery Module
- Expands runtime and quickly restores full backup power with Fast Charge Technology.
Hot-Swappable Batteries
- Can be replaced without powering down vital equipment.
Fast Charge Technology
- Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.
Smart Battery Management
- Uses a three-cycle charging mode that improves battery life and reduces generated heat.
Plug-and-Play DC Connectors
- Allow for daisy-chaining additional EBMs to a UPS system.
User-Replaceable DC Fuses
- Are located behind an easy-access panel.
Resettable AC Circuit Breaker
- Resets the UPS swiftly in case of an overload.
Rack/Tower Configuration
- Allows for horizontal rack or vertical tower installation.
Three-Year Warranty
- Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What’s In The Box
Battery module, User’s manual, Register card, Rackmount left rail, Rackmount right rail, Power cord, Rackmount ears (Stands) (2) * 1 set, Tie plate * 1 set, Flat head screws: M5X8L (8) * 1 set, Pan head screws: M5X12L (12) * 1 set, Plastic washers (8) * 1 set, Screw hole dust covers (10) * 1 set
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
| General | |
|---|---|
| Voltage | 240V |
| Amperage | 30A |
| Battery | |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/7.2Ah |
| Hot-Swappable | Yes |
| Battery Quantity | 20 |
| User Replaceable | Yes |
| Typical Recharge Time | 4 hours |
| Built-in Charger | Yes |
| Expansion Ready (Daisy-Chain) | Yes – Power plugs for Module and Charger |
| Replacement Battery | (2) RB1270X10 |
| Physical – Battery Module | |
| Dimensions – W×H×D (in) | 17 × 5.25 × 26 inches |
| Dimensions – W×H×D (mm) | 433 × 132 × 660 mm |
| Weight (lbs) | 167.2 lbs |
| Weight (kg) | 76 kg |
| Shipping Dimensions – W×H×D (in) | 23.62 x 14.76 x 35.43 inches |
| Shipping Dimensions – W×H×D (mm) | 600 x 375 x 900 mm |
| Shipping Weight (lbs) | 204.6 lbs |
| Shipping Weight (kg) | 92.8 kg |
| Enclosure Contruction | Steel |
| Mounting Hardware Included | Yes |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 90% (non-condensing) |
| Operating Elevation | 0 – 10,000 ft (0 – 3,000 m) |
| Storage Temperature | -4 – 113 °F (-20 – 45 °C) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Elevation | 0 – 50,000 ft (0 – 15,000 m) |
| Certifications | |
| Safety | UL1778 CSA C22.2 NO.107.3-05 FCC DOC Class A |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
