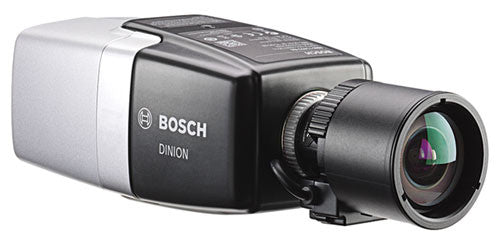

Bosch NBN-65023-B DINION IP starlight 6000 1080p ESSENTIAL
Bosch NBN-65023-B DINION IP starlight 6000 1080p ESSENTIAL

Bosch

Bosch NBN-65023-B DINION IP starlight 6000 1080p ESSENTIAL

Sale price$789.00
SKU: BOS-NBN-65023-B
Quantity:

Contact

DINION IP starlight 6000 1080p ESSENTIAL ANALYTICS 24V

  • Excellent low-light performance
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50%
  • Extended Dynamic Range mode to see details in bright and dark areas simultaneously
  • Auto back focus for fast installation

Key Specifications

Input voltage Power-over-Ethernet (48 VDC nominal) and/or +12 VDC ±10% (auxiliary)
PoE IEEE standard 802.3af (802.3at Type 1) Power level: Class 3
Power Consumption 7.2 W max.
Current draw (PoE) 200 mA max.
Current draw (12 VDC) 600 mA max.
Sensor type 1/2.8‑inch CMOS
Effective pixels 1920 (H) x 1080 (V); 2MP (approx.)
Color 0.0069 lx
Mono 0.0008 lx
High Dynamic Range (10-bit, 3x exposure) 120 dB WDR
Measured according to IEC 62676 Part 5 110 dB WDR
Video compression H.264 (MP); M- JPEG
Streaming Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI)
Camera processing latency <67 ms (max. average at 1080p60)
GOP structure IP, IBP, IBBP
Encoding interval 1 to 50 [60] ips
1080p HD 1920 x 1080 (1080p version only)
Upright mode 1080p 1080 x 1920 (1080p version only)
1.3 MP (5:4) 1280 x 1024 (1080p version only)
720p HD 1280 x 720
