AXIS F34 (0779-004) Surveillance System

AXIS F34 (0779-004) Features

• AXIS F34 Main Unit streams HDTV 720p videos from four AXIS F1004 Sensor Units simultaneously
• Axis’ Zipstream technology
• Storage on two AXIS Surveillance microSDXC™ Card 64 GB
• AXIS Companion for video management and secure remote monitoring

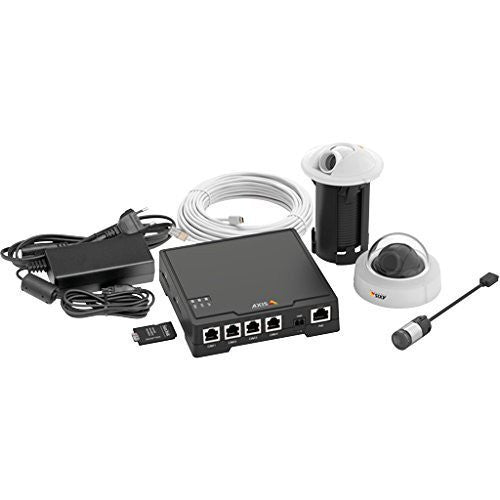

Equipment included for a complete system

• 1x AXIS F34 Main Unit and mains adapter PS-P T-C
• 4x AXIS F1004 Sensor Units and AXIS F7315 cables
• 4x AXIS F8214 Dome Accessory
• 4x AXIS F8224 Recessed Accessory
• 2x AXIS Surveillance microSDXC Card 64 GB

AXIS F1004 (0779-001) Overview

AXIS F34 Surveillance System offers in one box all the components needed to deploy a discreet and cost-efficient solution for multi-view surveillance. The system enables simultaneous streaming of HDTV 720p videos from four different areas through one Ethernet port. The sensor units can be recessed- or surface-mounted using the included accessories. Video is stored locally on SD cards that are specifically engineered to handle continuous overwriting for lasting performance. With Axis’ Zipstream technology, the solution provides efficient video compression, enabling lower bandwidth and storage use. AXIS Companion Line 3.10 software provides secure remote monitoring and video management from a PC or mobile phone. AXIS F34 Surveillance System is a discreet, four-camera surveillance solution ideal for small stores and offices. The necessary hardware for setting up the system is included in the sales unit, while the video management software is free for download on a PC and mobile devices. All the components, from cameras to storage and video management, are fully integrated for optimal installation and use. AXIS F1004, which comprises a fixed lens and image sensor, provides a 102º horizontal field of view and supports 720p resolution. Choose between a surface or recessed mounting accessory. Four units of each are included. AXIS Companion is optimized for use with AXIS F34 Surveillance System. The solution includes support for Axis' Zipstream technology and AXIS Video Motion Detection for maximum retention time. By utilizing these two technologies, the two SD cards - with a total of 128 GB storage - support one to two weeks of video storage. AXIS Companion also utilizes Axis Secure Remote Access for encrypted communication when viewing the system remotely. Connecting to remote cameras can be a challenge, especially when the cameras are located behind routers or firewalls. Axis Secure Remote Access significantly simplifies the installation of remote access to surveillance systems. It is automatically configured during installation, and eliminates the need for manual port-forwarding or router configuration.
