Arecont Vision

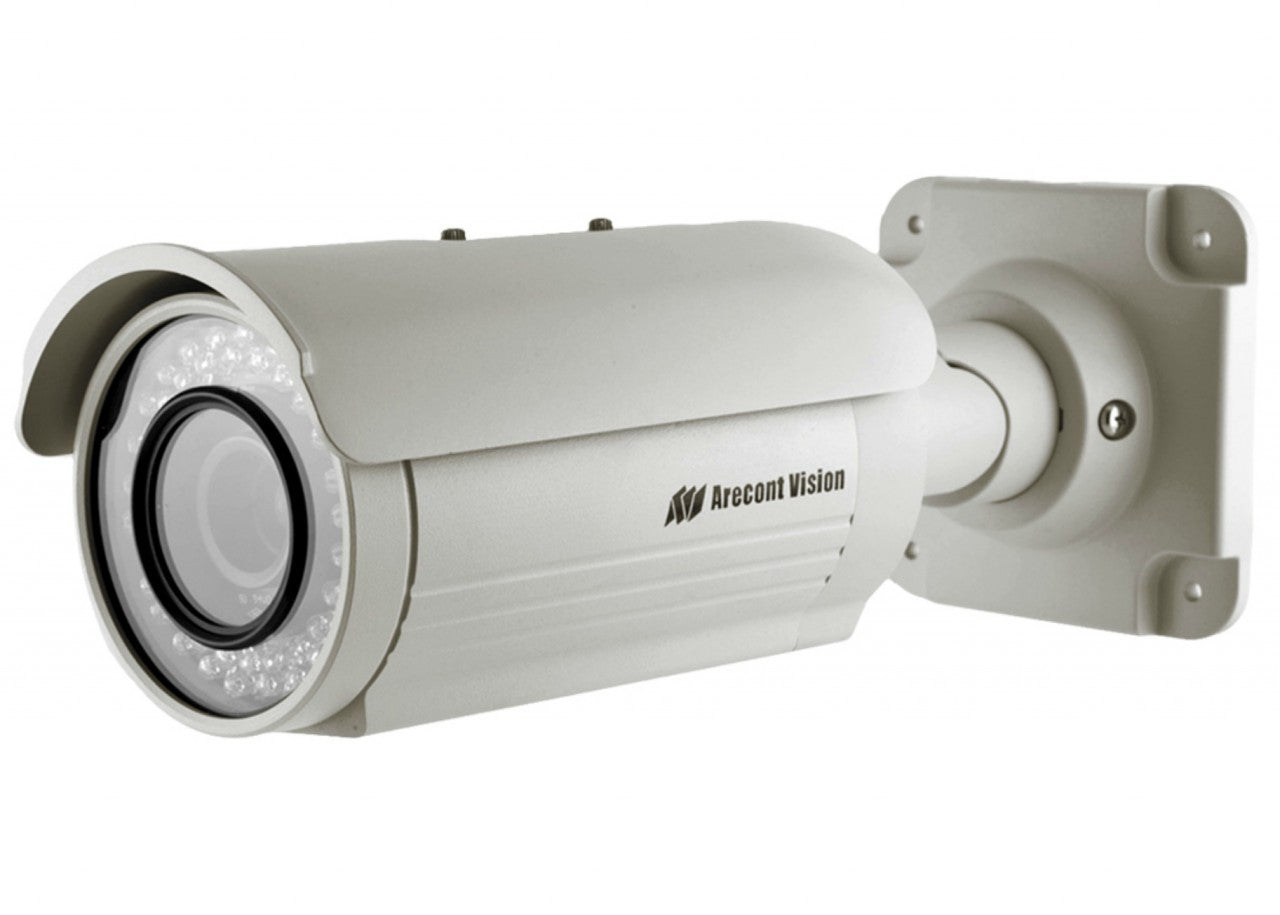

Arecont Vision AV1125DN MegaView™ Camera
Discontinued.
Arecont Vision AV1125DN MegaView™ Camera Feature
- Resolution: 1280(H) x 1024(V)
- Image Sensor: 1.3 MP, 1/2.7" CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 Lux @ F1.4, Day/Night: 0 Lux, IR sensitive
- IR Illuminators: NO, IR version is the AV1125IR
- IR Illuminator Range: N/A
- Lens Type: Megapixel Varifocal Lens
- Focal Length: 4.5-10mm
- Zoom: External Adjustment
- Iris: External Adjustment
- Focus: External Adjustment
- Compression Styles: H.264 (MPEG Part 10) Compression Standard
- Frame Rate: 42 fps
- Image Settings: Auto backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ), Electronic image flip - 180 degree rotation, Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264, Programmable shutter speed to help control motion blur, MoonLight™ mode - extended exposure and proprietary noise cancellation, Programmable resolution, brightness, saturation, gamma, sharpness, tint, Picture-in-Picture: simultaneous delivery of full field of view and zoomed images, Bandwidth & storage savings by running at 1/4 resolution
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: On-camera real-time motion detection with 1024 detection zones
- ONVIF: No
- Security: Privacy mask, Flexible cropping, Auto Exposure (AE) and Gain Control (AGC) >120dB
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Yes
- Housing/Enclosure Rating: IP66 and vandal resistant housing
- Dimensions: 4”H (102mm) x 4.3”W (111mm) x 11.5”D (293mm)
- Weight: 3.74lbs (1.69kg)
- Operating Temperature: -40°C (-40 °F) to + 50°C (122 °F)
- Operating Humidity: 0% to 90% (non-condensing)
- Power: PoE 802.3af for camera, Auxiliary power 12-48V DC, 24V AC for camera, 5.5 Watts maximum
- Warranty: 1 Year
- Notes: IR Illuminator provided in AV1125IR
