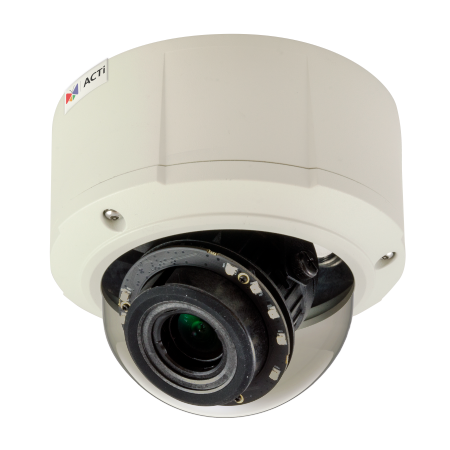

ACTi E815 5MP Zoom Outdoor Dome Network Camera
Quantity:
ACTi E815 Features
- Max Resolution: 2592 x 1944
- Image Sensor: 1/2.3" Progessive Scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- IR Illuminators: Auto Adaptive IR LED
- IR Illuminator Range: 30m
- Lens Type: Board mount
- Focal Length: f3.1-13.3mm / F1.4-4.0
- Zoom: 4.3x optical
- Iris: P-iris
- Focus: Auto
- Field of View: Horizontal Viewing Angle: 64.74°-25.8°
- Compression Styles: H.264 (Baseline / Main / High profile), MJPEG
- Frame Rate: 15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
- WDR Technology: Basic WDR (74 dB)
- Image Settings: White balance: automatic, hold, predefined and manual; Brightness; Contrast; Sharpness; Automatic gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip & mirror
- Privacy Mask: 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: Supports two-way audio via audio-in/audio-out terminal block
- Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Users: N/A
- On-board Storage: Yes, MicroSDHC/MicroSDXC memory card slot (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weatherproof (IP67); Vandal proof (IK10)
- Dimensions: 152.8 mm x 131 mm (6'' x 5.2'')
- Weight: 1.4 kg (3.1 lb)
- Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 2 (IEEE802.3af) / 7.28 W (built-in heater and IR on)
- Warranty: 3 Years
