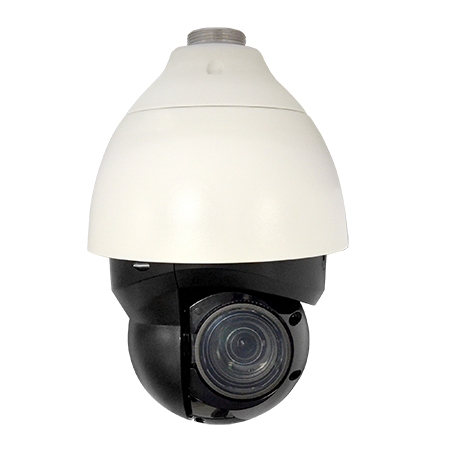

ACTi A952 8MP ALPR Outdoor Speed Dome with D/N, Adaptive IR, Extreme WDR, ELLS, 22x Zoom Lens
Quantity:
- ALPR
- 8 Megapixel with 4K Ultra HD
- Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
- Extreme WDR
- Endless Pan & Tilt
- H.265 Compression
- Built-in Analytics
Device
| Product Type | Speed Dome |
| Maximum Resolution | 8MP |
| Product Application | Face, People and Car Detection, ALPR |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Effective Pixels | 3864(H) X 2180(V) (8.42 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.002 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 100m |
Lens
| Focal Length | Zoom, f6.4-138.5mm |
| Aperture | F1.5 |
| Zoom Ratio | 22x optical zoom, 10x digital zoom |
| Iris | P-Iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 62.6° - 3.2° |
| Vertical Viewing Angle | 36.7° - 1.9° |
PTZ
| Manual Panning / Tilting Speed | 0.1° - 90°/second, 0.1° - 55°/second |
| Preset Panning / Tilting Speed | 300°/second, 300°/second |
| Panning Range | 360° endless |
| Tilting Range | -20°~100° |
| PTZ Control | PTZ Control, Speed Control, Auto scan, 256 preset points |
Video
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 3840 x 2160 (4K Ultra HD) 30 fps at 3200 x 1800 30 fps at 1920 x 1080 30 fps at 1280 x 1024 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 720 x 480 30 fps at 640 x 480 30 fps at 352 x 240 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous quad streams |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Saturation, Backlight compensation (BLC), Digital Image Stabilizer (DIS, EIS) |
| Digital Noise Reduction | DNR |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| Built-in Analytics | Deep Learning : Object Line Counting, Object Area Counting, Face Detection, Face Recognition, Face Tracking, People Detection, People Tracking, Object Based Motion Detection, Tampering Detection, Intrusion Detection (Forbidden Area Detection), Missing Object Detection, Unattended Object Detection, Object Loitering Detection, Incorrect Direction Detection, Stopped vehicle detection, License Plate Detection |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) (90⁰, 180⁰, 270⁰) |
Audio
| Audio Type | 2-way, Line-in, Line-out |
Network
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
Event
| Event Trigger | Video motion detection, External device through digital input, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
System
| Watchdog | Support |
Integration
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | Google Chrome, Firefox |
| Supported Countries | Japan / Taiwan |
Interface
| Audio Interface | 1/1, Terminal block |
| Analog Video Output | 1 x BNC connector |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 4/2 (Terminal block) |
| Operating Button | Reset Button |
General
| Power Source | AC 24V, High PoE (IEEE802.3bt, Type 3, class 6) 60W |
| Power Consumption | High PoE: Max. 51W (by using all 4 pairs of standard Cat 5e or higher Ethernet cable), AC: Max. 59.05W, 87.12VA |
| Weight | 3920g (8.64lb) |
| Dimensions | (Ø x H): 207mm x 300mm (8.15" x 11.81") |
| Environmental Casing | Weatherproof (IP66) |
| Bundled Accessories | High PoE injector |
| Heater | Yes |
| Operating Temperature | -40°C ~50°C (-40°F ~ 122°F) heater on |
| Operating Humidity | 10% - 90% RH |
| Approvals | CE Class A, FCC Class A, IP66 |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s) (1 year in continuous motion). For extended warranty offering, see http://www.acti.com/support/warranty |
Dimension Diagram
Unit: mm [inch]
