Discontinued - Recommended Replacement 1A404XBNR

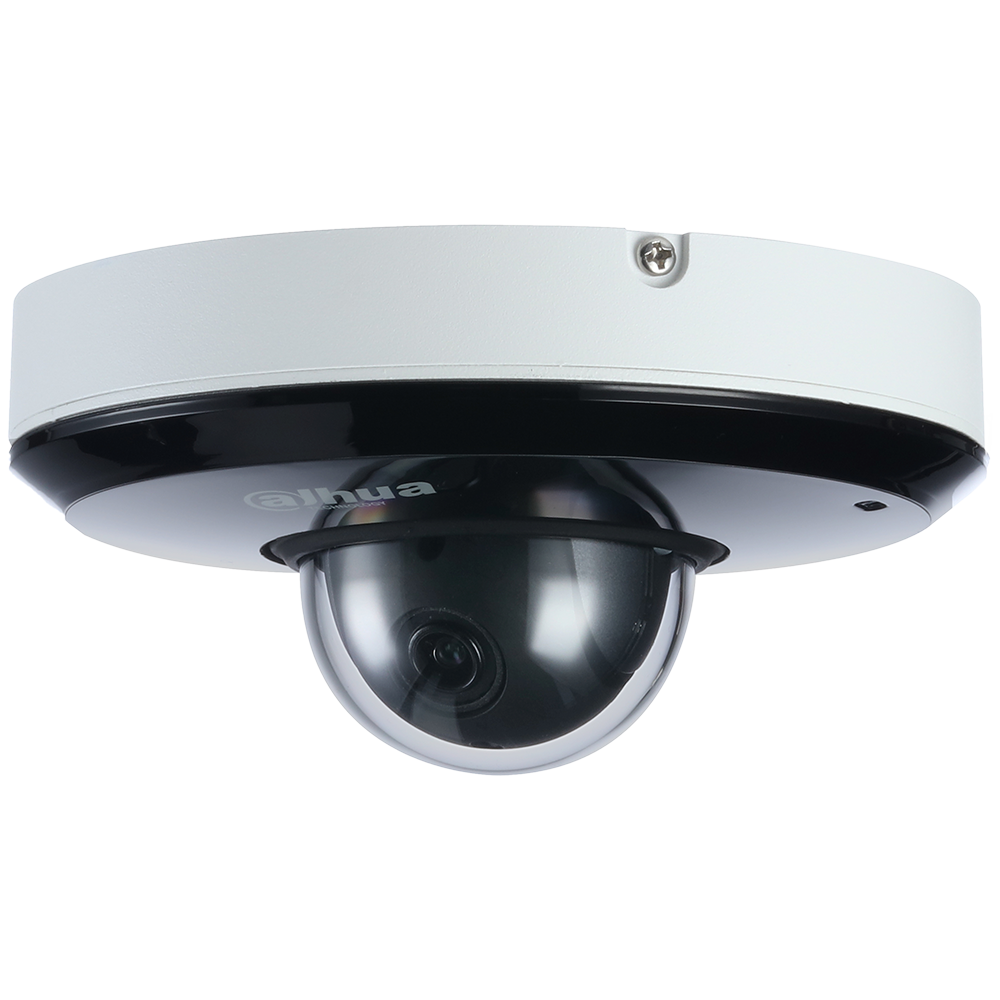

Dahua 1A203TNI Features
Camera
- Image Sensor 1/2.8-in. STARVIS™ CMOS
- Effective Pixels 1920(H) x 1080(V), 2 MP
- RAM/ROM 512 MB/128 MB
- Scanning System Progressive
- Electronic Shutter Speed 1/1 s to 1/30,000 s
- Minimum Illumination Color: 0.005 lux at F1.8, 0 lux at F1.8 (IR on)
- S/N Ratio More than 50 dB
- IR Distance Distance up to 15 m (49.20 ft)
- IR On/Off Control Auto, Manual
- IR LEDs Three (3)
Lens
- Focal Length 2.7 mm to 8.1 mm
- Max. Aperture F1.8
- Angle of View Horizontal: 105.6° to 35.2°
- Optical Zoom 3x
- Focus Control Auto, Manual
- Close Focus Distance 100 mm to 1000 mm (3.94 in. to 39.37 in.)
PTZ
- Pan: 0° to 355°
- Tilt: 5° to 90°
- Manual Control Speed Pan: 0.1° to 70° /s; Tilt: 0.1° to 30° /s
- Preset Speed Pan: 80° /s; Tilt: 40° /s
- Presets 300
- PTZ Mode 8 Tours
- Speed Setup Human-oriented focal Length/speed adaptation
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset/Tour if there is no command in the specified period
Video
- Compression Smart H.265+, H.265, Smart H.264+, H.264
- Streaming Capability Three (3) Streams
- Resolution 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
- Frame Rate Main Stream: 1080p or 720p at 30 fps, Sub Stream 1: D1 or CIF at 30 fps, Sub Stream 2: 720p, D1, or CIF at 30 fps
- Bit Rate Control CBR, VBR
- Bit Rate H.265/H.264: 448 K to 8192 Kbps
- Day/Night Auto (ICR), Color, B/W
- Backlight Compensation BLC, HLC, True WDR (120 dB)
- White Balance Auto, ATW, Indoor, Outdoor, Manual
- Gain Control Auto, Manual
- Noise Reduction Ultra DNR (2D/3D)
- Advanced Features Motion Detection, Region of Interest, Defog,
- Digital Zoom 16x
- Flip 180°
- Privacy Masking Up to 24 areas
Audio
- Compression G.711a, G.711mu, G.726, AAC
- Built-in Microphone
Network
- Ethernet RJ45 (10/100 Base-T)
- Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast, Multicast
- Max. User Access 20 Users
- Edge Storage Network Attached Storage (NAS), Local PC for Instant Recording,
- Micro SD Card Slot, maximum 256 GB
- Web Viewer IE, Chrome, Firefox, Safari
- Management Software SmartPSS, DSS
- Mobile Operating System IOS, Android
Certifications
- Safety UL60950-1+CAN/CSA C22.2, No.60950-1
- Electromagnetic Compatibility (EMC) EN55032, EN55024, EN50130-4, FCC Part 15 Subpart B, ANSI C63.4- 2014
Interface
- Audio Input: One (1) Channel plus a Built-in Microphone
- Output: One (1) Channel
Electrical
- Power Supply 12 VDC, 1.5 A or PoE (IEEE 802.3af)
- Power Consumption 7.8 W, 10.5 W with IR on
Environmental
- Operating Temperature –30° C to 60° C (–22° F to +140° F), Less than 95% RH
- Ingress Protection IP66
- Vandal Resistance IK08
Construction
- Casing Metal
- Dimensions ø128.0 mm x 63.0 mm (ø5.04 in. x 2.48 in.)
- Net Weight 0.49 kg (1.08 lb)
- Gross Weight 0.73 kg (1.60 lb)
Intelligence
- IVS triggers an alarm and takes a defined action for the following events:
- Standard Features
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- Premium Features
- Motion An object moves through any part of the scene.
- Tripwire A target crosses a user-defined line.
- Intrusion A target enters or exits a defined perimeter.
- Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
- Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
- Advanced Features
- Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
