Vivotek IP816A-LPC
Vivotek IP816A-LPC-Kit (includes IP816A-LPC)
Vivotek IP816A-LPC Part numbers
Network Camera Store is an Authorized Vivotek Reseller
Remote Back Focus
WDR Pro technology
MicroSD/SDHC/SDXC card slot

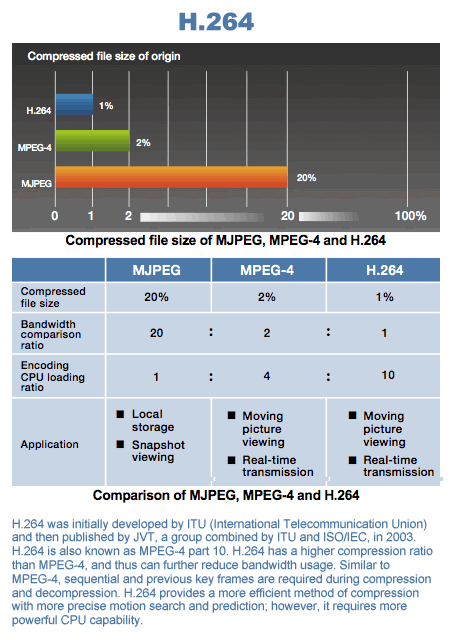

H.264 compression

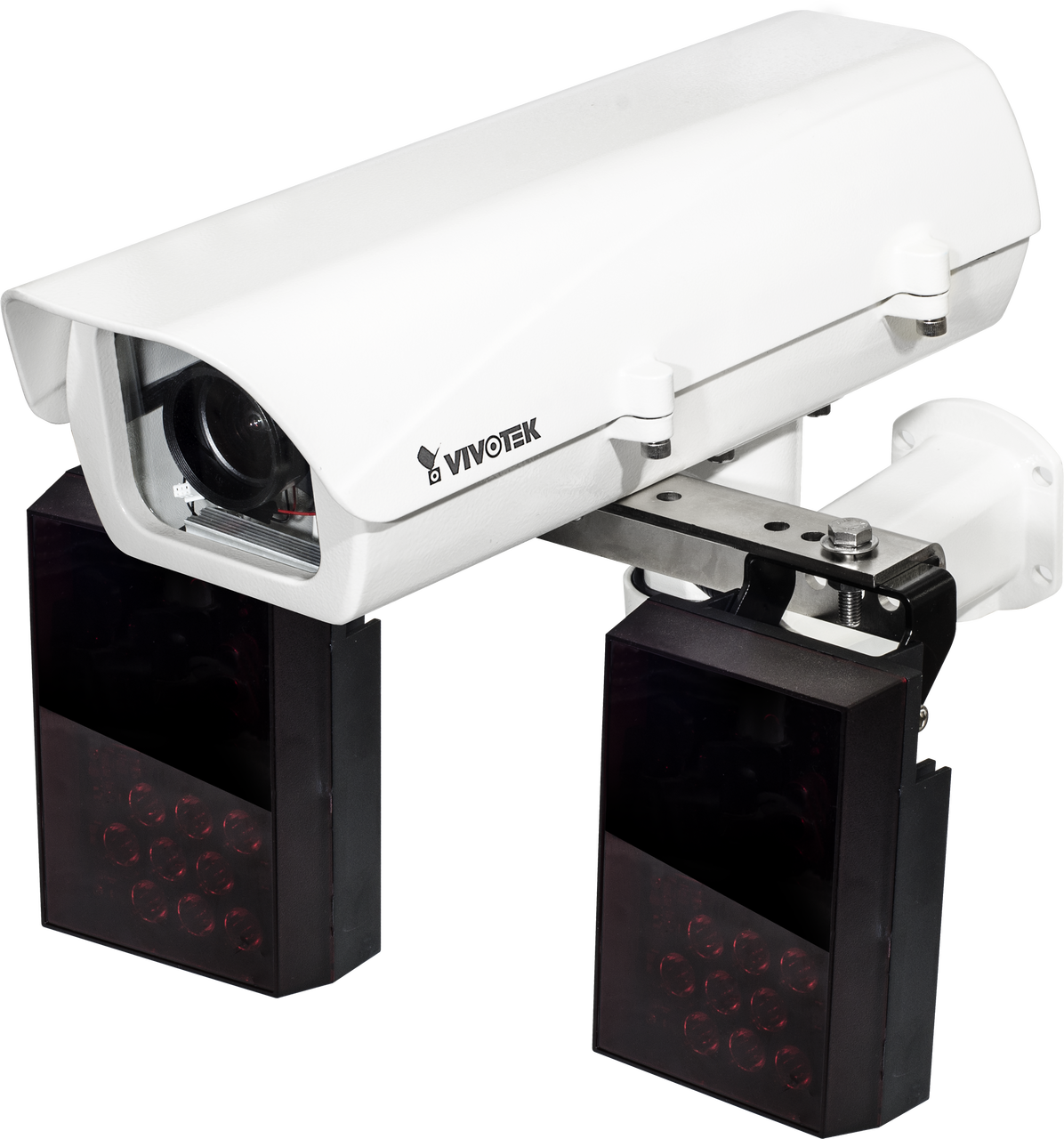

Vivotek IP816A-LPC 2MP License Plate Capture Remote Back Focus Box Network Camera

Vivotek

Vivotek IP816A-LPC 2MP License Plate Capture Remote Back Focus Box Network Camera

Sale price$0.00
Discontinued
Lens Size:Default Title

Contact

The 12-40mm lens option has been discontinued & replaced by the IP9165-LPC

Vivotek IP816A-LPC Features

  • LPR Speed Range: up to 60 mph (90 kph)
  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/1.9" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.095Lux (1/30sec, F1.4), 0.002Lux (2sec, F1.4), B/W : 0Lux (IR LED on)

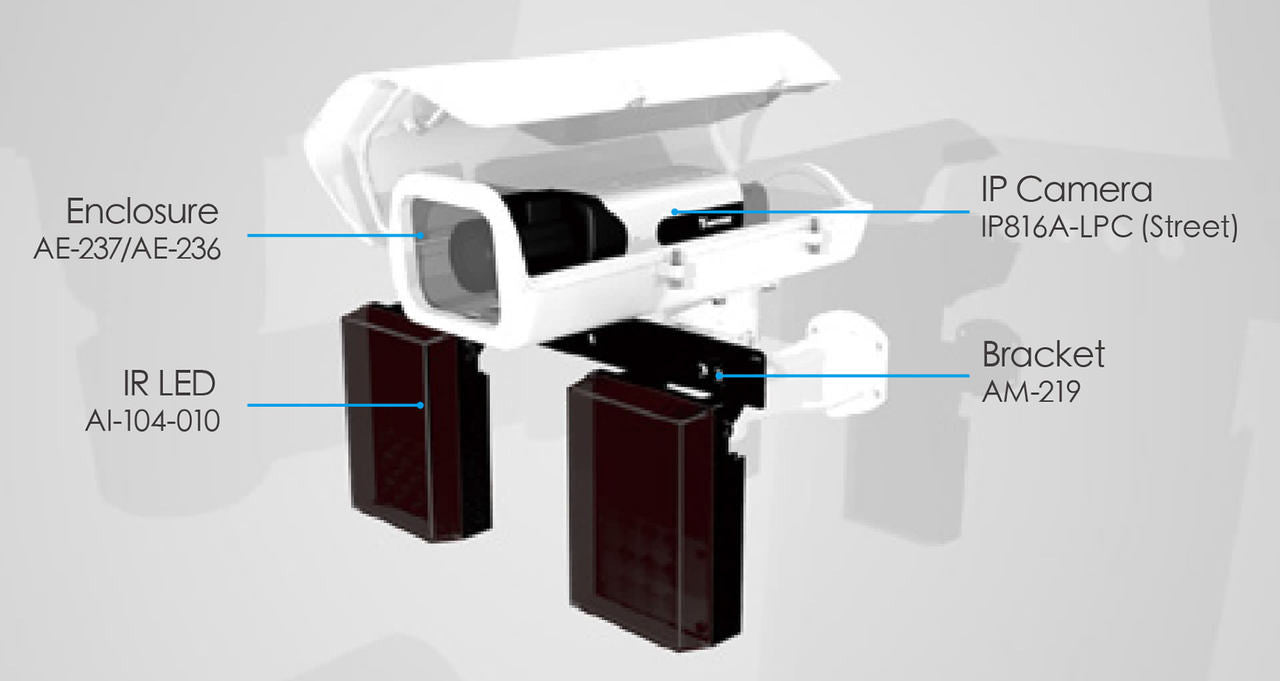

  • IR Illuminators: No, available separately or as part of IP816A-LPC-Kit
  • IR Illuminator Range: NA
  • Lens Type: Vari-focal
  • Focal Length: f = 12 ~ 40 mm / F2.36 ~ F2.44
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
  • Iris: P-iris

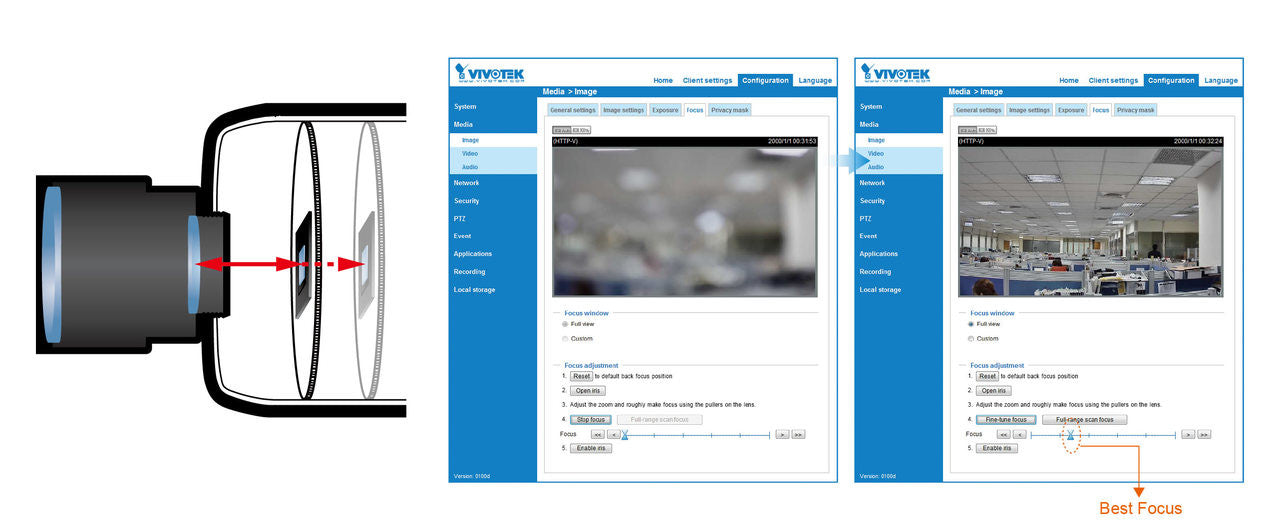

  • Focus: RBF (Remote Back Focus)
  • Field of View: 10.2° ~ 30° (Horizontal), 8° ~ 22° (Vertical), 12° ~ 38° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30fps @ 1920x1080; 60fps @ 1920x1080 (In one-stream mode only) (In both compression mode)

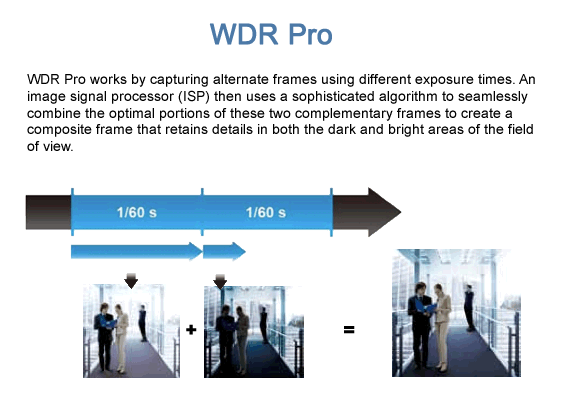

  • WDR Technology: WDR Pro (Default: Off)
  • Image Settings: Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, scheduled profile settings 3D noise reduction, EIS, video rotation, snapshot focus, scene mode
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-way audio (full duplex) via External microphone input / Audio output
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, IR Status, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients

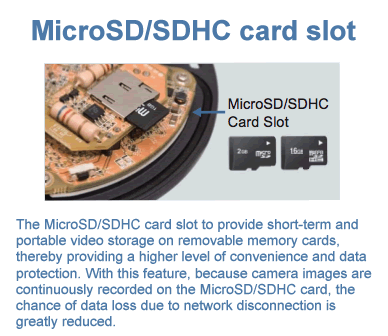

  • On-board Storage: SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 230.2 mm (D) x 70 mm (W) x 63.5 mm (H)
  • Weight: 623g
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Operating Humidity: N/A
  • Power/Consumption: DC12V/AC24V IEEE 802.3af PoE / DC Max. 9.2W, AC Max. 15.4W, PoE Max.12.2W
  • Warranty: 3 Years
  • What's Included: Camera, Quick installation guide, warranty card, lens, camera stand, screw pack, CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

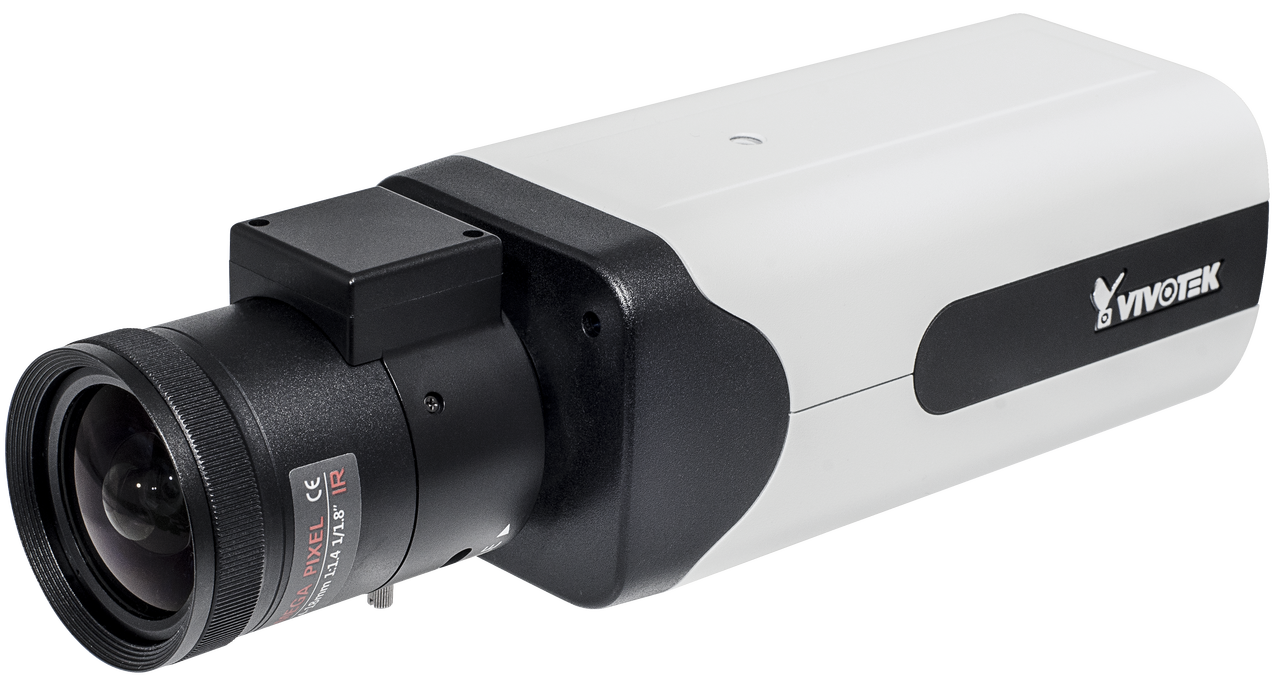

Vivotek IP816A-LPC Overview

The VIVOTEK IP816A-LPC is a professional box network camera offering up to 60 fps @ 2-Megapixel resolution with superb image quality, even in the darkest hours of the night. Featuring the improved Wide Dynamic Range Technology, WDR Pro, the IP816A-LPC provides superior visibility in high-contrast lighting environments with 2-shutter capture method. When combined with 3D Noise Reduction Technology, users can enjoy an increased level of image detail in extremely dark environments without consuming or wasting unreasonbly high bandwidth. This camera is included as part of the IP816A-LPC-Kit.
