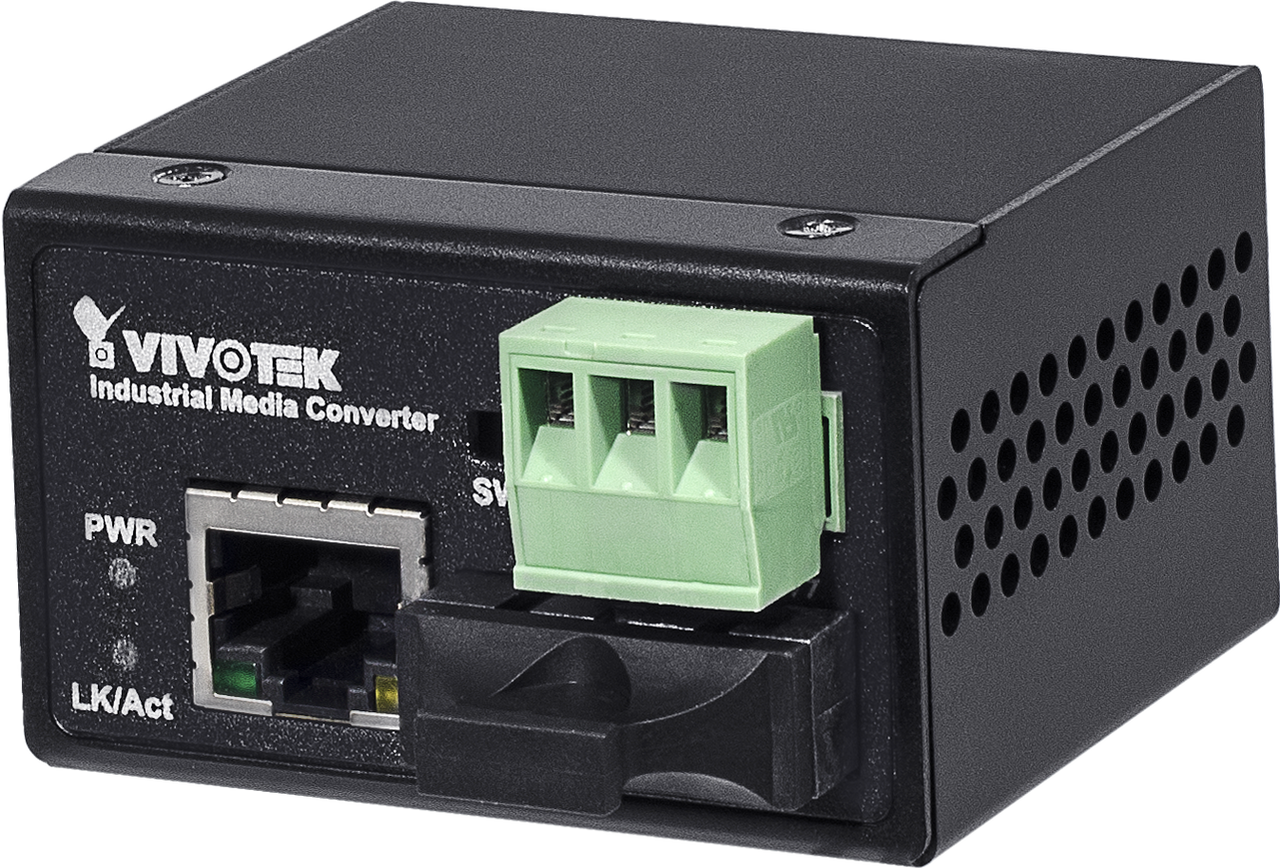

Vivotek AW-IHS-0200 Multi Mode 2KM Industrial Media Converter

Vivotek

Vivotek AW-IHS-0200 Multi Mode 2KM Industrial Media Converter

Sale price$152.28
SKU: AW-IHS-0200
Quantity:

Contact

Vivotek AW-IHS-0200 Features

Hardware Specifications

  • Ethernet Ports: 1 x Fast Ethernet 10/100Mbps (RJ45)
  • PoE Ports: 0
  • Resolution: Megapixel/D1/VGA
  • Compression: MJPEG/MPEG-4/H.264/H.265
  • Compatible Cameras: N/A
  • Power Requirement: 18V-36VAC or 12V-60VDC Power Input, Removable Terminal Block
  • Power Consumption: 2W
  • LED Display: Power, LAN, Speed
  • Dimensions: 59 (L) x 49 (W) x 36 (H) mm
  • Weight: 0.08 kg (0.17 lbs)
  • Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F) with 5~95% (Non-condensing)
    What's Included:
    QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
  • Warranty: 2 Years

Power over Ethernet Specifications

  • Filtering/Forwarding Rates: 10Mbps, 100Mbps
  • Switch Throughput: N/A
  • Per Port PoE Power Output: N/A
  • Total PoE Power Budget: N/A
  • Transmission Method: Store & Forward
  • PoE Power Supply Type: N/A
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
  • Standards Compliance: IEEE 802.3 10-BASE-T Ethernet, IEEE 802.3u 100-BASE-TX Fast Ethernet, IEEE 802.3x Flow Control
