Planet PoE-172

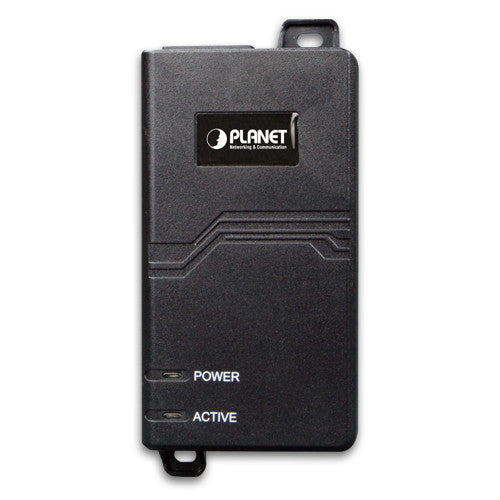

Planet PoE-172 60W Ultra PoE Gigabit Injector

Planet

Planet PoE-172 60W Ultra PoE Gigabit Injector

Sale price$66.00
SKU: PoE-172

Usually Ships in 10 - 12 days

Quantity:

Contact

Planet PoE-172 Features

Interface

  • 2 x RJ45 interfaces
    - 1-port 10/100/1000Mbps Data + Power output
    - 1-port 10/100/1000Mbps Data input
  • 1 x AC 100-240V input power socket

Power over Ethernet

  • Ultra Power over Ethernet PSE
  • Up to 60 watts of power on 4-pair UTP
  • Backward compatible with IEEE 802.3at/af PD device
  • Auto-detection of PoE IEEE 802.3at/af equipment and devices to check whether there’s any damage done via incorrect installation
  • Remote power feeding up to 100m

Hardware

  • All-in-one compact size design
  • Internal power supply
  • LED indicators for Power LED and Active LED (PoE ready/in-use)

Planet PoE-172 Overview

PLANET POE-172 Ultra Power over Ethernet Injector provides a maximum of 60-watt power and high-speed Ethernet data connection anywhere in your network infrastructure. PLANET single port Ultra Power over Ethernet solution contains the following products:

 ■ POE-172: 60-watt Ultra Power over Ethernet Injector
 ■ POE-171S: 12V/19V/24V DC Power over Ethernet Splitter

Quick and Easy Gigabit Ultra Power PoE Network Deployment
The POE-172 is a Single-Port, Ultra Power over Ethernet Injector with a maximum of 60 watts of power output over Ethernet cables. It is designed specifically to meet the demand for growing higher power required network equipment such as:

 ■ PTZ Speed Dome
 ■ AIO (All-in-One) touch PC
 ■ Remote digital signage display
 ■ Other network devices that need higher power to work normally

The POE-172 delivers the Ethernet digital data with 56V DC power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter, the POE-171S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.

60 watts of Power over 4-pair UTP
The POE-172 and POE-171S Ultra PoE solutions use the same cabling standard such as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.
